    X-LAB

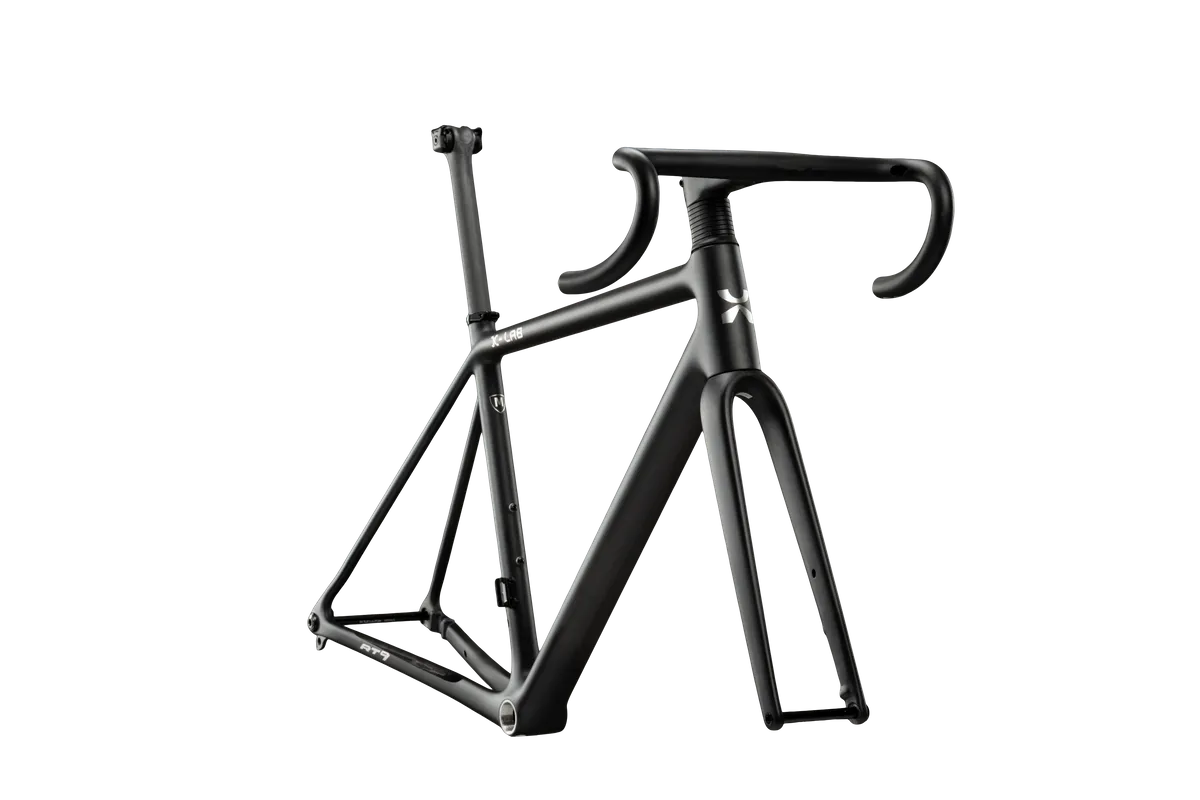

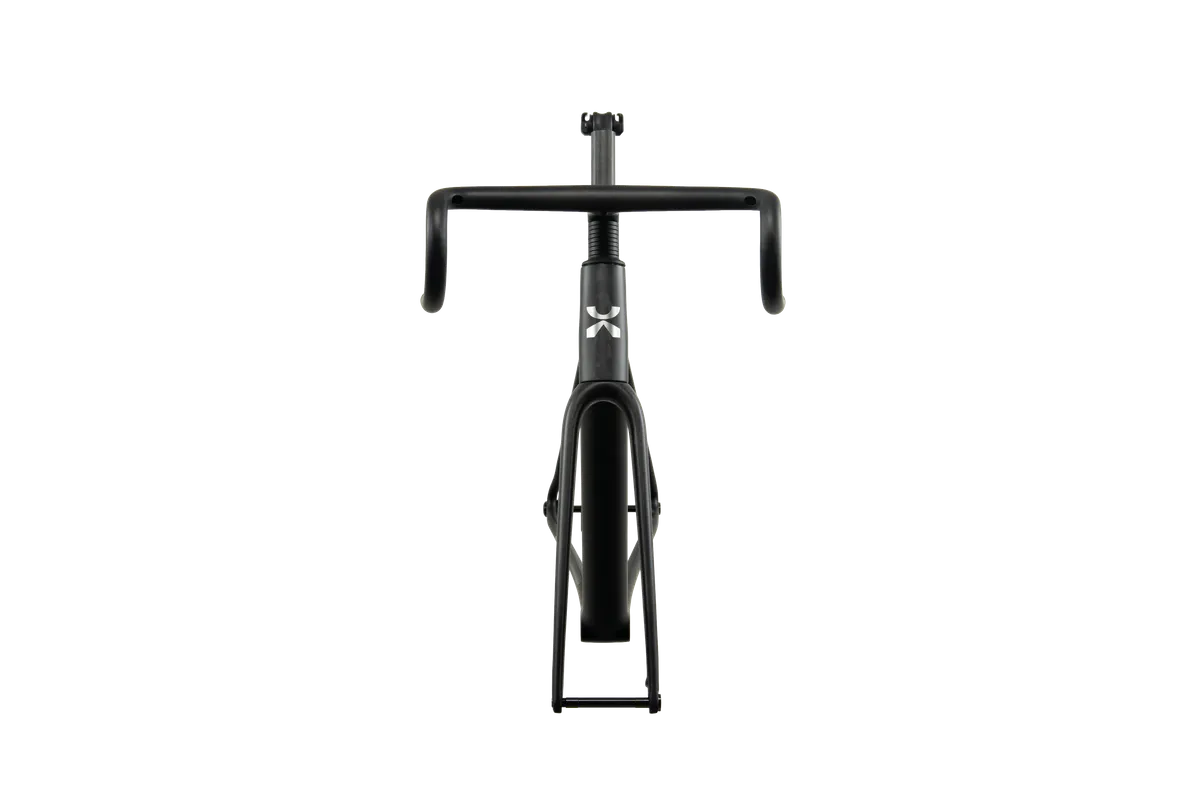

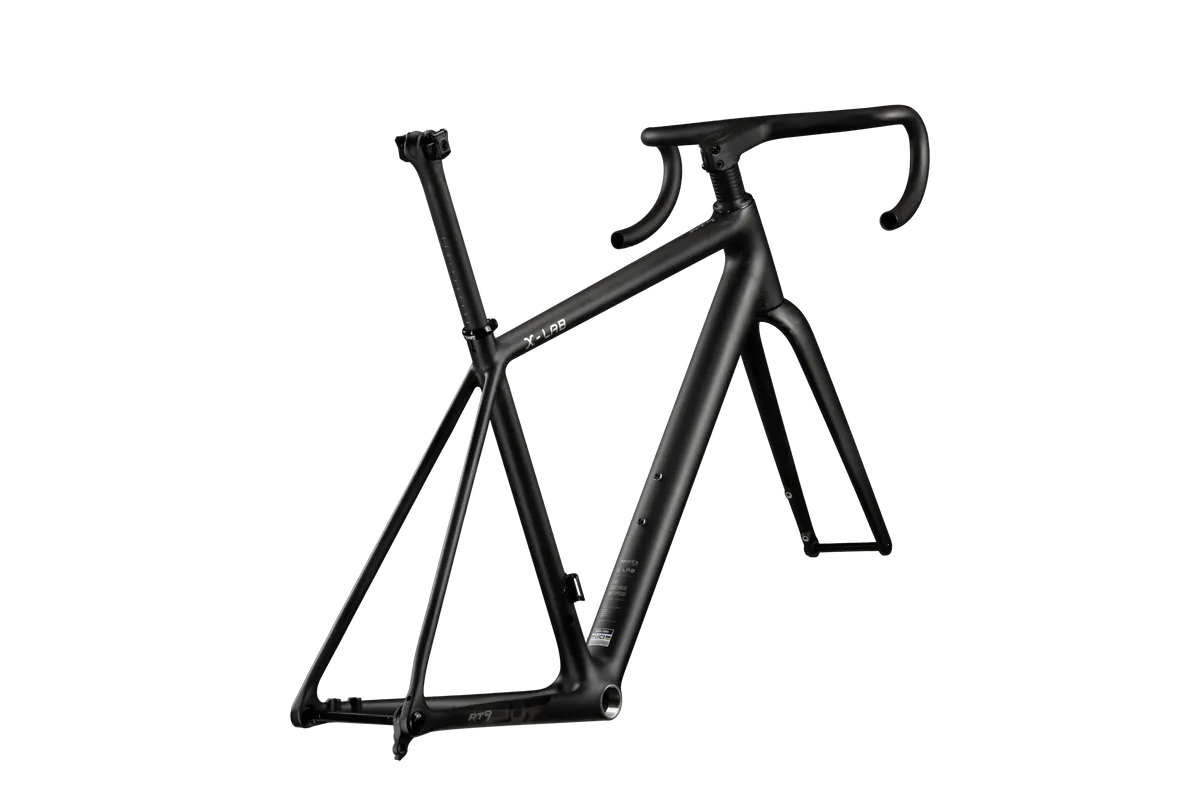

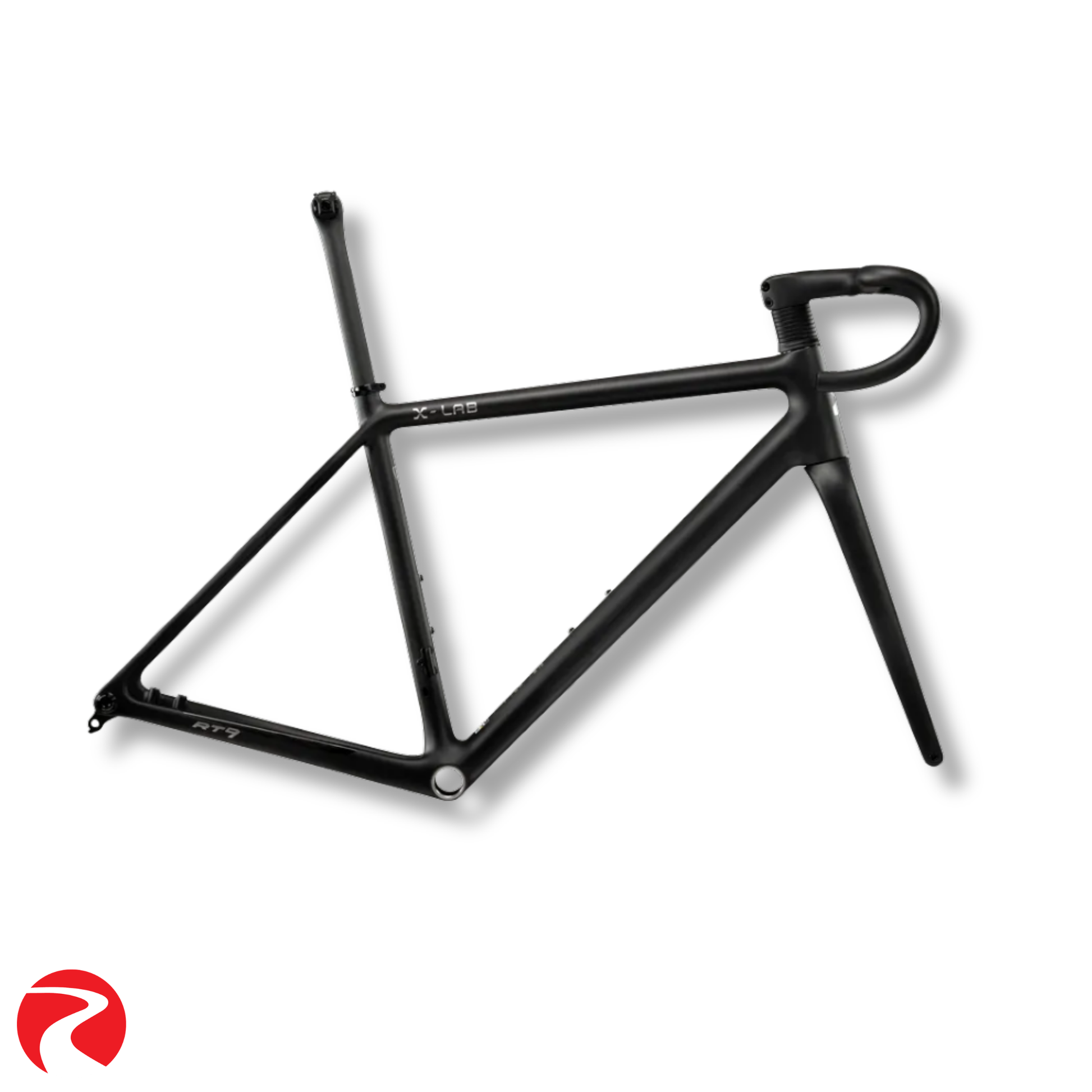

    X Lab Rt9 Frameset Shadowbox

    X Lab Rt9 Frameset Shadowbox

    $4,799.00 NZD
    $4,799.00 NZD $4,799.00 NZD
    Rouleur Online Price Sold out
    Taxes included. Shipping calculated at checkout.
    Variant

    Low stock

    • NZ Based
      NZ‑Based Support – Talk to real riders who understand your needs.
    • Secure Payments
      Secure Payments – Shop Pay, Google Pay, Apple Pay & major cards accepted.
    • Warranty Protection
      Warranty Protection – All bikes backed by manufacturer warranties.
    • Easy Returns
      Easy Returns – Hassle‑free returns on unused gear.

    The RT9 is built for climbing, with an ultra-light 540g carbon frame. Its stiffness and responsiveness ensure every pedal stroke counts. A pure choice for competitive climbers.

    Frame Size XS S M L XL
    A Seat Tube Length (mm) 470 495 515 540 565
    B Top Tube Length (mm) 504 523 540 559 579
    C Head Tube Length (mm) 105 118 130 148 171
    D Seat Tube Angle (deg) 75 75 74 74 73
    E Head Tube Angle (deg) 71 72 73 73 73
    F Chainstay Length (mm) 410 410 410 410 410
    G Wheelbase (mm) 970 978 982 992 1007
    H Fork Rake/Offset (mm) 48 48 43 43 43
    I BB Drop (mm) 72 72 70 70 70
    J Stack (mm) 505 520 534 553 575
    K Reach (mm) 371 379 387 395 405
    L Front Center (mm) 575 582 583 592 607
    Trail (mm) 67 63 64 61 59
    Components Size XS S M L XL
    Stem 90 90 100 100 120
    Handlebar 360 360 380 380 400
    Seat Post 300 300 300 300 300
