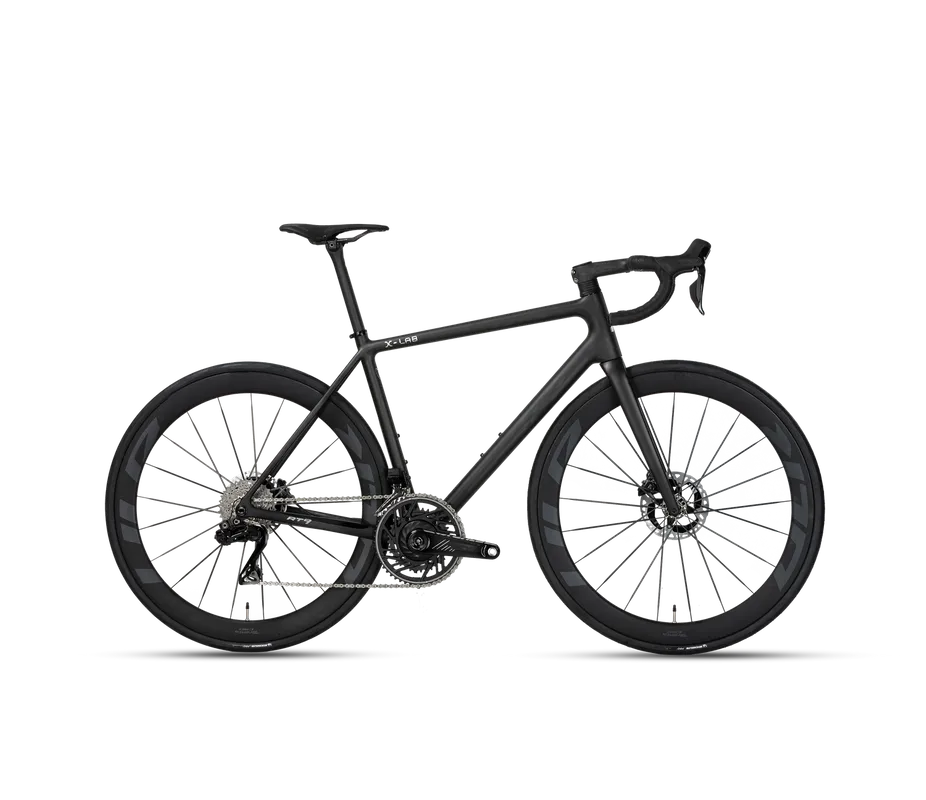

X-LAB RT9 Dura Ace Di2 Shadowbox Black

X-LAB RT9 Dura Ace Di2 Shadowbox Black

$12,399.90 NZD
$12,399.90 NZD $12,399.90 NZD
Rouleur Online Price Sold out
Taxes included. Shipping calculated at checkout.
Colour
Size

Out of stock

  • NZ Based
    NZ‑Based Support – Talk to real riders who understand your needs.
  • Secure Payments
    Secure Payments – Shop Pay, Google Pay, Apple Pay & major cards accepted.
  • Warranty Protection
    Warranty Protection – All bikes backed by manufacturer warranties.
  • Easy Returns
    Easy Returns – Hassle‑free returns on unused gear.














































































Model RT9
Frame XDS Carbon Frame, Toray T1100, UDH Compatible
Fork XDS Carbon Fork, 100x12mm Thru-axle
Stem Branta Carbon Integrated
Handlebar
Seatpost XDS Carbon Seatpost, 27.2mm
Rear Derailleur Shimano Dura-Ace RD-R9250
Front Derailleur Shimano Dura-Ace FD-R9250
Shifters Shimano Dura-Ace ST-R9270
Brakes Shimano Dura-Ace BR-R9270
Cassette Shimano Dura-Ace CS-R9200, 11-34T
Crankset Branta Carbon Power Meter Crankset, 52-36T, 29mm Aluminum Spindle, Apple Find My Anti-Theft Technology
Bottom Bracket BSA 29mm
Rotors Shimano RT-MT900, Front: 160mm / Rear: 140mm
Chain Shimano CN-M9100
Wheelset Branta C50 ULR, Carbon Rims & Spokes, Ceramic Bearings
Tires Michelin Pro 5 700x28C
Saddle Selle Italia SLR Boost, Carbon Rails
Weight 6.15KG (Size L)



















































































































Size XS S M L
A Seat Tube Length (mm) 430 460 480 500
B Top Tube Length (mm) 498 520 540 563
C Head Tube Length (mm) 110 120 137 157
D Seat Tube Angle (deg) 75 74 74 74
E Head Tube Angle (deg) 71 72 73 74
F Chainstay Length (mm) 410 410 410 410
G Wheelbase (mm) 973 977 978 992
H Fork Rake/Offset (mm) 50 50 44 44
I BB Drop (mm) 74 74 72 72
J Stack (mm) 510 525 543 567
K Reach (mm) 362 372 384 396
L Front Center (mm) 574 578 578 592
Trail (mm) 68 61 59 56











































Components XS S M L
Stem 80 100 100 120
Handlebar 360 380 380 400
Crankset 160 160 165 165
Seat Post 300 300 350 350



















Size XS S M L
Recommended Rider Height 148 cm – 158 cm
4'10" - 5'2"		 158 cm – 168 cm
5'2" - 5'6"		 168 cm – 176 cm
5'6" - 5'9"		 176 cm – 183 cm
5'9" - 6'0"
