X-LAB

X Lab Rs7 105 12sp Angel Wing White

X Lab Rs7 105 12sp Angel Wing White

$3,999.00 NZD
$3,999.00 NZD $3,999.00 NZD
Rouleur Online Price Sold out
Taxes included. Shipping calculated at checkout.
Variant

In stock

  • NZ Based
    NZ‑Based Support – Talk to real riders who understand your needs.
  • Secure Payments
    Secure Payments – Shop Pay, Google Pay, Apple Pay & major cards accepted.
  • Warranty Protection
    Warranty Protection – All bikes backed by manufacturer warranties.
  • Easy Returns
    Easy Returns – Hassle‑free returns on unused gear.

Model RS7
Frame XDS Carbon Frame
Fork XDS Carbon Fork, 100x12mm Thru-axle
Stem Branta Carbon Integrated
Handlebar
Seatpost XDS Carbon Seatpost, Aero Shape
Rear Derailleur Shimano 105 RD-R7100
Front Derailleur Shimano 105 FD-R7100
Shifter Shimano 105 ST-R7120
Brakes Shimano 105 BR-R7170
Cassette CS-R9012, 12-Speed, 11-34T
Crankset Branta Alloy Powermeter Crankset, 52-36T, 24mm Steel Spindle
BB BSA 24mm
Rotors Shimano SM-RT70, F:160mm R:160mm
Chain SUMC SX12
Wheelset Branta C45 Base, Steel Spokes
Tires Branta R332, 700x32C, 60TPI
Saddle Branta R302, Steel Rails
Weight 8.49KG (Size L)

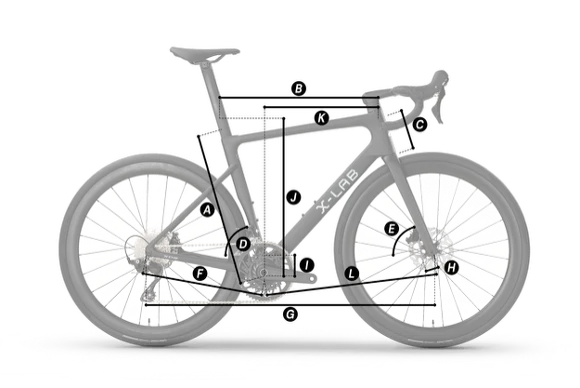

Frame Size XS S M L XL XXL
A Seat Tube Length (mm) 420 440 470 490 510 530
B Top Tube Length (mm) 500 515 531 550 570 590
C Head Tube Length (mm) 130 135 145 160 175 200
D Seat Tube Angle (deg) 75 75 75 74 74 74
E Head Tube Angle (deg) 70 72 73 73 73 74
F Chainstay Length (mm) 410 410 410 410 410 410
G Wheelbase (mm) 973 976 982 993 1006 1016
H Fork Rake/Offset (mm) 55 55 45 45 45 45
I BB Drop (mm) 72 72 70 70 68 68
J Stack (mm) 526 535 546 561 574 602
K Reach (mm) 360 370 380 390 400 412
L Front Center (mm) 574 577 581 593 606 616
O Stand-over Height (mm) 737 752 772 789 807 830
Trail (mm) 65 58 62 60 58 52
Components XS S M L XL XXL
Stem 90 100 110 110 120 120
Handlebar 360 360 380 380 400 400
Crankset 165 165 170 170 172.5 172.5
Seat Post 300 300 350 350 400 400
