White Industries

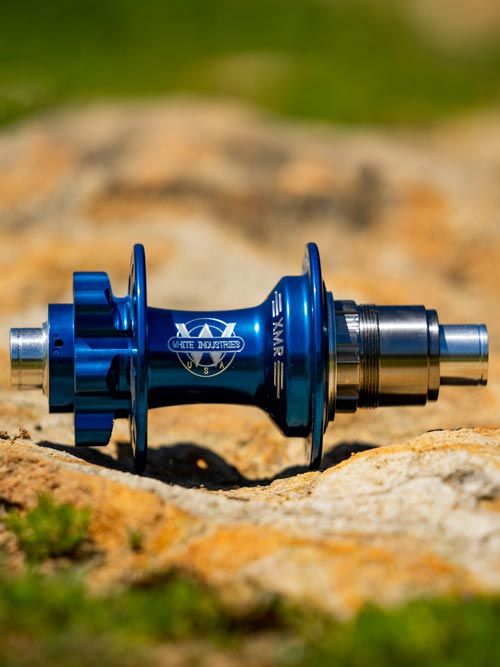

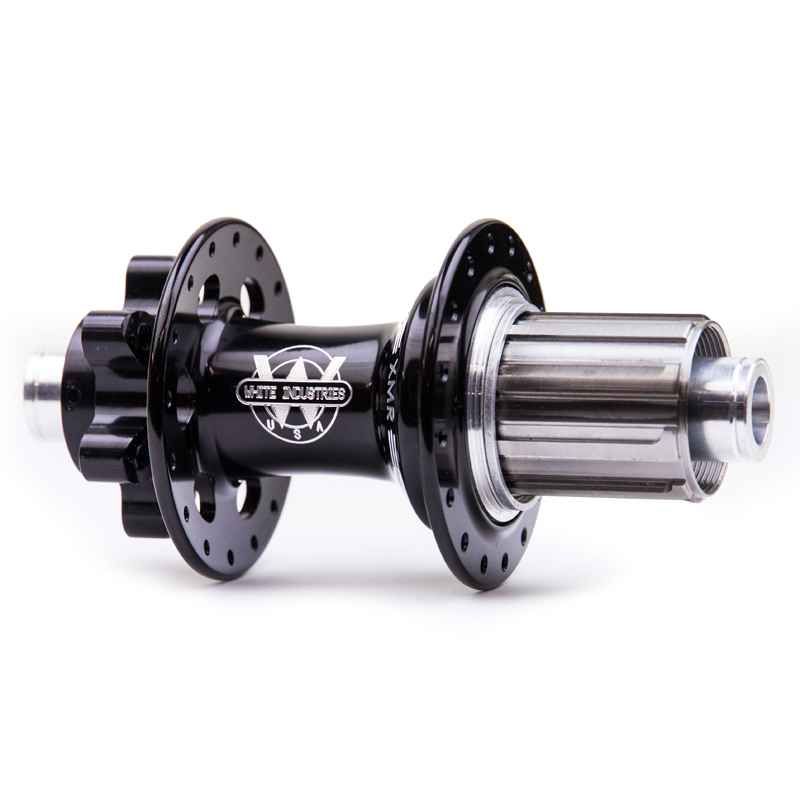

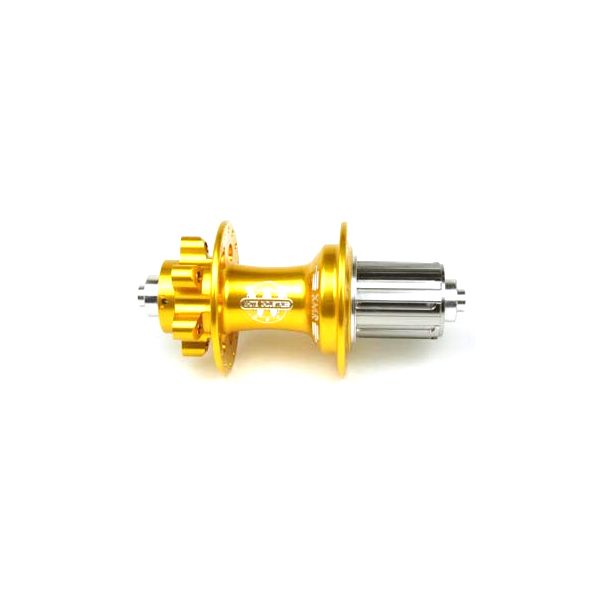

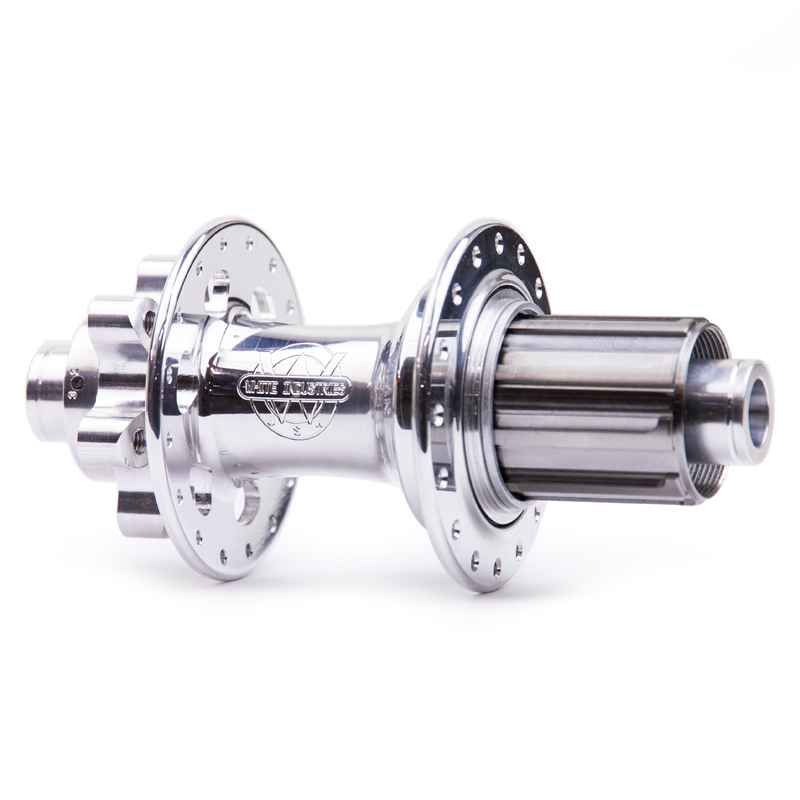

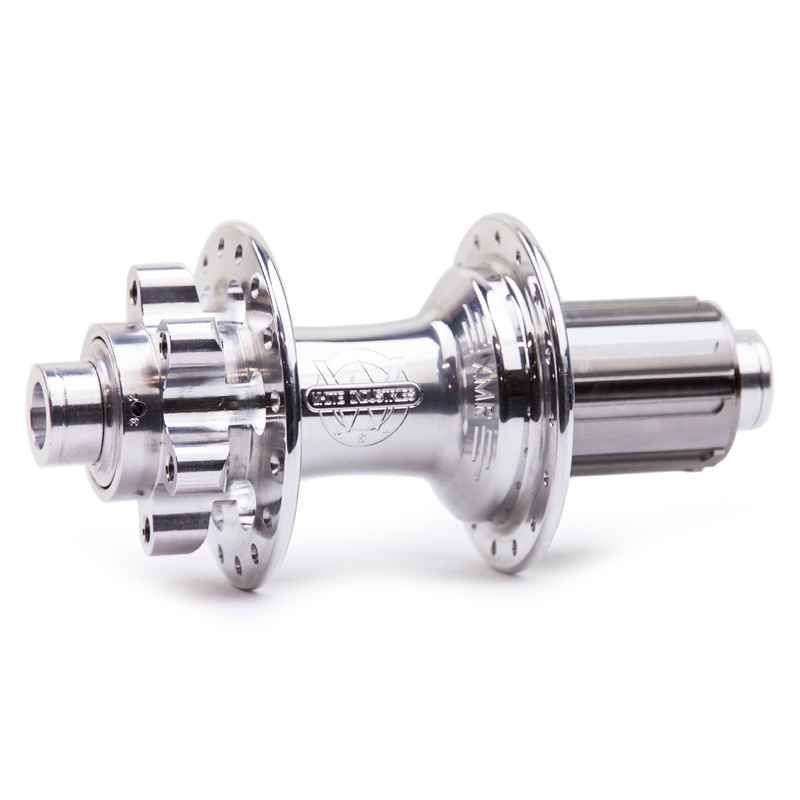

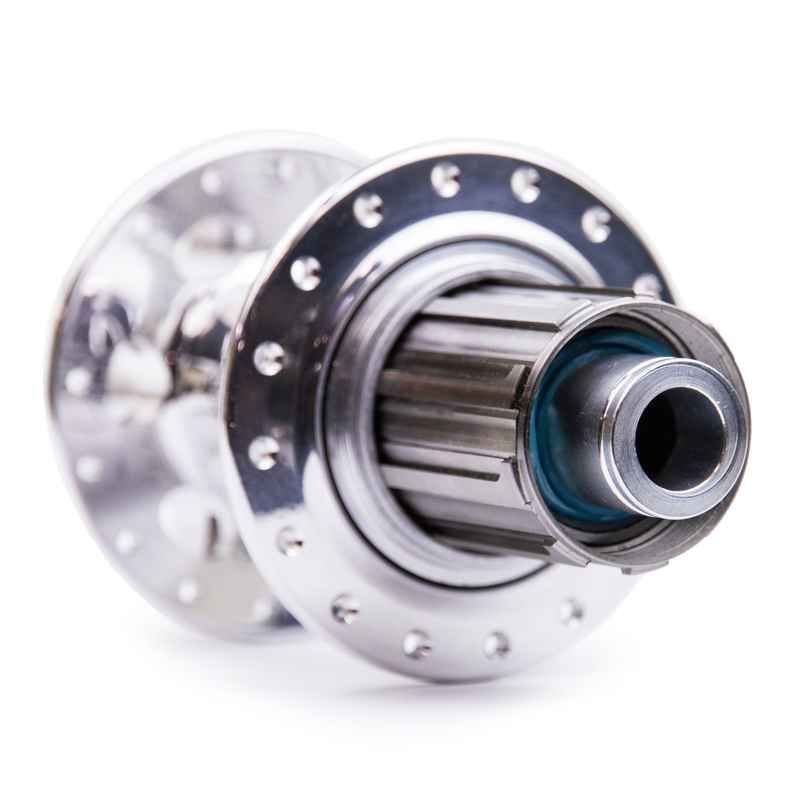

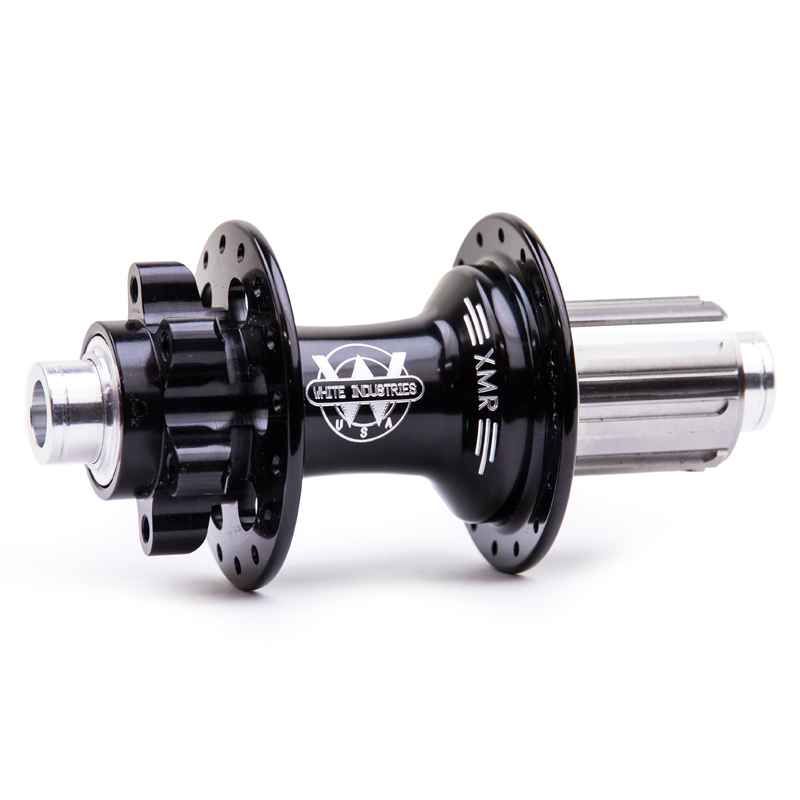

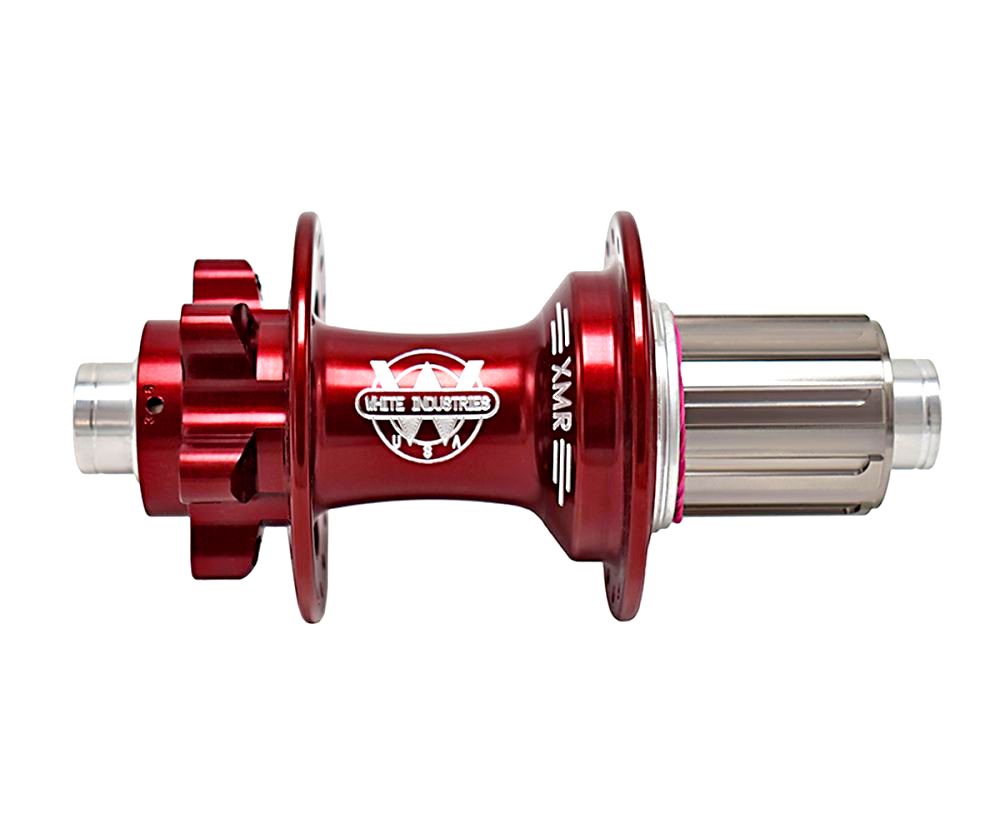

White Industries XMR+ Boost Rear 12x148 Micro Spline

White Industries XMR+ Boost Rear 12x148 Micro Spline

Regular price $809.90 NZD
Regular price $809.90 NZD Sale price $809.90 NZD
Rouleur Online Price Sold out
Taxes included. Shipping calculated at checkout.

Variant

Low stock

  • NZ Based
    NZ‑Based Support – Talk to real riders who understand your needs.
  • Secure Payments
    Secure Payments – Shop Pay, Google Pay, Apple Pay & major cards accepted.
  • Warranty Protection
    Warranty Protection – All bikes backed by manufacturer warranties.
  • Easy Returns
    Easy Returns – Hassle‑free returns on unused gear.

Our XMR+ (Cross/Mountain/Road) Boost hubs are designed around the ISO 6-bolt rotor mounting interface as opposed to the Center Lock mounting standard used on our CLD hub. The Boost spacing allows for wider hub flange spacing which results in better spoke bracing angles. Made in our shop from U.S. sourced 6061-T6 aluminum, they’re available in a range of drillings, colors, and axle configurations.

A question we always get about our disc hubs is, “CLD or XMR? Which is better?”. Neither is “better” than the other. Both share the same internals and the differences really come down to the respective designs having to accommodate the two different rotor mounting interfaces. Bottom line is you really can’t go wrong with either hub!

Features

  • U.S. made 6061-T6 aluminum
  • Enduro bearings
  • 6/4 titanium driver
  • 3-pawl, 48 point (7.5 degree) engagement
  • Easily serviceable/rebuildable
  • Compatible with 6-bolt rotors
  • Cassette spacer included only on XDR freehub bodies
    • Available separately for Shimano HG11 (part# SPACER11)
  • Radial spoke lacing not recommended

Specs

  • 306g
  • 28H, 32H, 36H, and 40H drillings
  • Axles:
    • 12mm x 148mm Thru

Bearings

  • All Enduro ABEC 5 except 3802W (ABEC 3)

Driver Style

Left hub shell bearing Right hub shell bearing Inner driver bearing

Outer driver bearing

Shimano Hyperglide 11 speed

61902-LLU/LLB 61902-LLU/LLB 3802W LLB

61902-LLU/LLB

Shimano Micro Spline

61902-LLU/LLB 61902-LLU/LLB 3802W LLB

3802W LLB

SRAM XD/XDR

61902-LLU/LLB 61902-LLU/LLB 3802W LLB

3802W LLB

Campy 11 speed

61902-LLU/LLB 61902-LLU/LLB 3802W LLB

3802W LLB

Wheelbuilding specs

  • Spoke hole diameter
      • 2.6mm

Left flange diameter

Right flange diameter Center to left flange

Center to right flange

60mm

60mm 36.5mm

22.5mm
