    White Industries

    White Industries Disc Lockrings Internal Spline

    White Industries Disc Lockrings Internal Spline

    $79.90 NZD
    $79.90 NZD $79.90 NZD
    Rouleur Online Price Sold out
    Taxes included. Shipping calculated at checkout.
    Variant

    Low stock

    • NZ Based
      NZ‑Based Support – Talk to real riders who understand your needs.
    • Secure Payments
      Secure Payments – Shop Pay, Google Pay, Apple Pay & major cards accepted.
    • Warranty Protection
      Warranty Protection – All bikes backed by manufacturer warranties.
    • Easy Returns
      Easy Returns – Hassle‑free returns on unused gear.

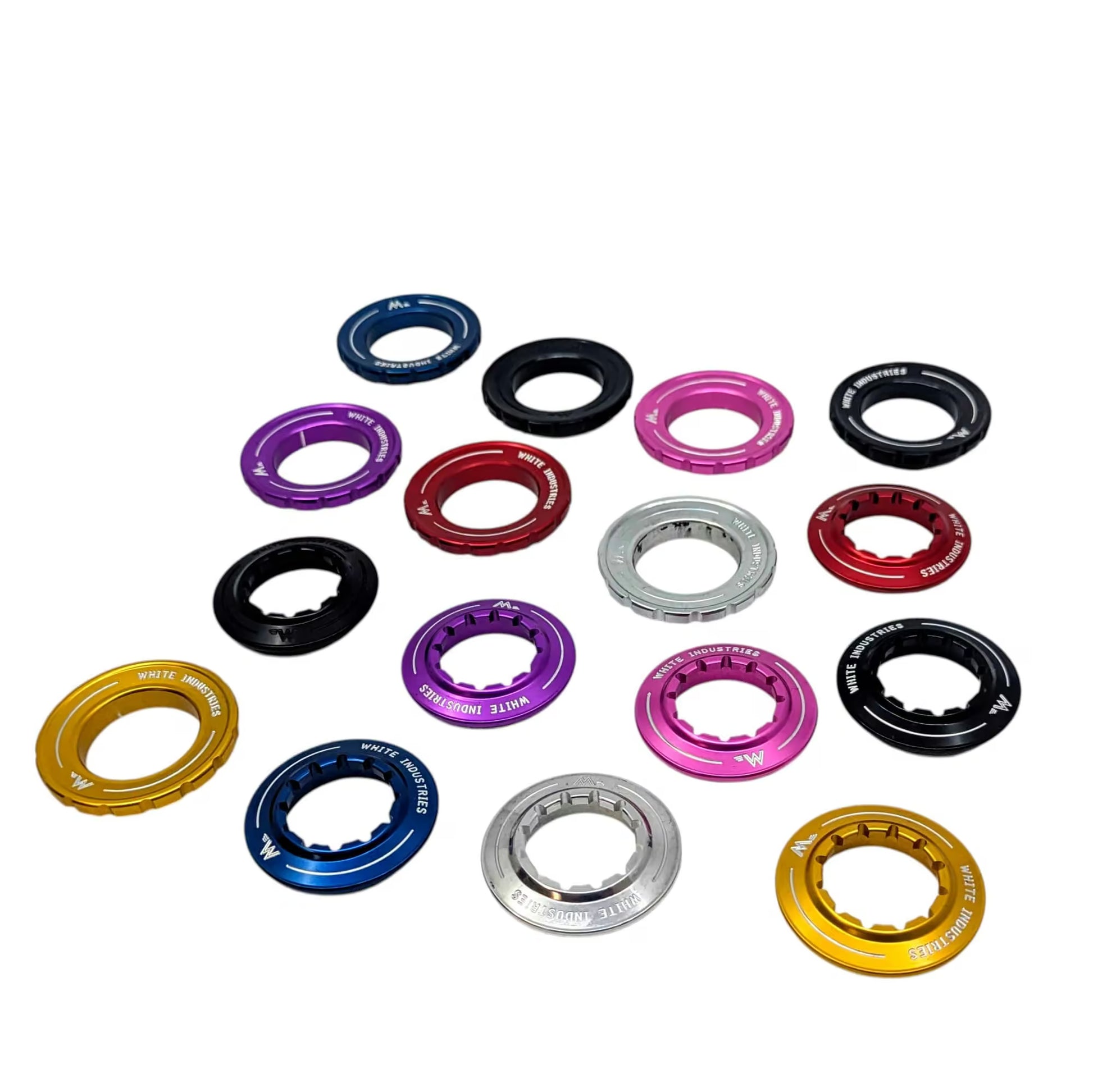

    These are center lock disc lockrings made with classic White Industries touches; first they’re polished, then anodized, then the logos are machine-engraved (not just laser-engraved).  Super classy and a great addition to center lock disc style hubs like our CLD, CLD+ Boost, and C157 Superboost hubs.  Available in internally splined and externally splined versions to fit the majority of hub brands and applications.


    • Colors: black, blue, gold, pink, polished silver (not anodized), purple, red, stealth black (logos are blacked out)
    • Finish: polished, then anodized, then the logos are machine-engraved
    • 6061-T6 aluminum
    • Knurled, with stainless steel washers
    • Internally splined and externally splined versions
    • Torque: 40Nm/30 ft-lbs
    • Tools:
      • Internally splined: 12 spline
        • Park Tool FR 5.2
      • Externally splined: 16 notch/44mm OD
        • Park Tool BBT-19.2 (or 19.3 etc.)
    • Weight
      • Internally splined: 9g
      • Externally splined: 11g


    • Compatible with center lock style disc hubs
      • White Industries CLD, CLD+ Boost, and C157 Superboost hubs
      • Other brands of center lock style hubs
    • Not compatible with 6-bolt disc hubs
    • Internally splined lockrings compatible with:
      • 12mm Thru axles
      • QR axles
      • Not compatible with 15mm Thru axles
    • Externally splined lockrings compatible with:
      • 12mm Thru axles
      • 15mm Thru axles
      • QR axles
      • Some carbon forks don’t have clearance for externally splined lockrings



      What’s In The Box

      One center lock lockring with steel lock washer


      Can I use the internally splined lockring as a cassette lockring?

      No, it’s not designed for cassettes!
