Time XYSTO DH Pedal

Time XYSTO DH Pedal

$425.00 NZD
$425.00 NZD
Rouleur Online Price Sold out
Taxes included. Shipping calculated at checkout.
Stock Item

Out of stock

  • NZ Based
    NZ‑Based Support – Talk to real riders who understand your needs.
  • Secure Payments
    Secure Payments – Shop Pay, Google Pay, Apple Pay & major cards accepted.
  • Warranty Protection
    Warranty Protection – All bikes backed by manufacturer warranties.
  • Easy Returns
    Easy Returns – Hassle‑free returns on unused gear.

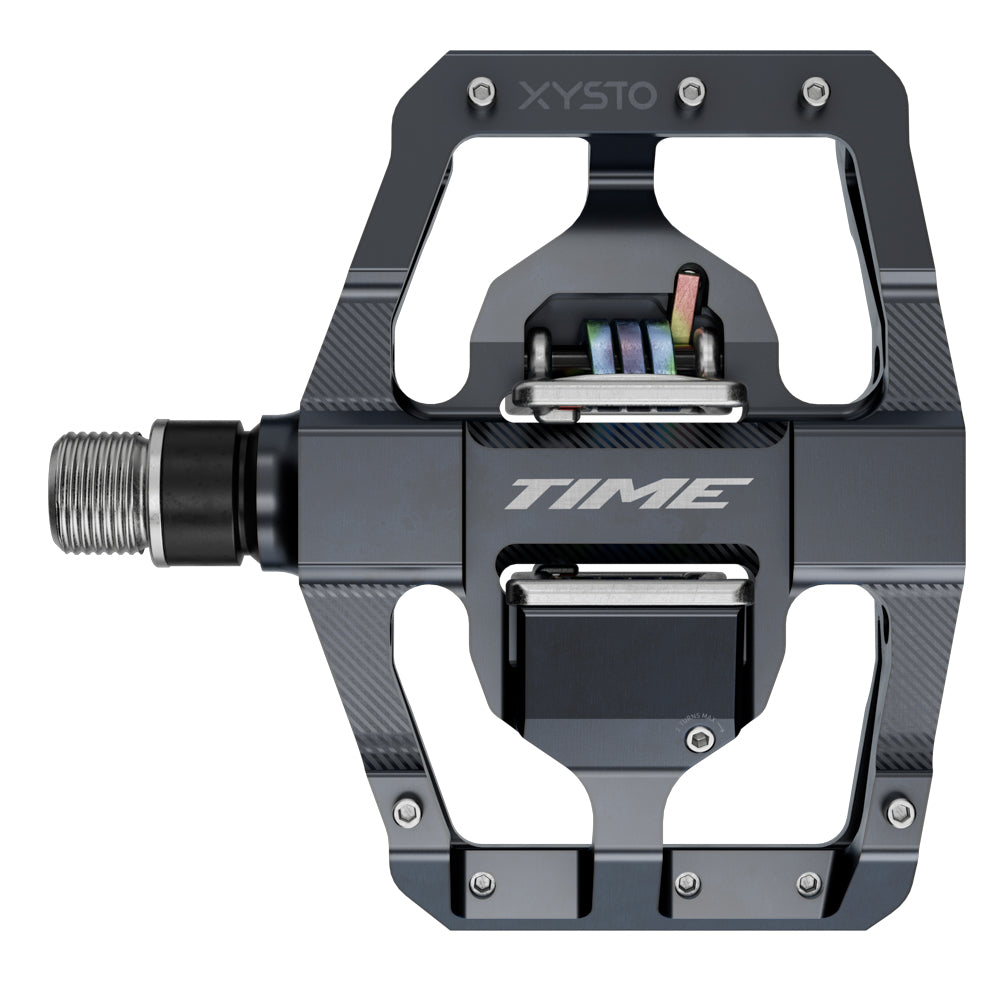

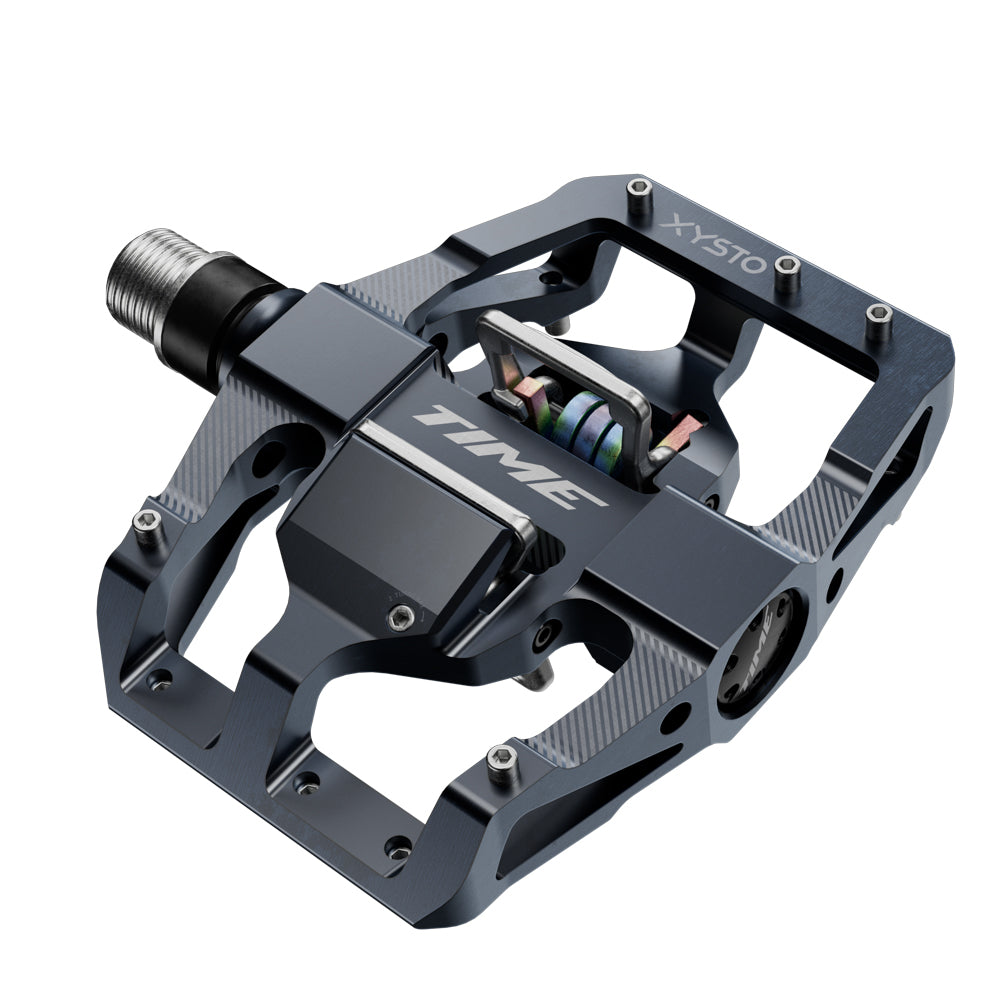

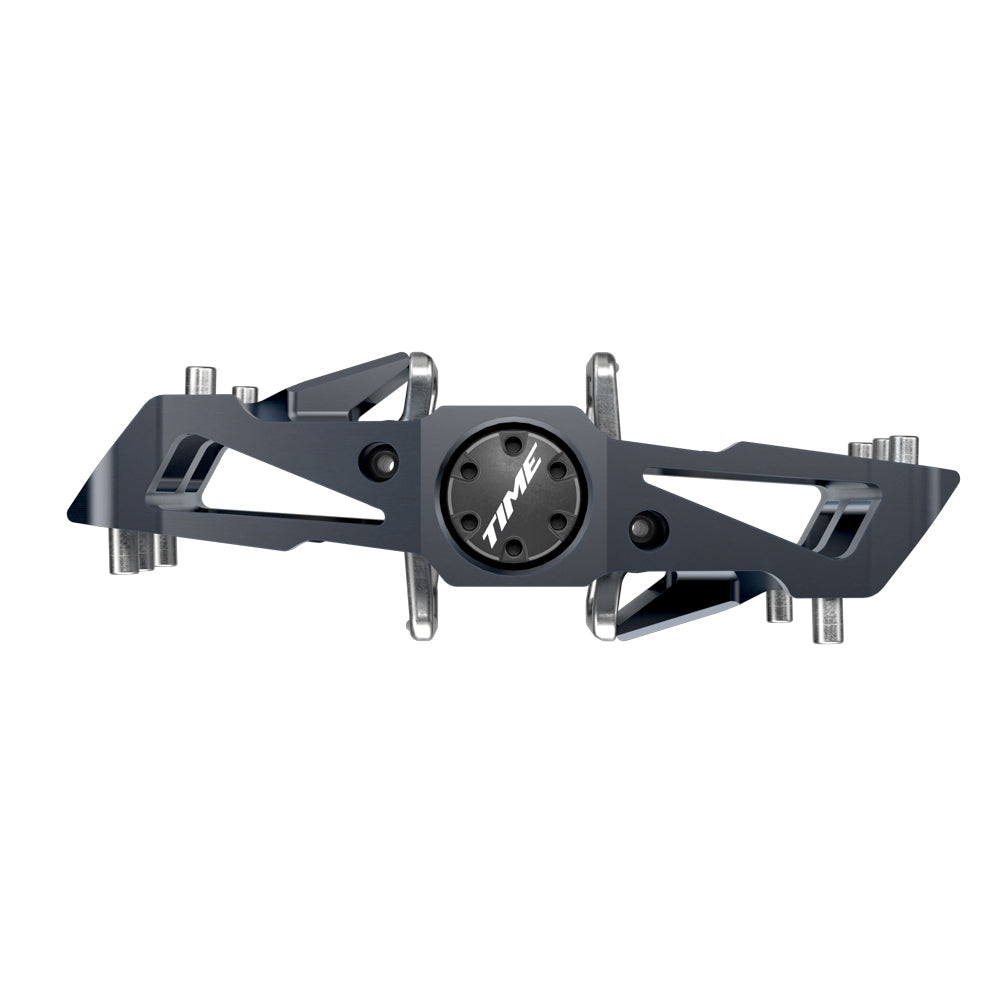

TIME XYSTO DOWN HILL PEDAL

Inspired by the xisto stone villages and trails found near our facility in Portugal, the TIME XYSTO (pronounced 'She-stoh') is a robust full-bodied pedal system designed for the modern DH, Enduro, and aggressive off-road rider. Customizable grip pin placement allows the pedal to adapt to the rider, not the other way around. Our proven ATAC Technology clears dirt and debris upon entry and allows for natural foot movement.

SPECIFICATIONS

Axle component Steel axle
Bearings Steel
Body component 6106 T6 - Aluminum
Cleats ATAC cleats
Pedal stack height 18.3mm
Angular freedom 5° to -5° with free cleats, 0° with fixed cleats
Contact surface area n/a
Distance pedal spindle / crank arm 57mm
Lateral freedom 2.5 mm or -2.5 mm
Release angle 10° with ATAC Easy cleats, 13 or 17° with ATAC cleats
Tension Micro adjustment
Threading 9/16 - 20 inch
Platform Size X-Large (79 X 94 mm)
Color (Pedal) Dark Grey
Accessories ATAC CLEATS AND 20 GRIP SCREWS
Intended use Gravity
Power Measurement Not Compatible
Weight (per pedal) 226g


FEATURES

  • Extra-large 79x94mm platform provides additional support and control
  • Asymmetrical design fits the natural shape of your sole
  • Customizable grip pin placement
  • Adjustable release tension
  • ATAC design clears mud and debris every time you clip in
  • Easy engagement and performance in all conditions
  • Dark Grey alloy anodized platform
  • 57mm spindle length
  • 226g per pedal
  • 13/17° cleats included with pedals
  • Made in-house in Coimbra, Portugal
