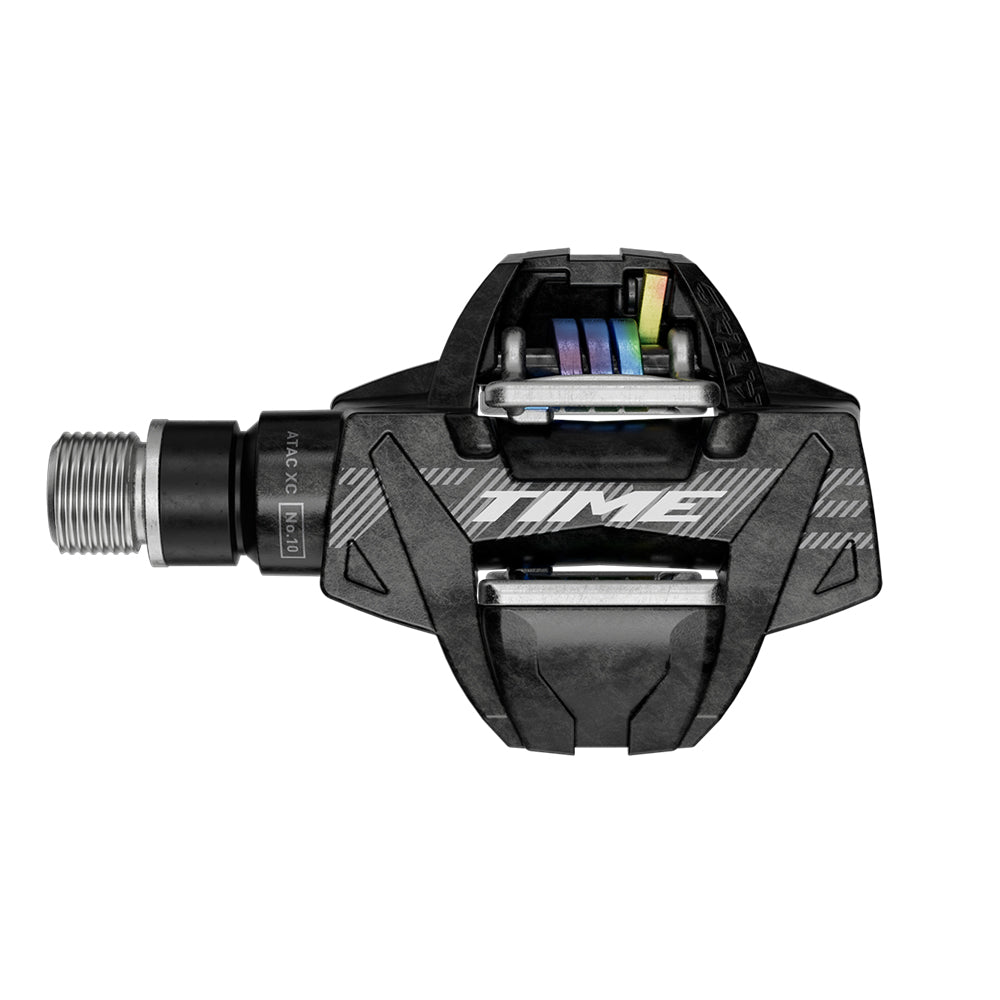

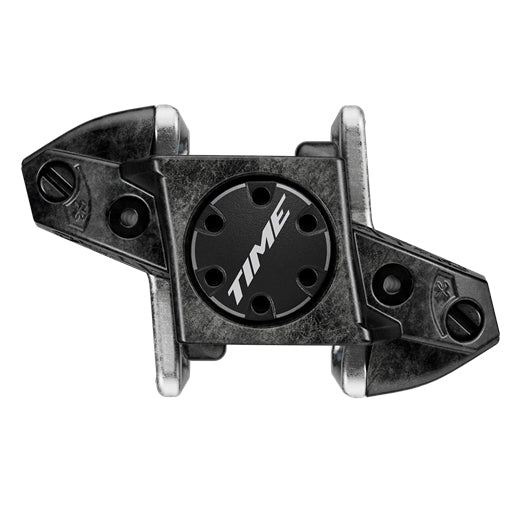

TIME ATAC XC 10 PEDAL

The ATAC XC 10 is a favorite pedal of competitive riders because of its light weight and ergonomic design. The pedal features the lightness of a carbon body with the durability of a hollow steel axle, as well as tension adjustment to fit your needs. Freedom of movement lateral and angular for reduced injuries and muscle fatigue. The pedal’s self-cleaning design clears mud and debris each time you step in. The ATAC XC 10 offers easy and consistent engagement with tension adjustment to meet your pedal preference and needs. This pedal is a great option for XC, gravel, or cyclocross.

SPECIFICATIONS

Axle component Hollow steel axle
Bearings Steel
Body component Carbon-filled
Cleats ATAC cleats
Pedal stack height 18.3mm
Angular freedom +5° to -5° with free cleats, 0° with fixed cleats
Contact surface area n/a
Distance pedal spindle / crank arm 54mm
Lateral freedom +2.5 mm or -2.5 mm
Release angle 10° with ATAC Easy cleats, 13 or 17° with ATAC cleats
Tension 3 different positions of the spring
Threading 9/16 - 20 inch
Weight (per pedal) 140g
Color (Pedal) Carbon
Accessories ATAC cleats
Intended use XC, CX, Gravel
Power Measurement Not Compatible


FEATURES

  • Easy clip in and pedal engagement.
  • Light hollow steel axle and carbon body for light weight.
  • Self-cleaning design to push out mud with step in.
  • Tension adjustment.
  • Cleats included with all pedal purchases.
