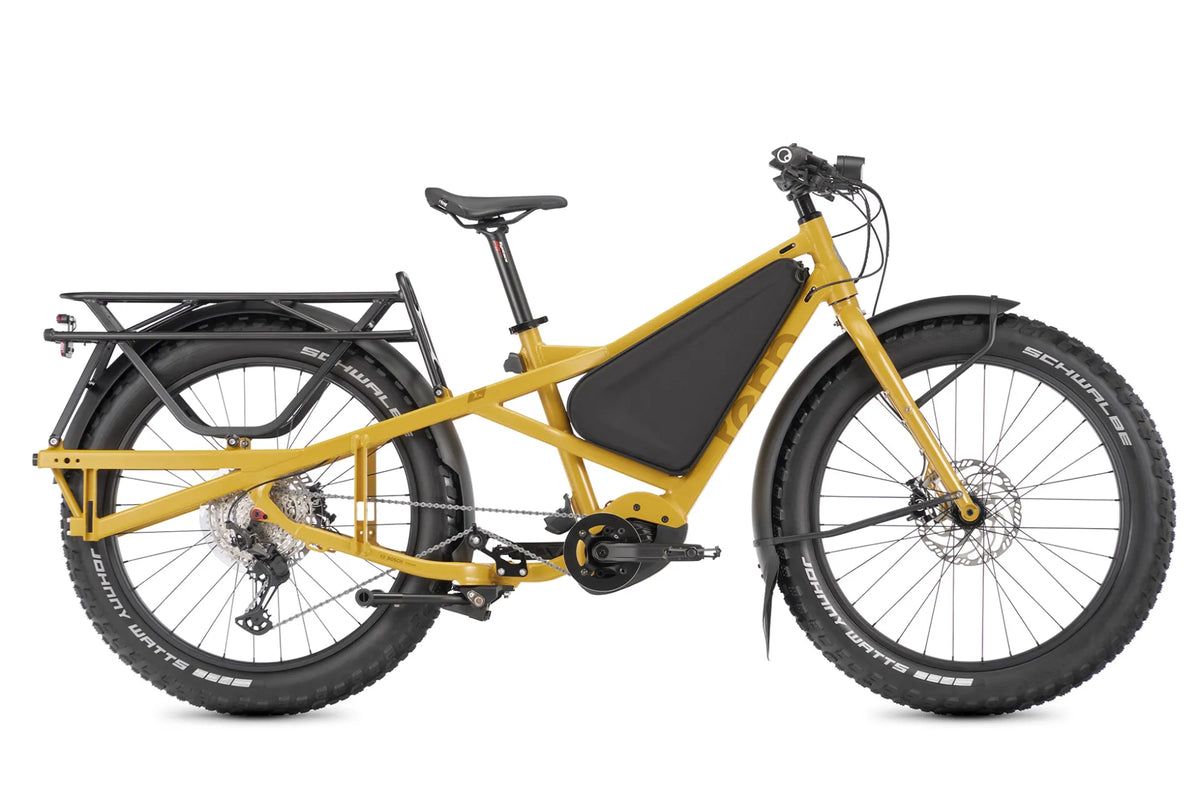

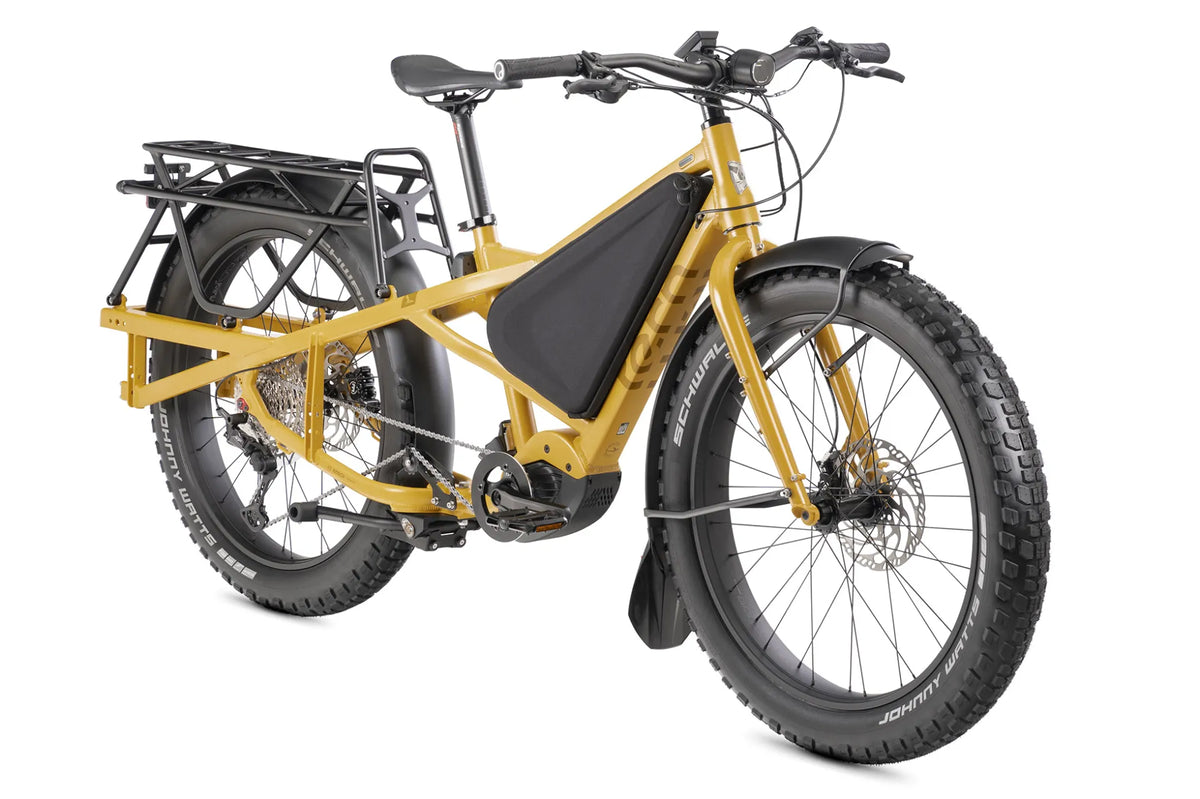

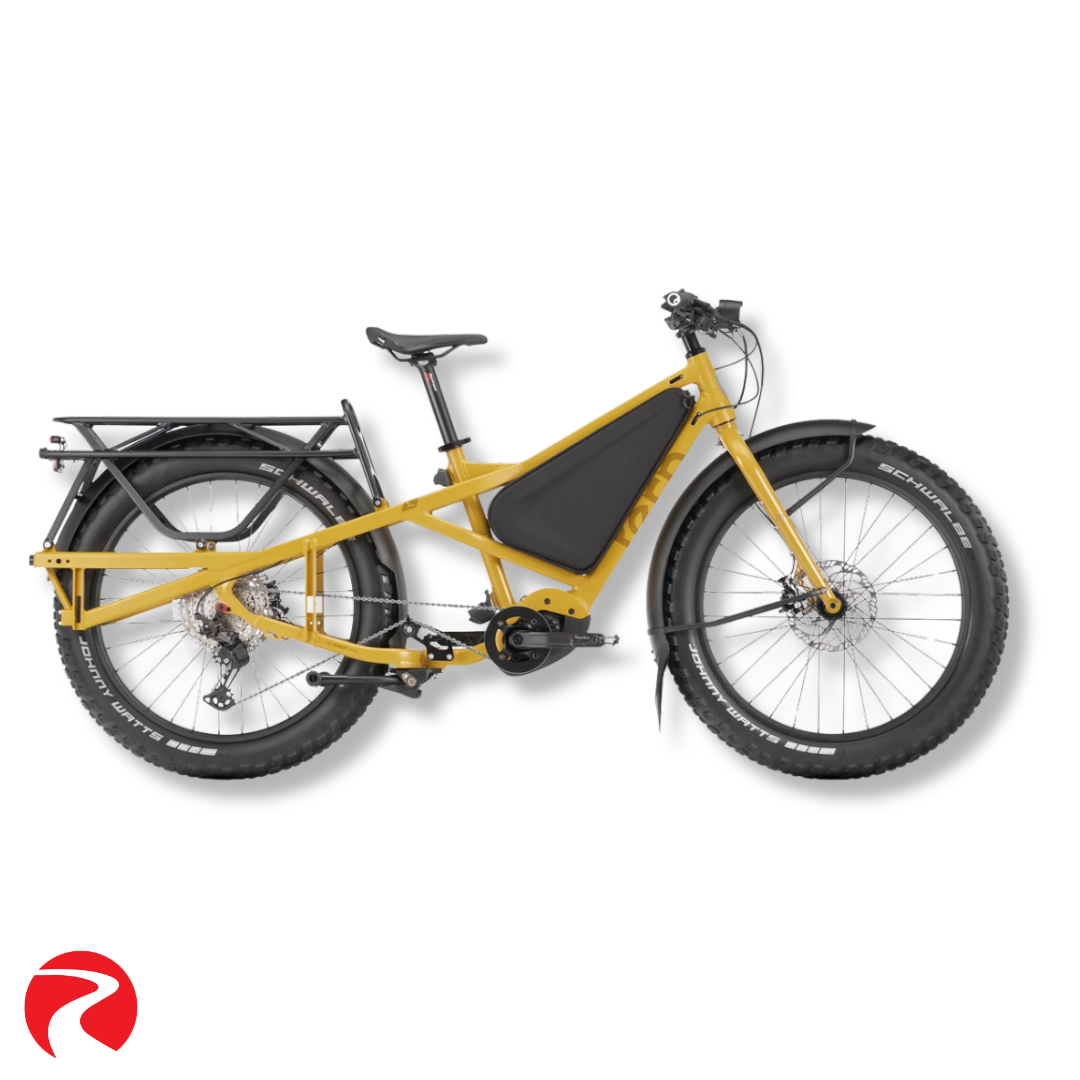

Tern Orox S12 Bosch Performance Line CX Smart System 725Wh

$11,990.00 NZD

~~$11,990.00 NZD~~ $11,990.00 NZD

Rouleur Online Price Sold out

Taxes included. Shipping calculated at checkout.

Variant Tern E-Bike Orox S12 27.5" Highland Yellow/Gray 12s Bosch Performance Line CX Smart System 32kph 725Wh w/ Racks, Fenders - Medium Tern E-Bike Orox S12 27.5" Pine/Dark Green 12s Bosch Performance Line CX Smart System 32kph 725Wh w/ Racks, Fenders - Medium

In stock

Quantity

NZ‑Based Support – Talk to real riders who understand your needs.
Secure Payments – Shop Pay, Google Pay, Apple Pay & major cards accepted.
Warranty Protection – All bikes backed by manufacturer warranties.
Easy Returns – Hassle‑free returns on unused gear.

EXPLORE NEW GROUND

What makes it an S12?

Shimano Deore XT 1 x 12-speed groupset for fast and precise shifting
27.5" stud-compatible Vee Snowball tires take on even the toughest conditions

Orox highlights

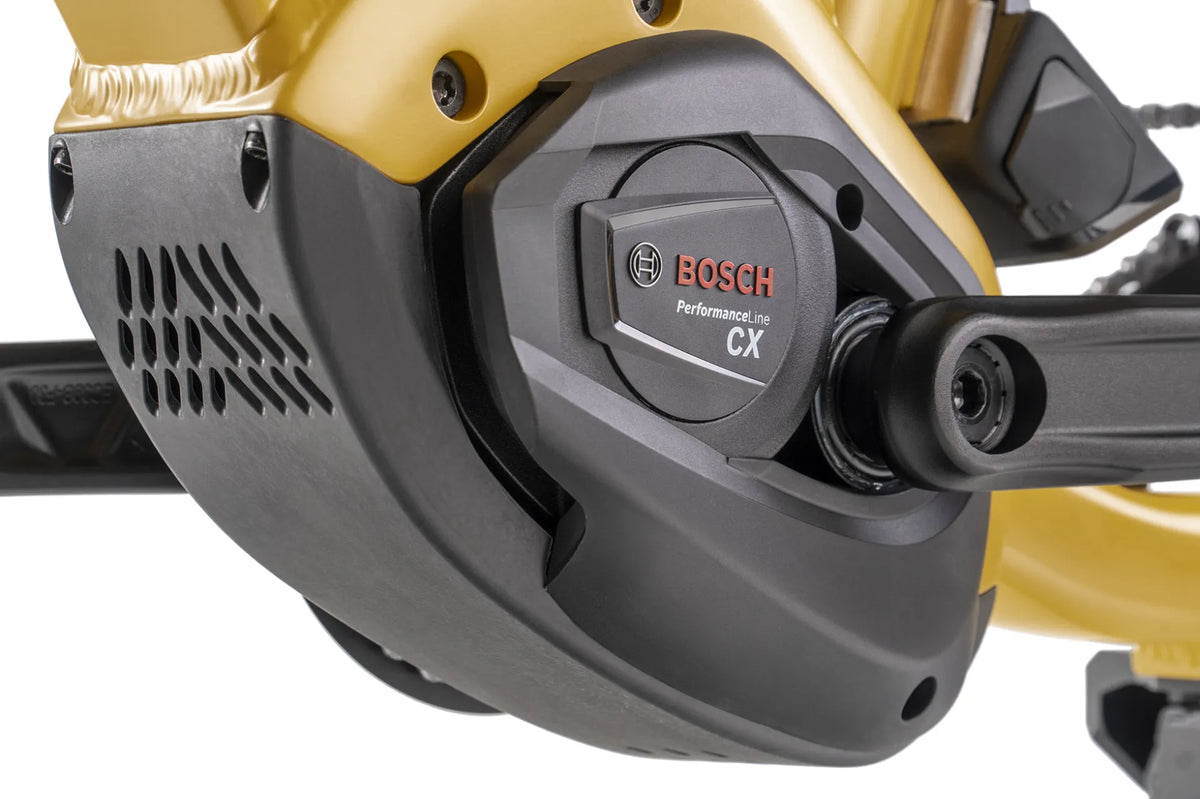

Hill-attacking Bosch Performance Line CX motor provides up to 85 Nm of torque and 340% support
Dual-battery system draws from up to two batteries for ultra-long range
Bosch Smart System with ConnectModule lets you access and control advanced functions like eBike Alarm and eBike Tracking

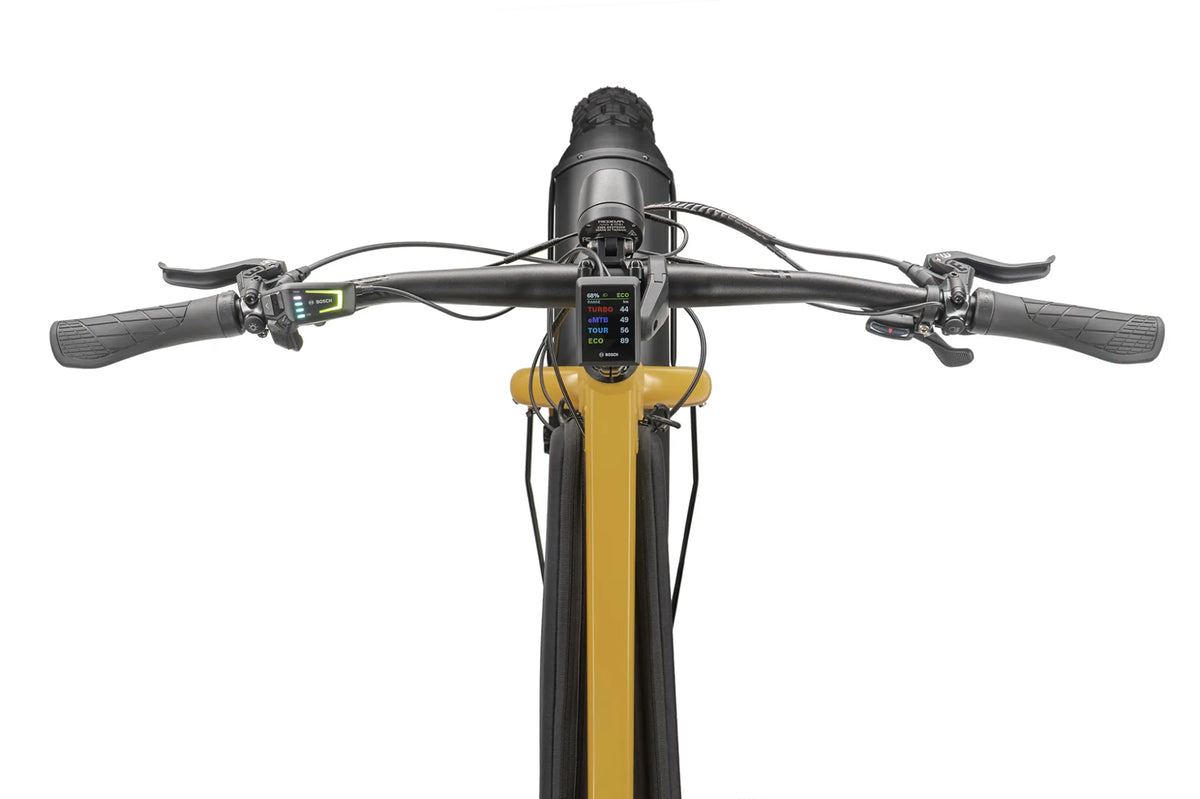

Splash and dust-proof Kiox 300 color display with LED remote for intuitive control
Powerful and responsive Magura 4-piston hydraulic brakes
EFBE-certified safe and reliable for massive hauls, with a Max Gross Vehicle Weight of 210 kg (462 lb) on pavement and 180 kg (397 lb) off-road
Two frame sizes to fit riders 155 - 195 cm (5’1” - 6’5”) tall, weighing up to 130 kg (286 lb)

SPECIFICATIONS

GENERAL INFO

SPEEDS	1 x 12
WEIGHT	M: 37.1 kg (81.8 lb)
GEAR INCHES	1.48 - 7.54 m (18" - 95")
FRAME SIZES	M, L
DISTANCE: SEATPOST TO HANDLEBAR	M: 61 - 66 cm (24 - 26 in) L: 67 - 73 cm (26.4 - 28.7 in)
DISTANCE: SADDLE TO PEDAL	M: 71 - 99 cm (28 - 39 in) L: 76.5 - 104.5 cm (30.1 - 41.1 in)
SUGGESTED RIDER HEIGHT	M: 155 - 185 cm (61 - 72.8 in) L: 165 - 195 cm (65 - 76.8 in)
MAX GROSS VEHICLE WEIGHT	On-road: 210 kg (463 lb) Off-road: 180 kg (396.8 lb)
MAX RIDER WEIGHT	130 kg (286.6 lb)

FRAME

FRAME	Tern Orox, 6061-AL, patented design, EFBE tested and approved
FORK	Atlas X, butted chromoly steel, EFBE tested and approved

COCKPIT

STEM	Level Nine, 45 mm (M), 65 mm (L), Syntace VR-3 certified
HEADSET	FSA, 1.5", angular contact bearings
HANDLEBAR	Level Nine, AL-7050, 800 mm, riser, eMTB approved
GRIPS/BAR TAPE	Ergon
SADDLE	Ergon SM, E-Mountain Sport, CrMo Rail
SEATPOST	Syntace P6 AL7050, 34.9 mm, Syntace VR-3 SP-approved
SEATPOST CLAMP	Tern Collar

BRAKES

FRONT BRAKE	Magura MT5, 4-piston hydraulic disc, 203 mm rotor
REAR BRAKE	Magura MT5, 4-piston hydraulic disc, 203 mm rotor
BRAKE LEVERS	Magura MT5, hydraulic
BRAKE CABLE & HOUSING	Magura, hydraulic

WHEELS

FRONT WHEEL	Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
REAR WHEEL	Tern Atlas X, ultra-heavy duty cargo construction, 27.5"
FRONT HUB	Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, integrated Tern Tool with 5mm hex/T20 Torx
REAR HUB	Tern Atlas X, CNC body, disc cooling fins, Boost Thru-Axle, Syntace X-12 standard
SPOKES & NIPPLES	Stainless steel
RIMS	Tern Atlas X, custom doublewall construction

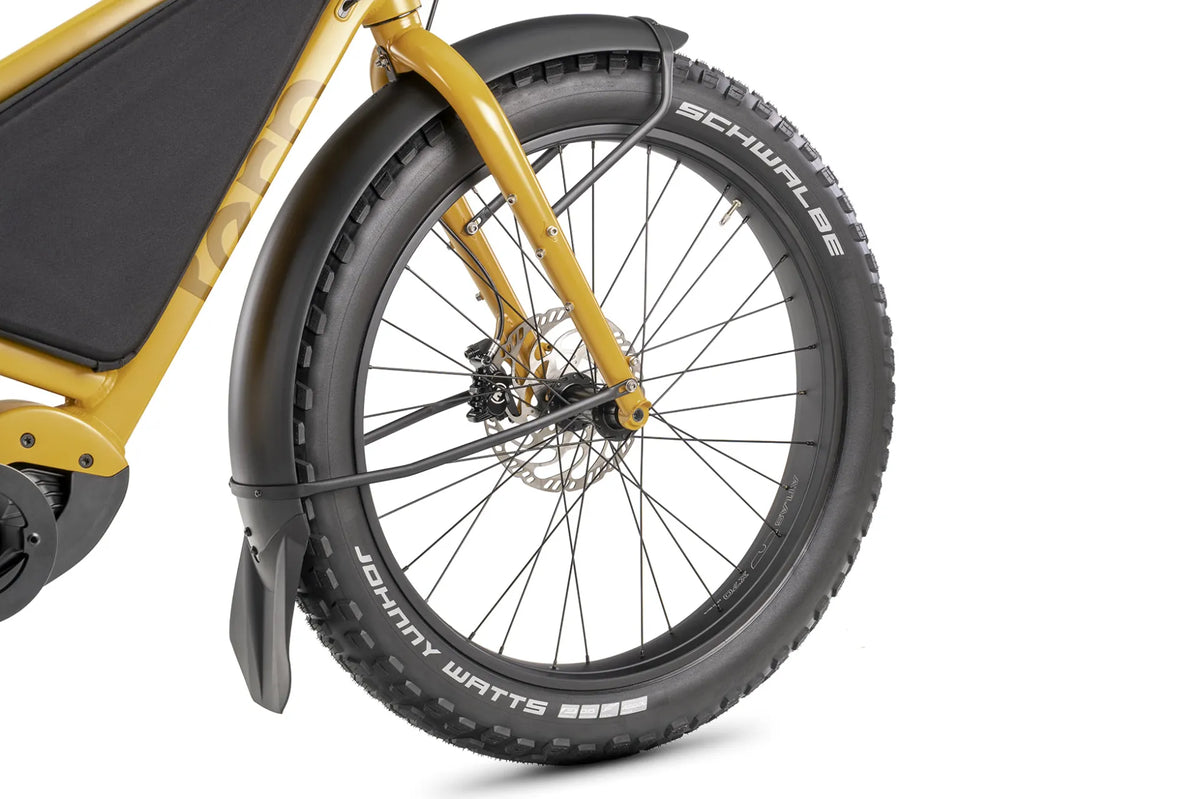

TIRES	Vee Snow Ball, 27.5 x 4 or Schwalbe Johnny Watts 27.5" x 4"

TRANSMISSION

SHIFTER(S)	Shimano Deore, 1 x 12 spd
REAR DERAILLEUR	Shimano Deore XT Shadow+
CRANKSET	Tern Orox custom
CASSETTE/FREEWHEEL	Shimano 10-51T, 12 spd
BOTTOM BRACKET	Motor integrated
CHAIN	KMC 12 spd, for eBike, EPT corrosion resistant coating
PEDALS	MTB, non-slip
SHIFTER CABLE & HOUSING	Jagwire LEX-SL, slick treatment, alloy ferrules

E-SYSTEM

MOTOR	Bosch Performance CX, max speed 32 km/h / 20 mi/h (NZ)

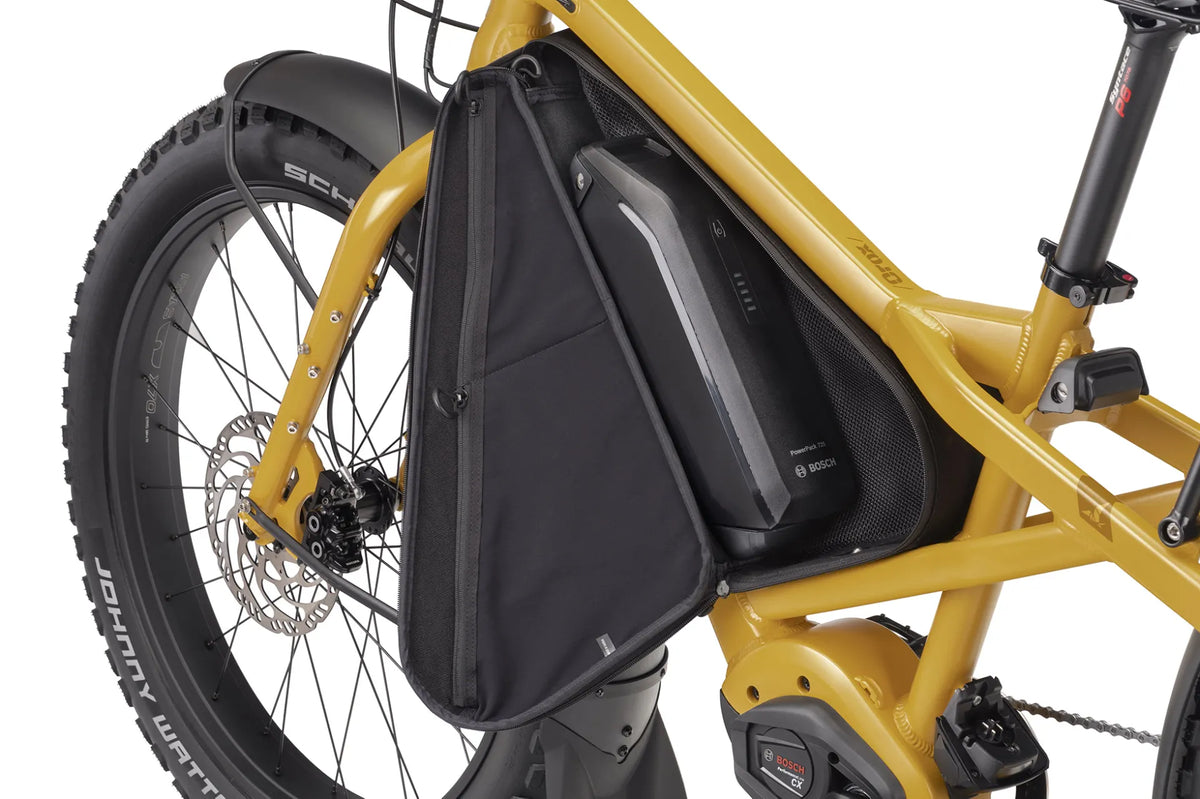

BATTERY	725 Wh, Bosch Dual Battery pack ready
DISPLAY	Bosch Kiox 300 w/ LED remote, electronic bike lock
RANGE	725 Wh: 84 - 146 km (52 - 91 mi) 1450 Wh: 168 - 292 km (104 - 181 mi)
CHARGER	220V, 4A (EU) 100-240V, 4A (US)
CONNECT MODULE	Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation

BELLS & WHISTLES

BELL	Pitch Plus, brass
TOOL	Thru-axle lever, 4/5 mm, Torx 2.5 mm
CHAINGUARD	Custom Bash Guard
PAINT PROTECTION	ToughShield film on top and downtube, self-healing

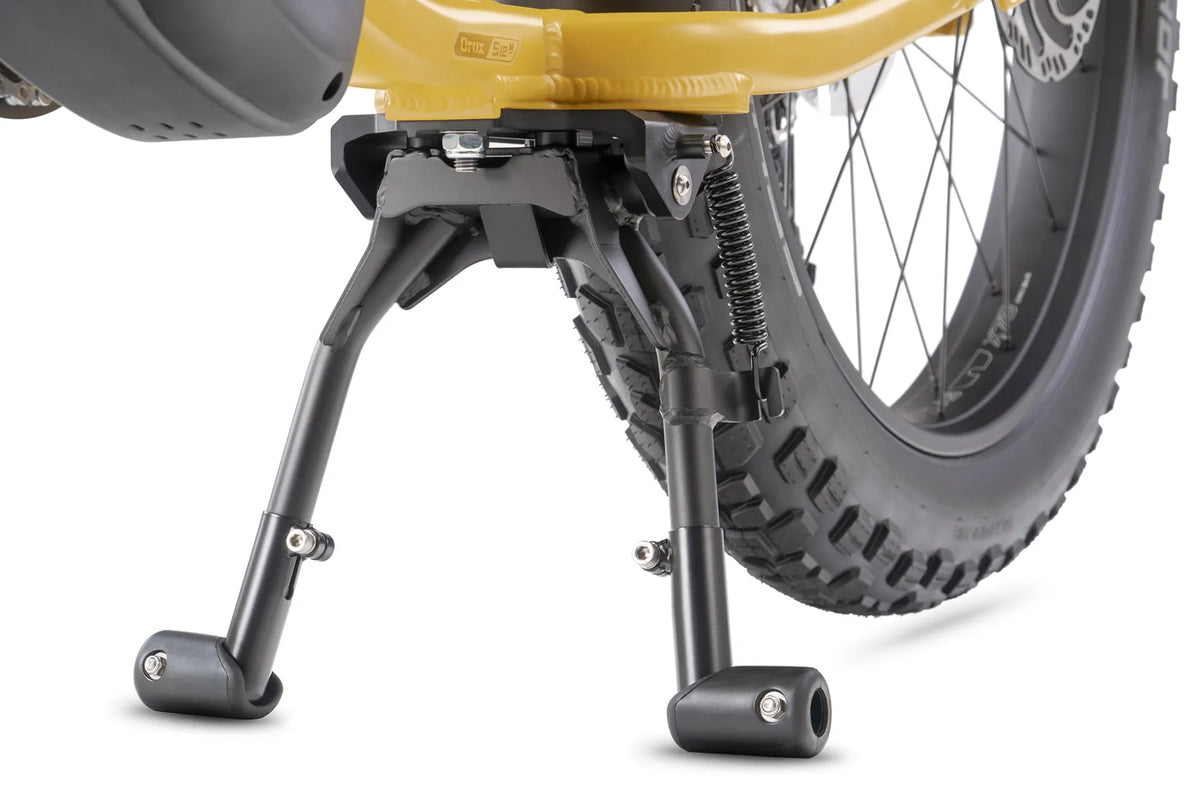

KICKSTAND	Atlas Kickstand XL Cargo ready

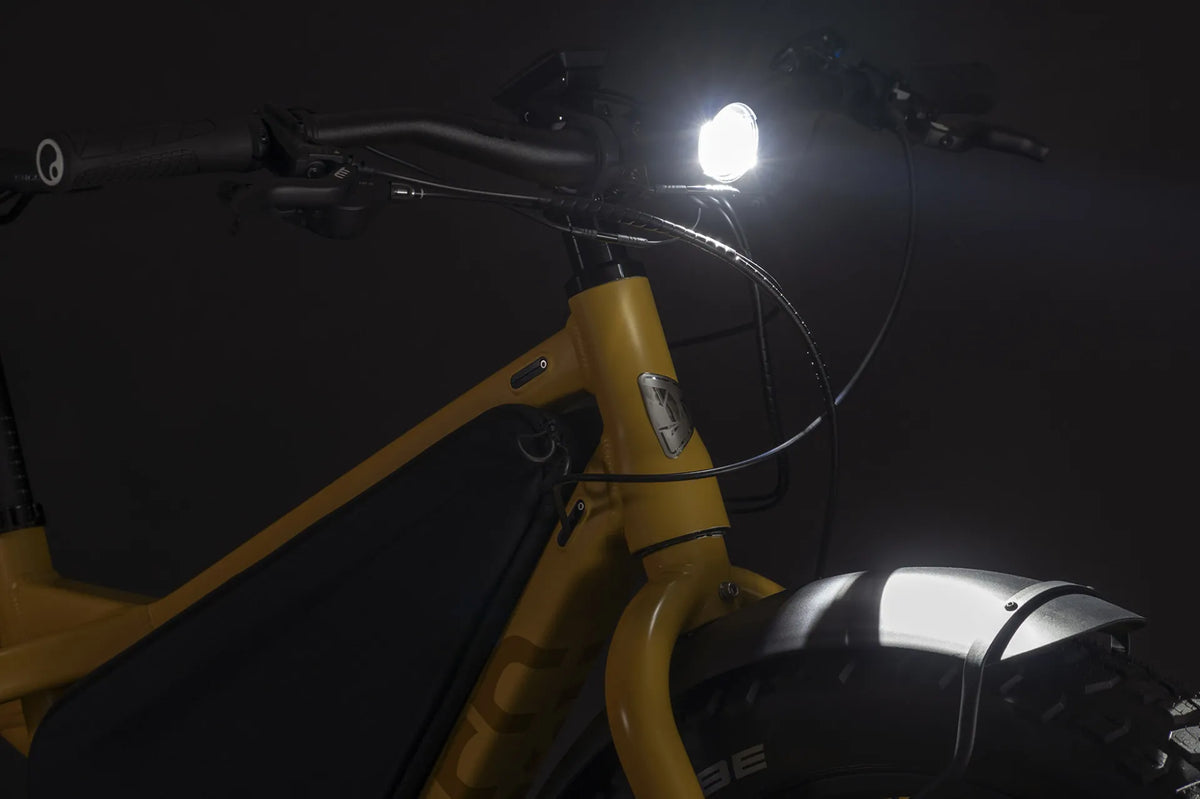

FRONT LIGHT	Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
REAR LIGHT	LED w/ G-Sensed Brake Light
FENDERS	Aluminum, heavy duty construction, oversize stays, 27.5"

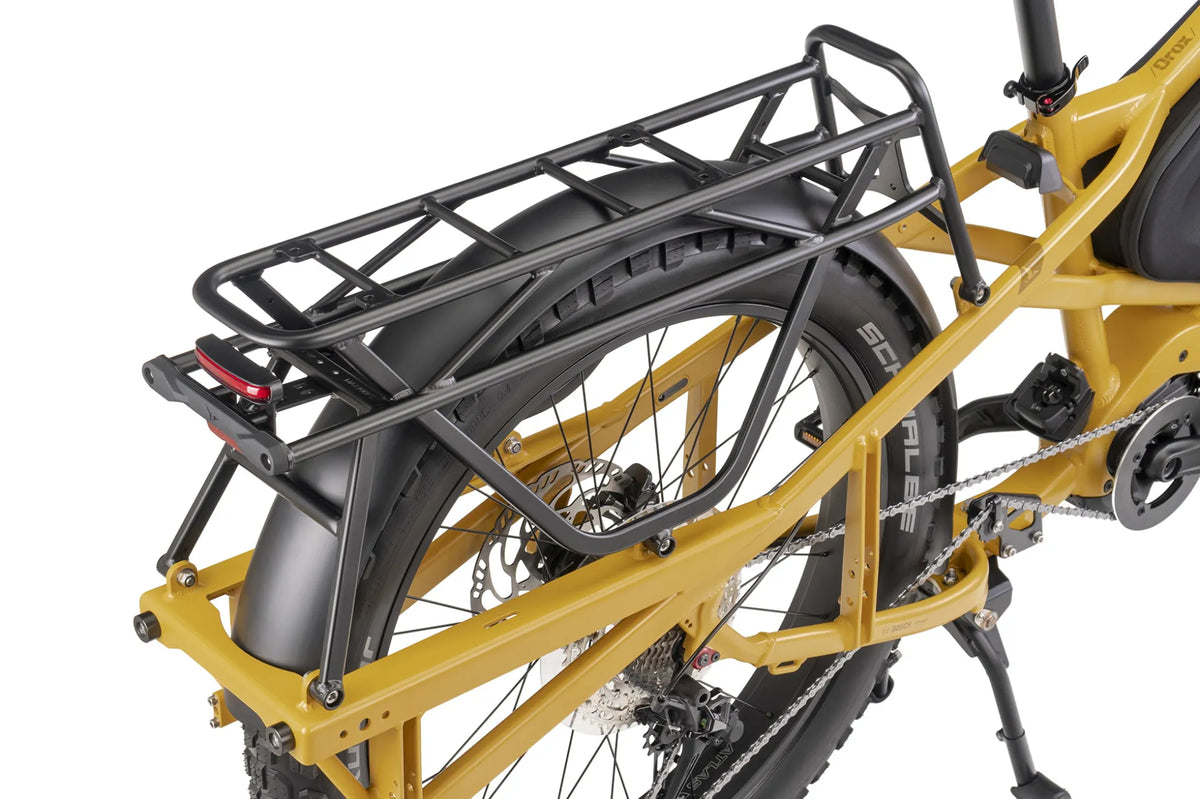

RACK(S)	Atlas X, 100 kg (220 lb) capacity

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
