Tern

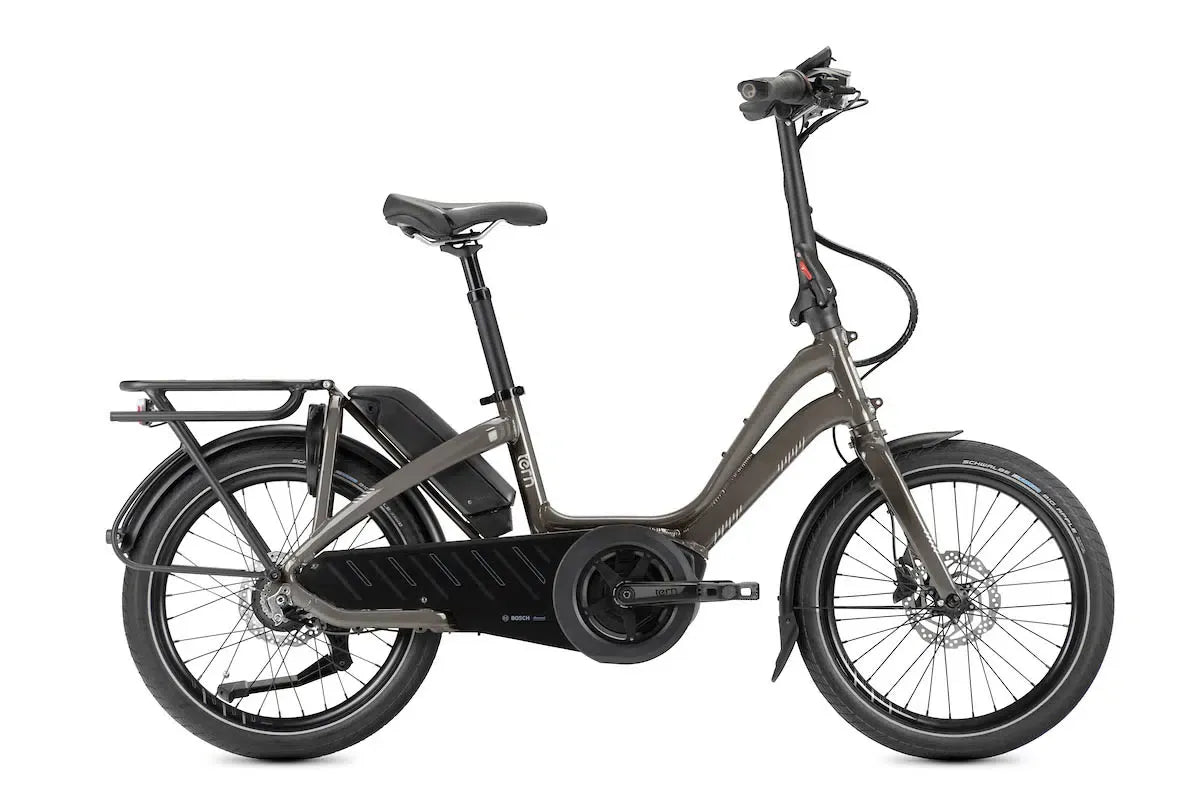

Tern NBD P8i Bosch Active Plus 32kph
Tern NBD P8i Bosch Active Plus 32kph
In stock
Pickup currently unavailable at Rouleur Cycles - 41 Selwyn Street, Onehunga
SMILES FOR MILES
What Makes it a P8i?
- Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
- Bosch PowerPack 400 powers long trips, commutes, and journeys
- Shimano® Nexus 8-speed internal hub
- Shimano hydraulic disc brakes for reliable stopping power—even when carrying cargo and riding fast
NBD Highlights
- Ultra-low 39 cm standover height means gentle, low steps are all that’s required to get on and go
- Ultra-low center of gravity improves balancing and maneuvering when riding with kids through parks and narrow streets
- Fits riders 147 - 190 cm
- Gaia Rack is certified to carry up to 27 kg and works with many child seats
- Proven safe and reliable: frame and fork have undergone the EFBE Tri-Test to the 140 kg Maximum Gross Vehicle Weight
SPECIFICATIONS
GENERAL INFO
| SPEEDS | 1 x 8 |
| WEIGHT | 23.7 kg |
| GEAR INCHES | 2.78 - 6.81 m |
| FOLDING SIZE | 38 × 156 × 79 cm |
| FOLDING TIME | 5 sec |
| FRAME SIZES | One size |
| DISTANCE (SEATPOST TO HANDLEBAR) | 45 - 52 cm |
| DISTANCE (SADDLE TO PEDAL) | 70 - 100 cm |
| SUGGESTED RIDER HEIGHT | 147 - 190 cm |
| MAX GROSS VEHICLE WEIGHT | 140 kg |
| MAX RIDER WEIGHT | 120 kg |
FRAME
| FRAME | Tern NBD, 6061-AL, Patented design, EFBE Tri-Test approved: 140 kg |
| FORK | Tern Tarsus, 6061-AL, hydroformed, EFBE approved: 140 kg |
COCKPIT
| HANDLEPOST | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 350 mm |
| STEM | Tern Andros, adjustable, forged construction, patented technology |
| HEADSET | Tern Flux by FSA, cartridge bearings, Physis integrated |
| HANDLEBAR | Tern Sweep, 6061-AL, Tern Andros adapted |
| GRIPS/BAR TAPE | Ergon |
| SADDLE | Tern Upright by Velo |
| SEATPOST | Tern RideEasy Suspension, 34.9 mm, Air cartridge, Preload adjustable |
| SEATPOST CLAMP | Tern Collar |
BRAKES
| FRONT BRAKE | Shimano, hydraulic disc |
| REAR BRAKE | Shimano, hydraulic disc |
| BRAKE LEVERS | Shimano, hydraulic disc |
| BRAKE CABLE & HOUSING | Shimano, hydraulic disc |
WHEELS
| FRONT HUB | Shimano disc |
| REAR HUB | Shimano Nexus 8 |
| SPOKES AND NIPPLES | Stainless steel |
| RIMS | Kinetix Comp, for disc |
| TIRES | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
TRANSMISSION
| SHIFTER(S) | Shimano 8 spd. |
| CRANKSET | Tern NBD custom, forged 6061-AL crankarm |
| CASSETTE/FREEWHEEL | 16T |
| CHAIN | KMC for eBike, EPT corrosion resistant coating |
| PEDALS | MKS Platform, Tern custom design |
| SHIFTER CABLE & HOUSING | Shimano |
E-SYSTEM
| MOTOR | Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 32 km/h |
| BATTERY | Bosch PowerPack 400 |
| DISPLAY | Bosch Intuvia, 4 mode selectable, walk assist |
| RANGE | 54 -108 km |
| CHARGER | Bosch Standard Charger |
BELLS & WHISTLES
| BELL | Aluminum |
| CHAINGUARD | Tern Custom, full chain cover |
| KICKSTAND | Ursus, rear mount |
| LUGGAGE SOCKET | Combo Mount |
| FRONT LIGHT | Tern Valo Direct, 190 lumens |
| REAR LIGHT | Herrmans |
| FENDERS | SplashGuard, stainless hardware |
| RACK(S) | Gaia Rack, 27 kg capacity, Vertical Parking |
| FRAME LOCK | ABUS, keyed-alike with Bosch battery |
*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
