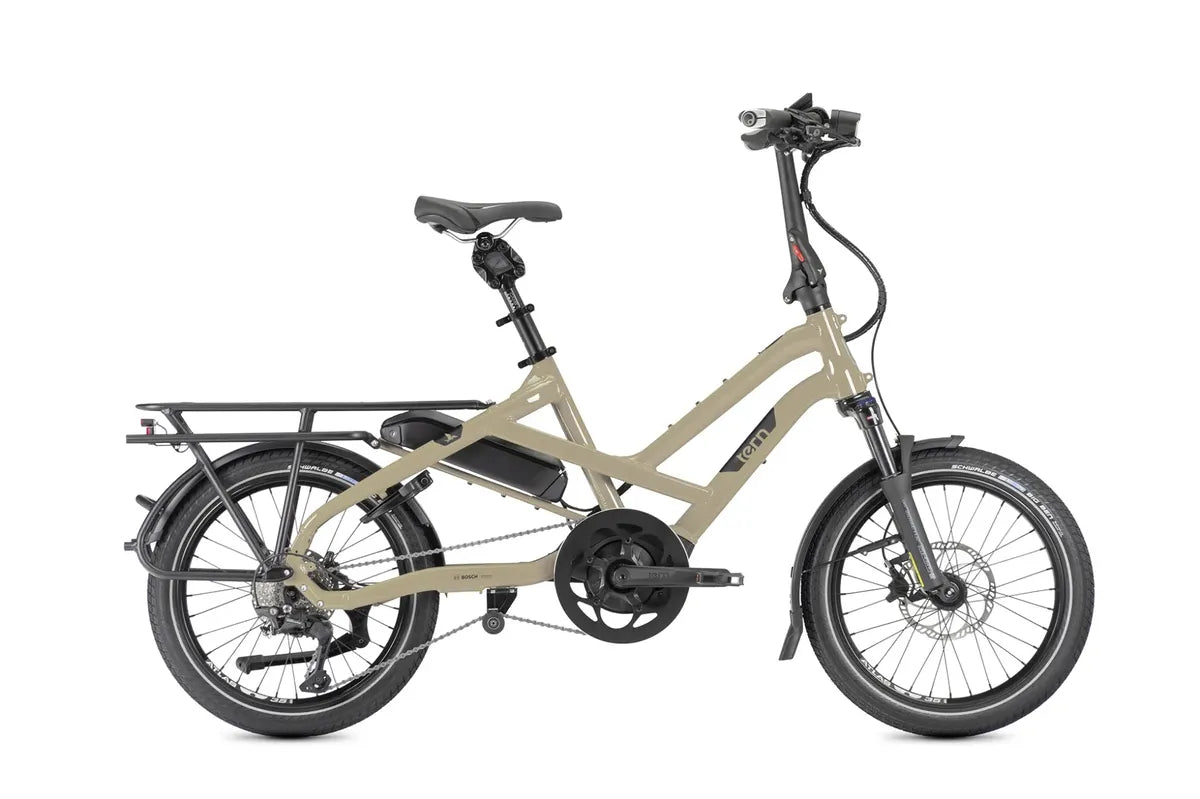

Tern Hsd S11 45kph Bosch Performance Sport
Tern Hsd S11 45kph Bosch Performance Sport
Out of stock
Couldn't load pickup availability
-
NZ‑Based Support – Talk to real riders who understand your needs. -
Secure Payments – Shop Pay, Google Pay, Apple Pay & major cards accepted. -
Warranty Protection – All bikes backed by manufacturer warranties. -
Easy Returns – Hassle‑free returns on unused gear.
MIGHTY BUT MINI
What makes it an S11?
- Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
- Bosch ConnectModule—for the Smart System’s enhanced theft-protection functions like eBike Alarm and eBikeTracking
- Kiox 300 color display that automatically activates eBike Lock when removed from the bike
- 1x11-speed Shimano Deore groupset
- Ultra-bright Ignis Headlight with high/low beam ensures 24/7 visibility, no matter the weather
- Always-on RearStop Brake Light helps you safely signal stops
HSD Highlights
- Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
- Bosch PowerPack 545 battery provides long range of up to 121 km (76 mi)
- Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
- Fits riders 150 - 195 cm (4’11” - 6’5”) with an easily-adjustable cockpit
- Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight
SPECIFICATIONS
GENERAL INFO
| SPEEDS | 1 x 11 |
| WEIGHT | 28.1 kg |
| GEAR INCHES | 2.54 - 8.32 m |

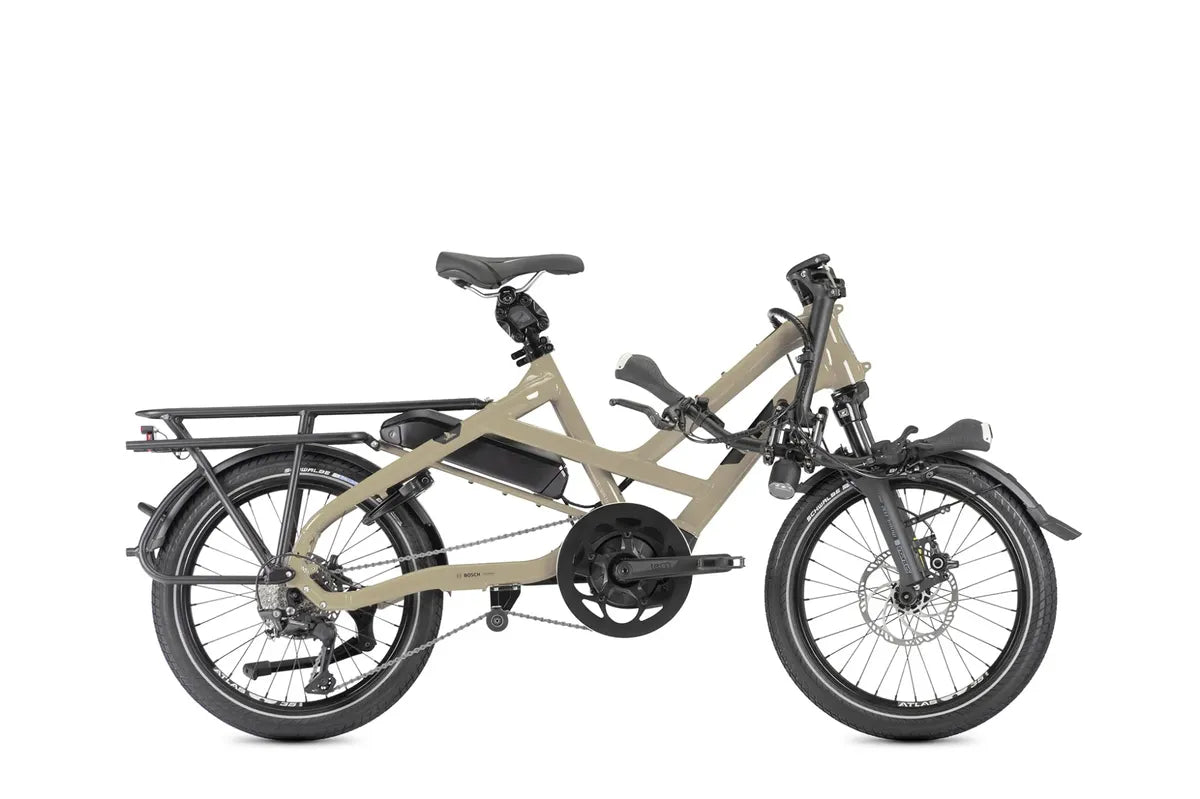

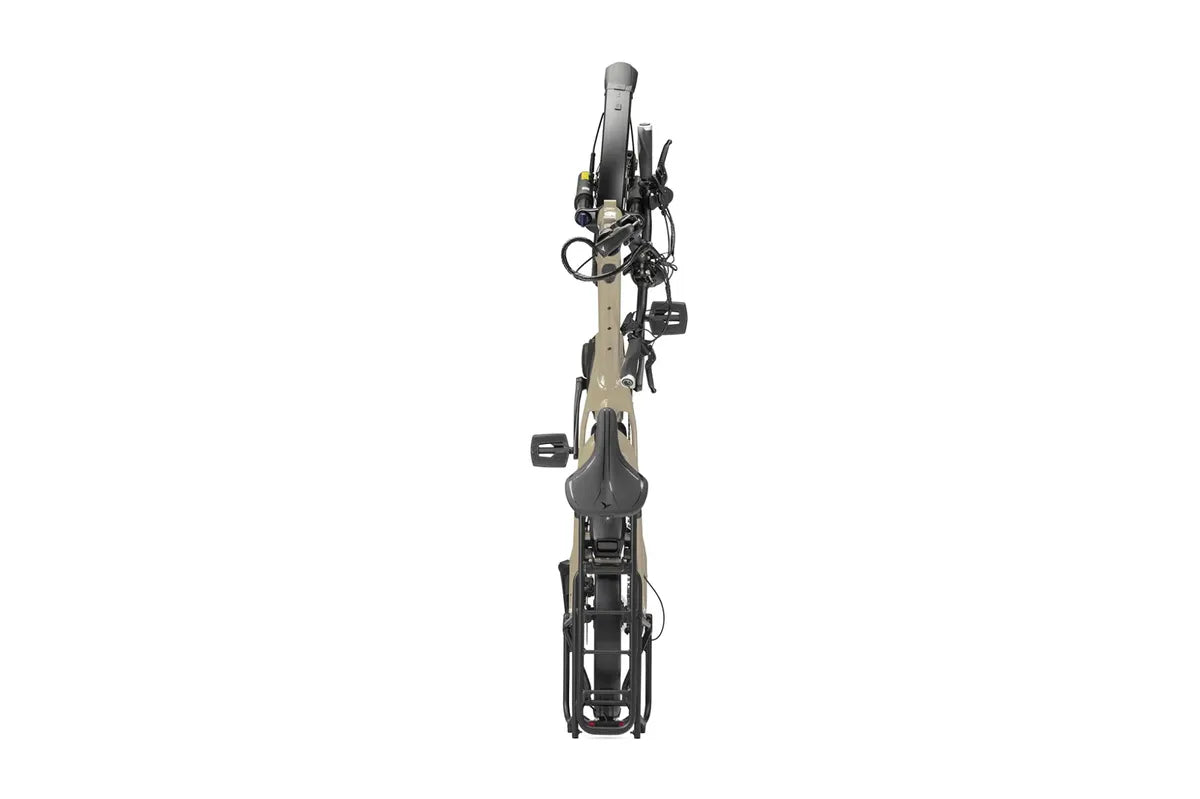

| FOLDING SIZE | 165 × 39.5 × 87 cm |
| FOLDING TIME | 5 seconds |
| FRAME SIZES | One size |
| DISTANCE: SEATPOST TO HANDLEBAR | 52 - 62.5 cm |
| DISTANCE: SADDLE TO PEDAL | 76 - 110 cm |
| SUGGESTED RIDER HEIGHT | 150 - 195 cm |
| MAX GROSS VEHICLE WEIGHT | 180 kg |
| MAX RIDER WEIGHT | 120 kg |
FRAME
| FRAME | Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg |
| FORK | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg |
COCKPIT
| HANDLEPOST | Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm |
| STEM | Tern Andros, adjustable, forged construction, patented technology |
| HEADSET | Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated |
| HANDLEBAR | Tern Sweep, 6061-AL, Tern Andros adapted |
| GRIPS/BAR TAPE | Ergon |
| SADDLE | Tern Upright by Velo |

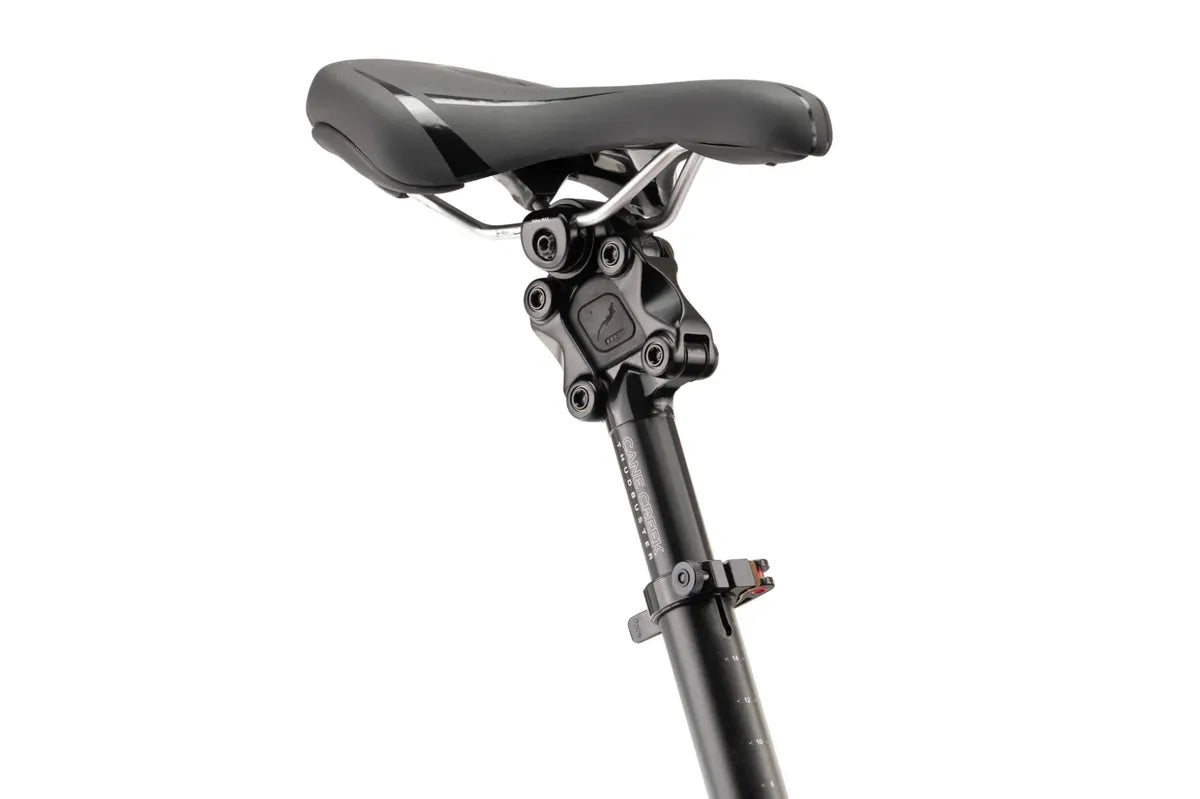

| SEATPOST | Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm |
| SEATPOST CLAMP | Tern Collar |
BRAKES

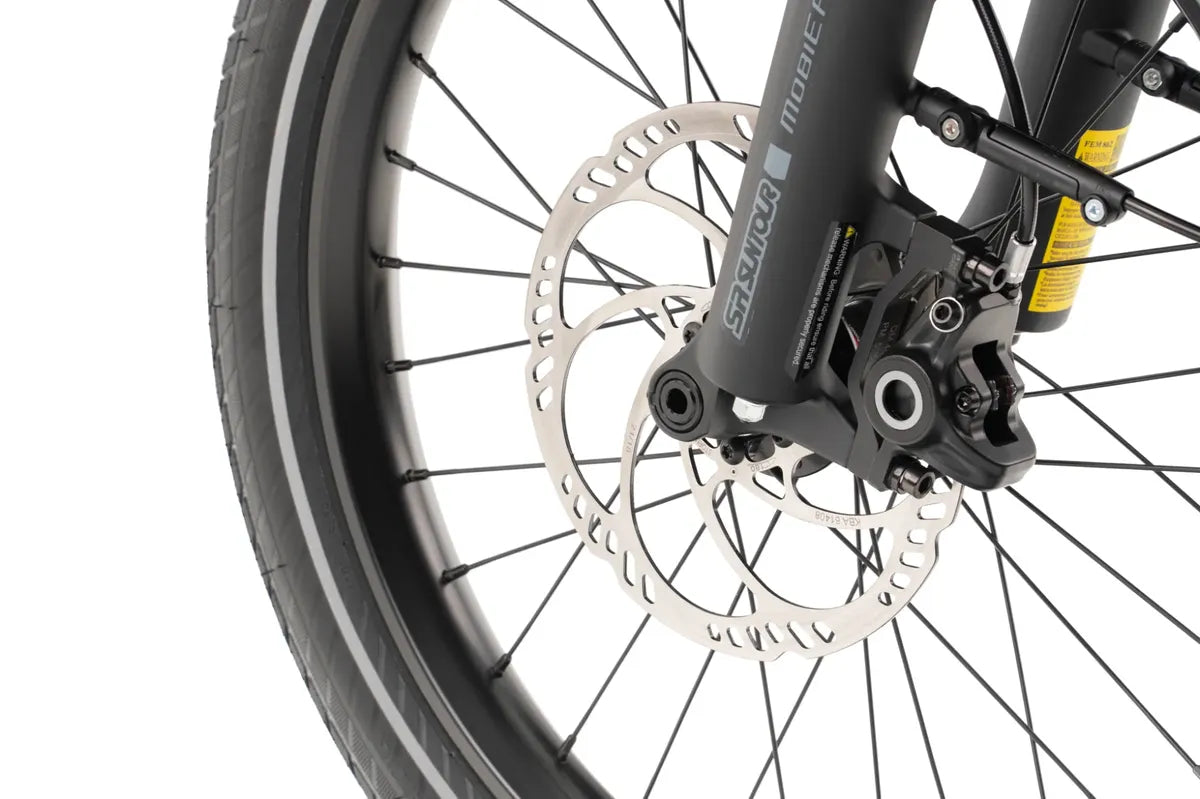

| FRONT BRAKE | Magura MT4, hydraulic disc, 180 mm rotor |
| REAR BRAKE | Magura MT4, hydraulic disc, 160 mm rotor |
| BRAKE LEVERS | Magura MT4 e-stop, hydraulic, with brake light sensor |
| BRAKE CABLE & HOUSING | Magura, hydraulic |
WHEELS

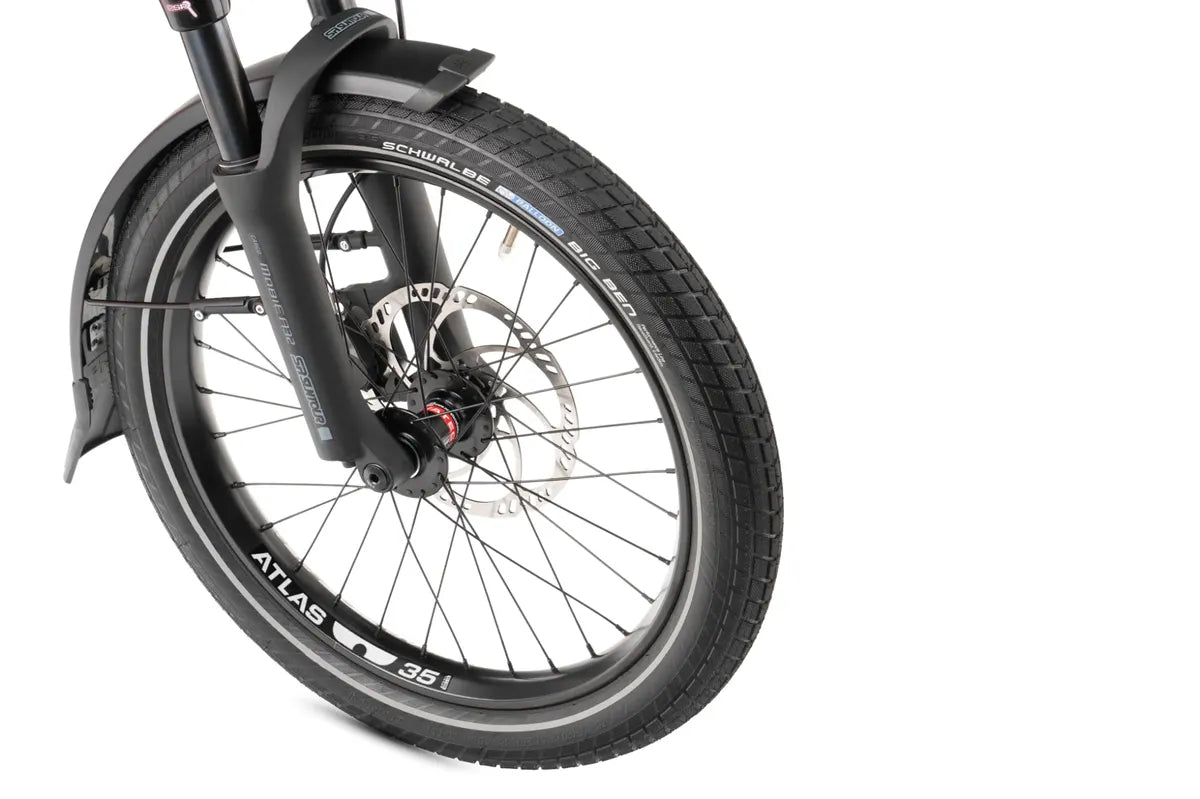

| FRONT WHEEL | Tern Atlas H, cargo wheel |
| REAR WHEEL | Tern Atlas H, cargo wheel |
| FRONT HUB | Novatec, Thru-axle, sealed bearings |
| REAR HUB | Novatec, sealed cartridge bearing, disc |
| SPOKES & NIPPLES | Stainless steel, double-butted |
| RIMS | Tern Atlas H, wide 35 mm |
| TIRES | Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification |
TRANSMISSION
| SHIFTER(S) | Shimano Deore, 1 x 11 spd |
| REAR DERAILLEUR | Shimano Deore Shadow+ |
| CRANKSET | Tern HSD custom |
| CASSETTE/FREEWHEEL | 11-36T, 11 spd |
| BOTTOM BRACKET | Motor integrated |
| CHAIN | KMC 11 spd, for eBike, EPT corrosion resistant coating |
| PEDALS | Urban with non-slip surface, sealed bearings |
| SHIFTER CABLE & HOUSING | Jagwire LEX-SL, slick treatment, alloy ferrules |
E-SYSTEM
| MOTOR | Bosch Performance Sport, 340% Assist, 75 Nm Torque, max speed 45 km/h |
| BATTERY | Bosch PowerPack 545 |

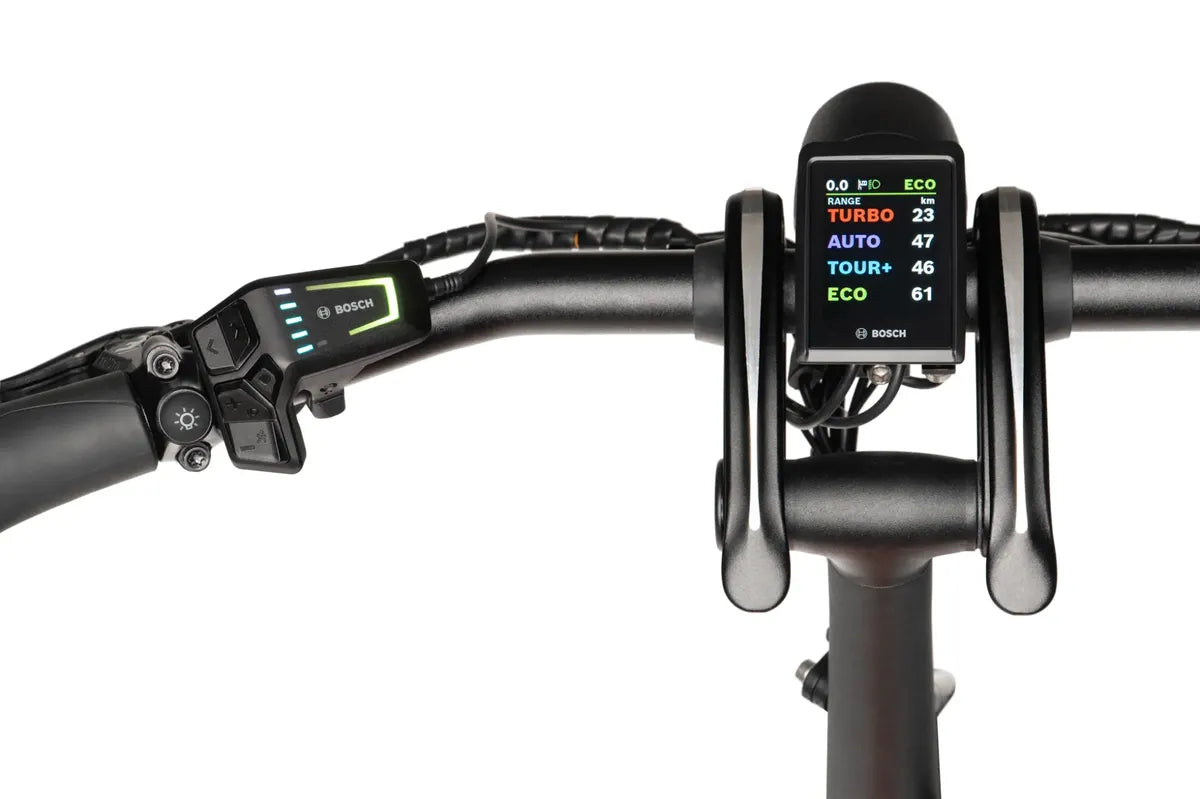

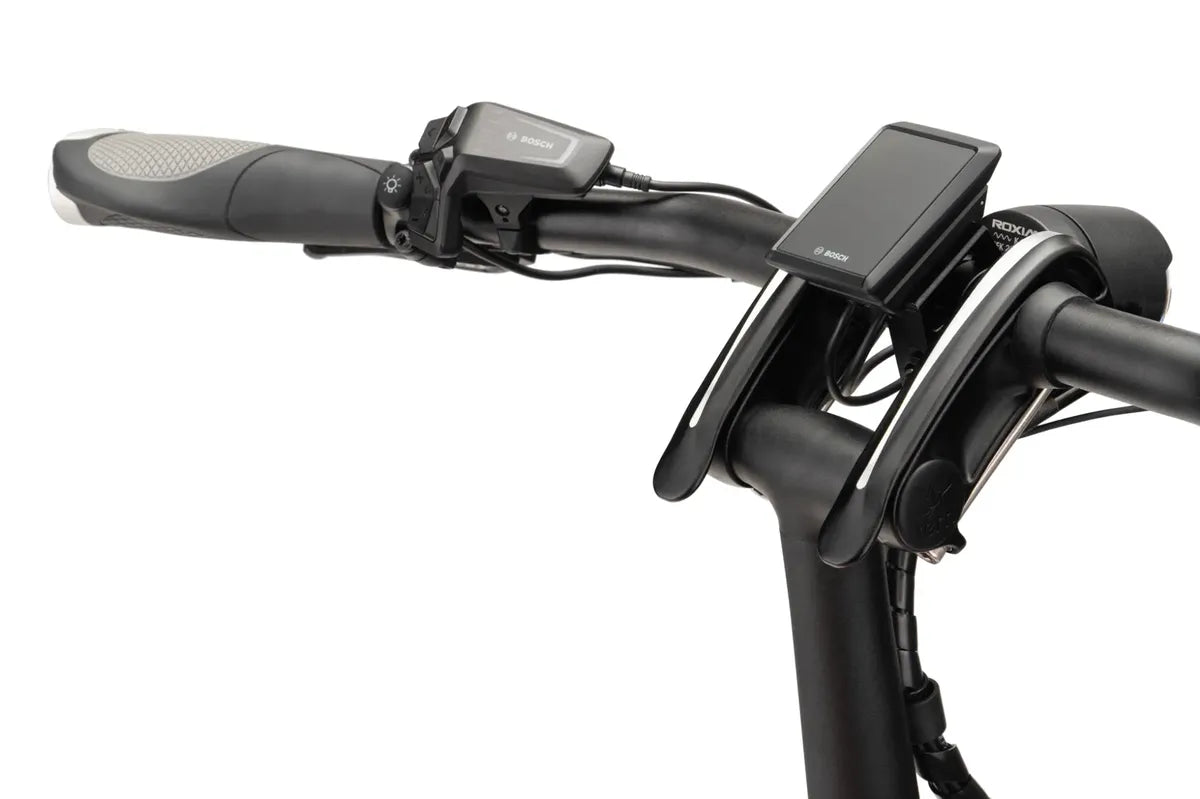

| DISPLAY | Bosch Kiox 300 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock |
| LOCK & ALARM | Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation |
| RANGE | 545 Wh: 51-121 km |
| CHARGER | 100-240V, 4A |
BELLS & WHISTLES
| BELL | Pitch Plus, brass |
| CHAINGUARD | Custom Bash Guard |
| KICKSTAND | Ursus, rear mount |
| LUGGAGE SOCKET | Combo Mount |

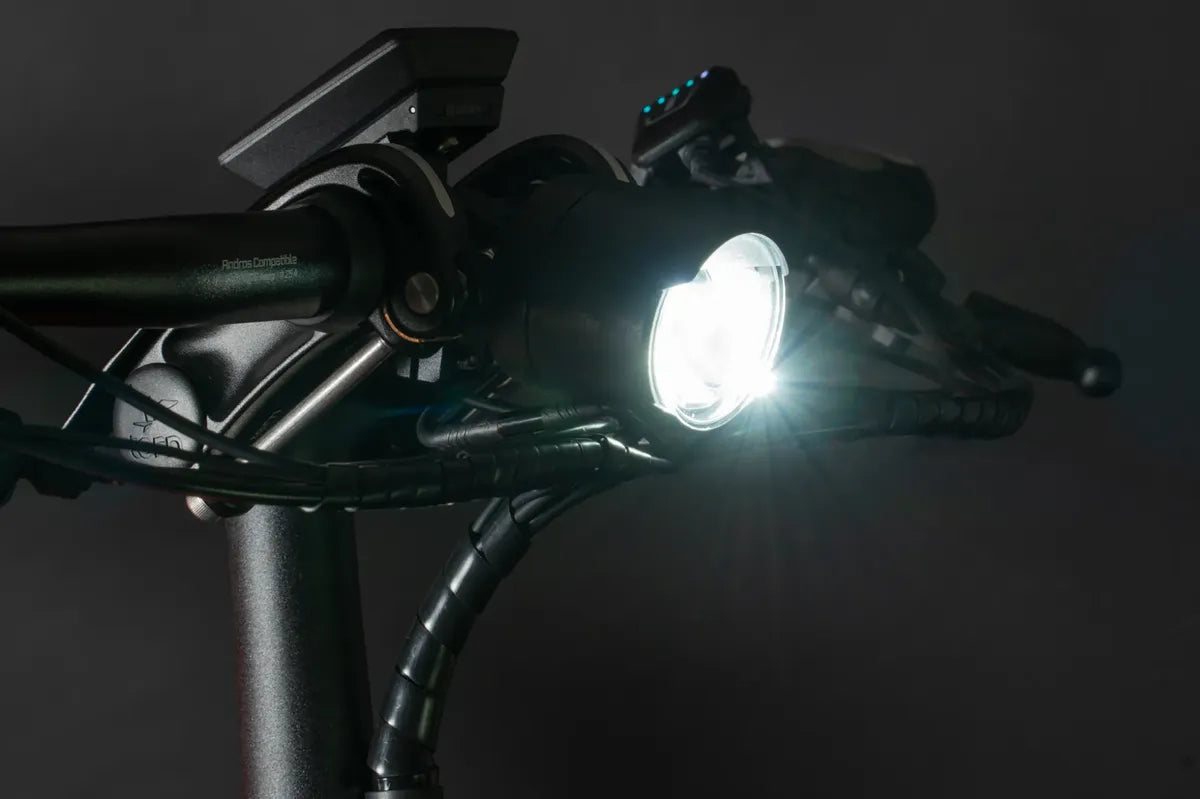

| FRONT LIGHT | Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam |
| REAR LIGHT | RearStop Brake Light, Always on |
| FENDERS | SKS, stainless hardware |
| RACK(S) | Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity |
| FRAME LOCK | ABUS, keyed-alike with Bosch battery |
*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
