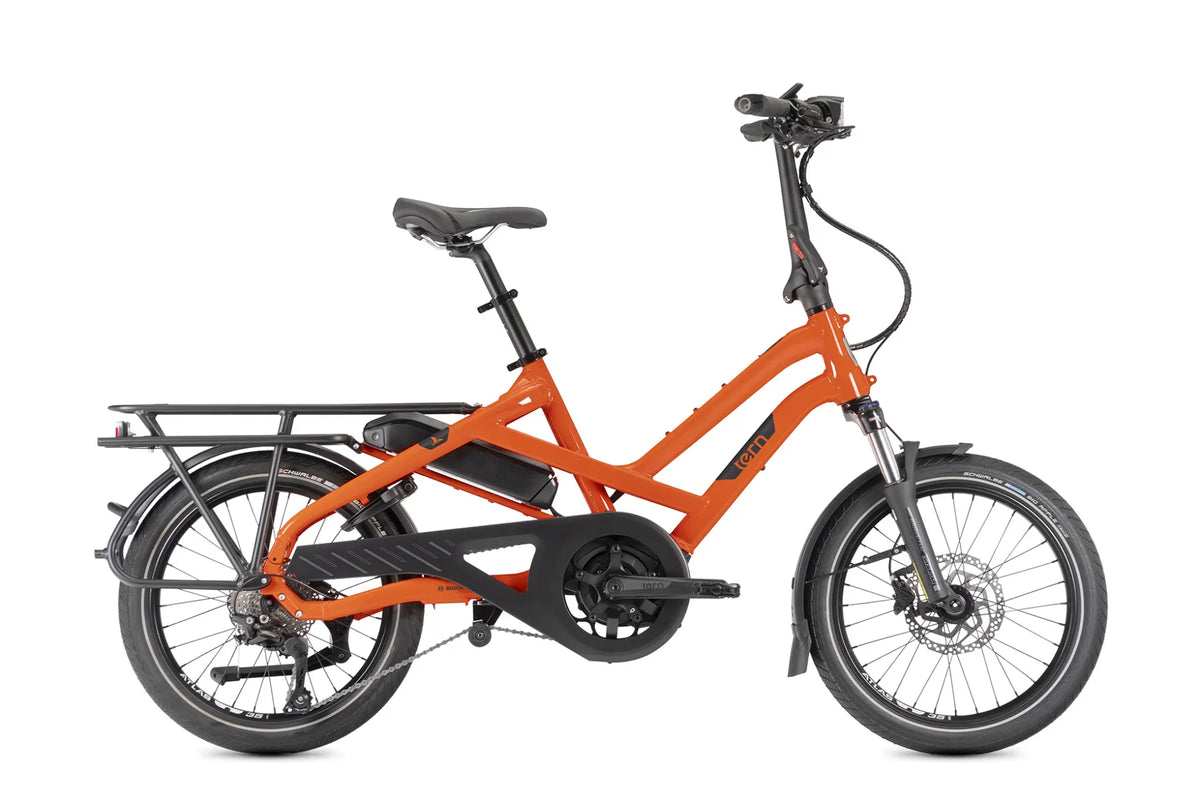

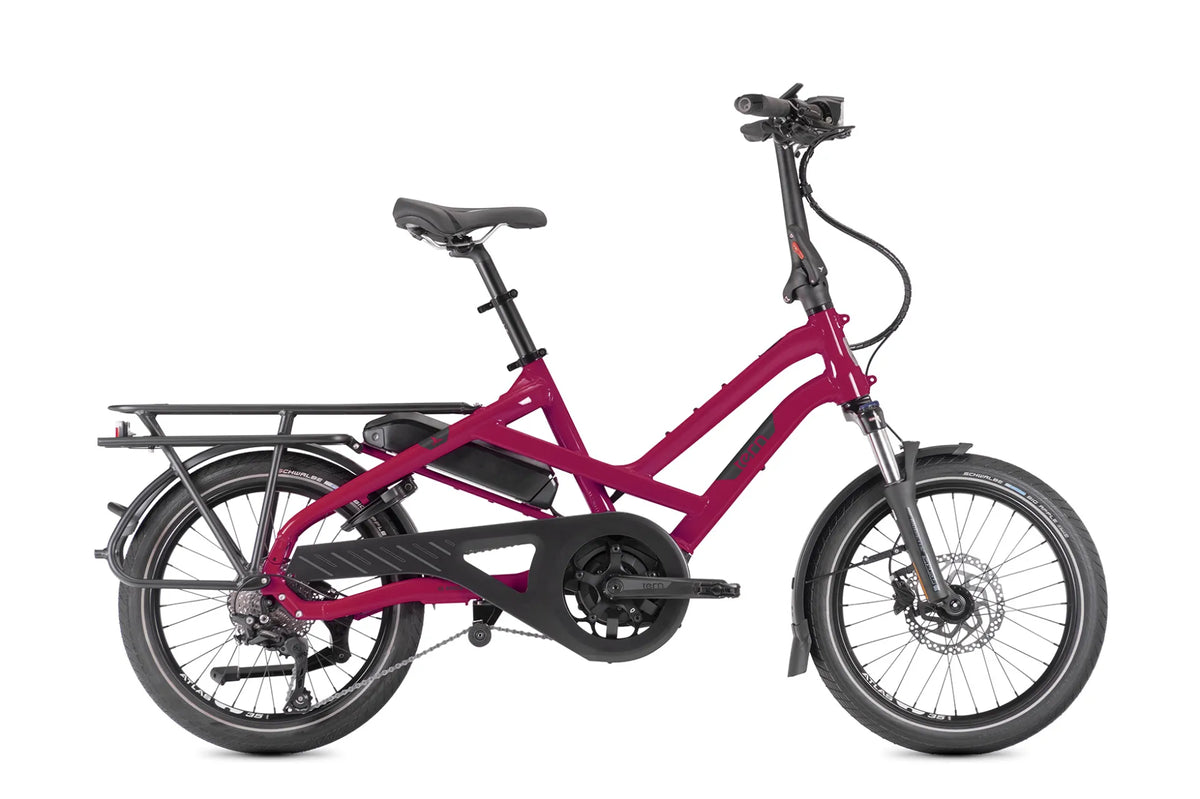

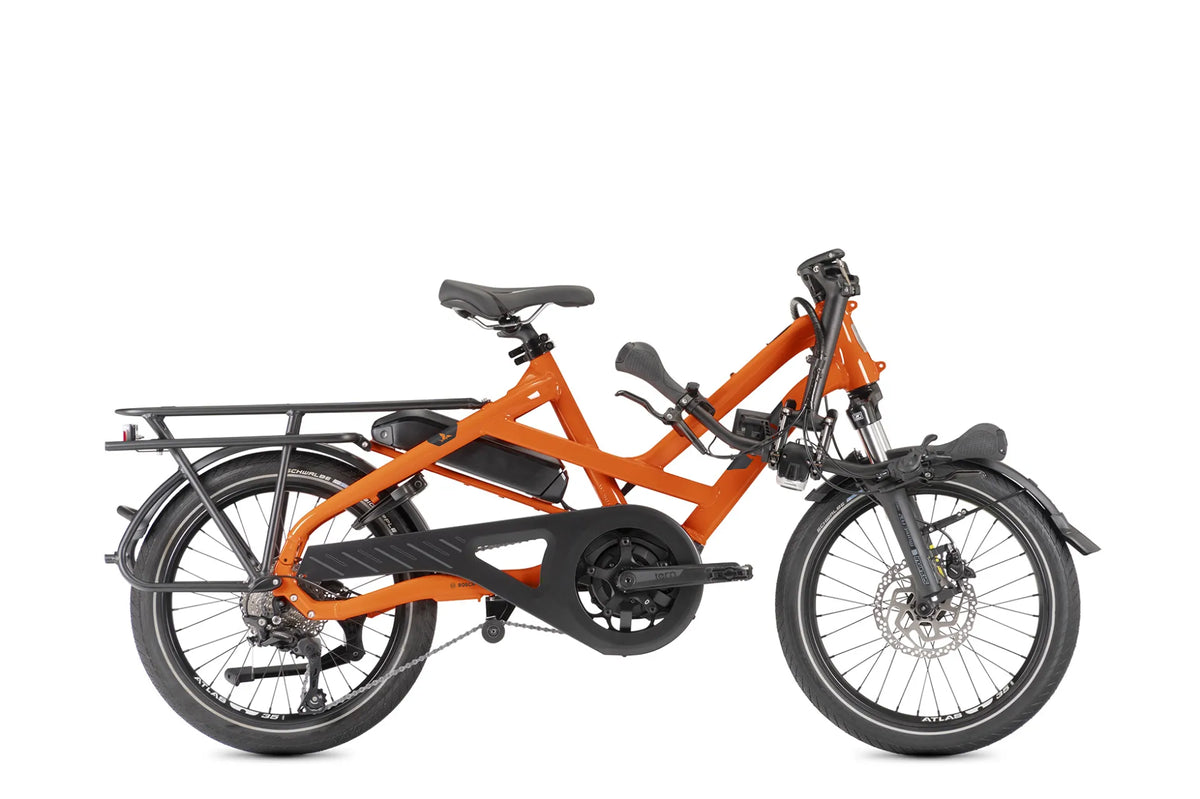

Tern HSD G2 P10 Bosch Performance 400wh

Tern HSD G2 P10 Bosch Performance 400wh

$8,390.00 NZD
$8,390.00 NZD $8,390.00 NZD
Rouleur Online Price Sold out
Taxes included. Shipping calculated at checkout.

Variant

In stock
  • NZ Based
    NZ‑Based Support – Talk to real riders who understand your needs.
  • Secure Payments
    Secure Payments – Shop Pay, Google Pay, Apple Pay & major cards accepted.
  • Warranty Protection
    Warranty Protection – All bikes backed by manufacturer warranties.
  • Easy Returns
    Easy Returns – Hassle‑free returns on unused gear.

What makes it a P10?

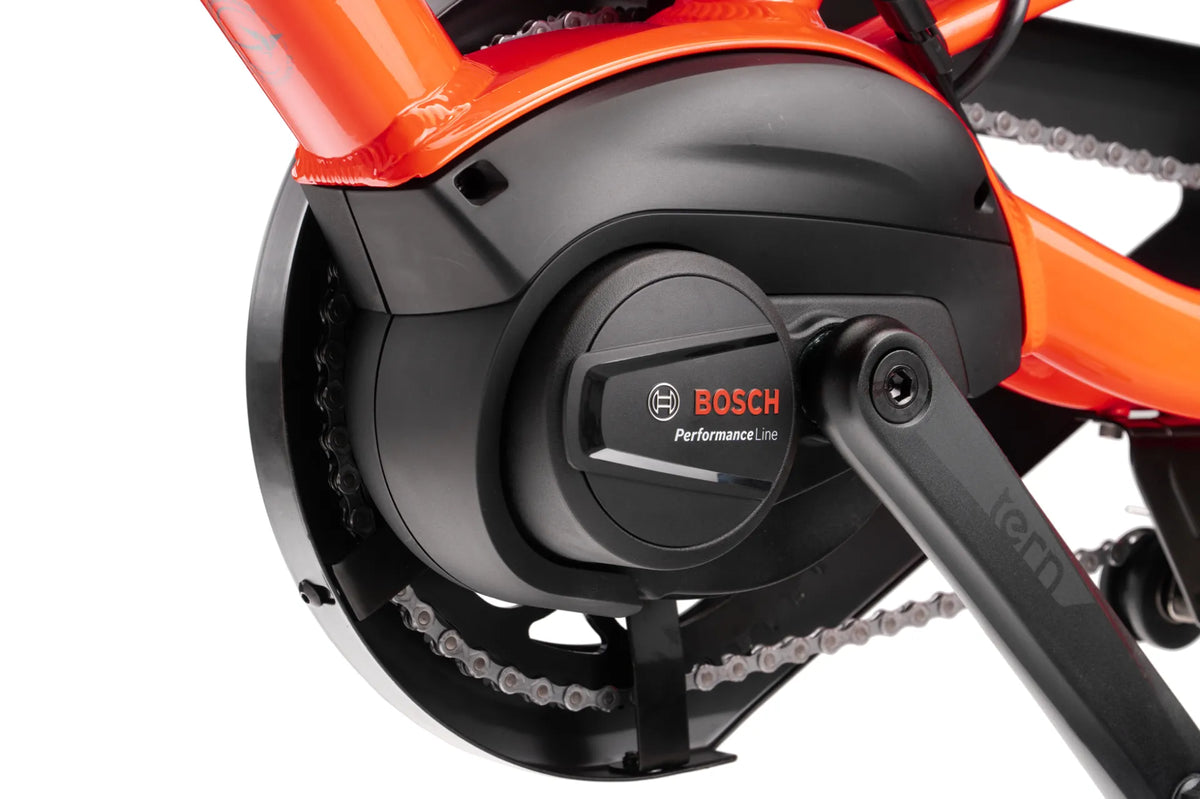

  • Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%

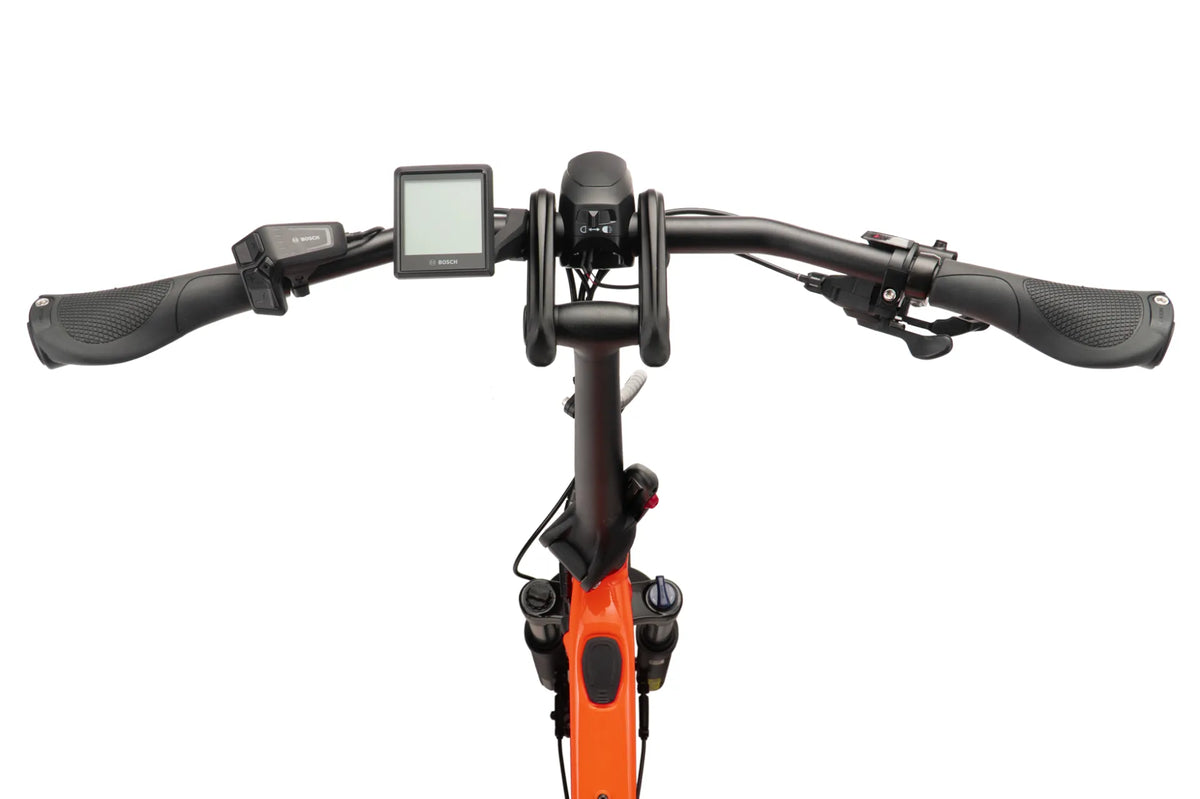

  • Detachable and easy-to-understand Intuvia 100 display
  • 1x10-speed Shimano Deore groupset with trigger shifter

HSD Highlights

  • Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
  • Bosch PowerPack 545 battery provides long range of up to 121 km
  • Cargo and passenger-ready: large rear rack capacity of 80 kg means you can carry one infant to a medium-sized adult passenger, or lots of cargo
  • Fits riders 150 - 195 cm with an easily-adjustable cockpit
  • Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg Maximum Gross Vehicle Weight

GENERAL INFO

SPEEDS 1 x 10
WEIGHT 27.6 kg
GEAR INCHES 2.36 - 7.72 m
FOLDING SIZE 165 × 39.5 × 87 cm
FOLDING TIME 5 sec
FRAME SIZES One size
DISTANCE (SEATPOST TO HANDLEBAR) 54.5 - 62.5 cm
DISTANCE (SADDLE TO PEDAL) 70 - 102.5 cm
SUGGESTED RIDER HEIGHT 150 - 195 cm
MAX GROSS VEHICLE WEIGHT 180 kg
MAX RIDER WEIGHT 120 kg


FRAME

FRAME Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg
FORK Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg


COCKPIT


HANDLEPOST Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
STEM Tern Andros, adjustable, forged construction, patented technology
HEADSET
Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated
HANDLEBAR
Tern Sweep, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE Ergon
SADDLE Tern Upright by Velo
SEATPOST Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP Tern Collar

BRAKES

FRONT BRAKE Tektro, hydraulic disc, 180 mm rotor
REAR BRAKE Tektro, hydraulic disc, 160 mm rotor
BRAKE LEVERS Tektro, hydraulic disc
BRAKE CABLE & HOUSING Tektro, hydraulic disc

WHEELS

FRONT WHEEL Tern Atlas H, cargo wheel
REAR WHEEL Tern Atlas H, cargo wheel
FRONT HUB Novatec, Thru-axle, sealed bearings
REAR HUB Novatec, sealed cartridge bearing, disc
SPOKES AND NIPPLES Stainless steel
RIMS Tern Atlas H, wide 35 mm
TIRES Schwalbe Big Apple, 55-406, puncture protection, Reflex

TRANSMISSION

SHIFTER(S) Shimano Deore, 1 x 10 spd, trigger
REAR DERAILLEUR Shimano Deore Shadow+
CRANKSET Tern HSD custom
CASSETTE/FREEWHEEL Shimano 11-36T, 10 spd
BOTTOM BRACKET Motor integrated
CHAIN KMC 10 spd, for eBike, EPT corrosion resistant coating
PEDALS Urban with non-slip surface
SHIFTER CABLE & HOUSING Jagwire LEX-SL, slick treatment, alloy ferrules

E-SYSTEM


MOTOR Bosch Performance, 340% Assist, 75 Nm Torque, max speed 32km/h
BATTERY Bosch PowerPack 545

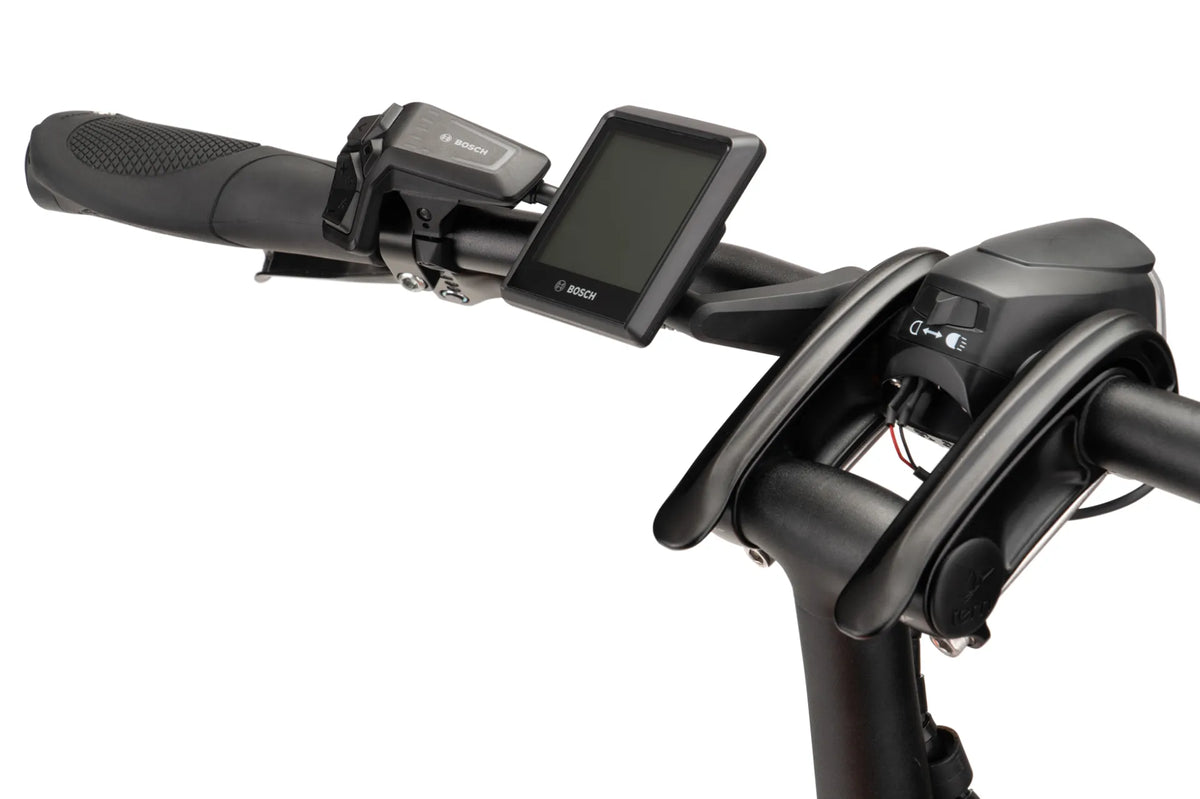

DISPLAY Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock
LOCK & ALARM Optional
RANGE 545 Wh: 51-121 km

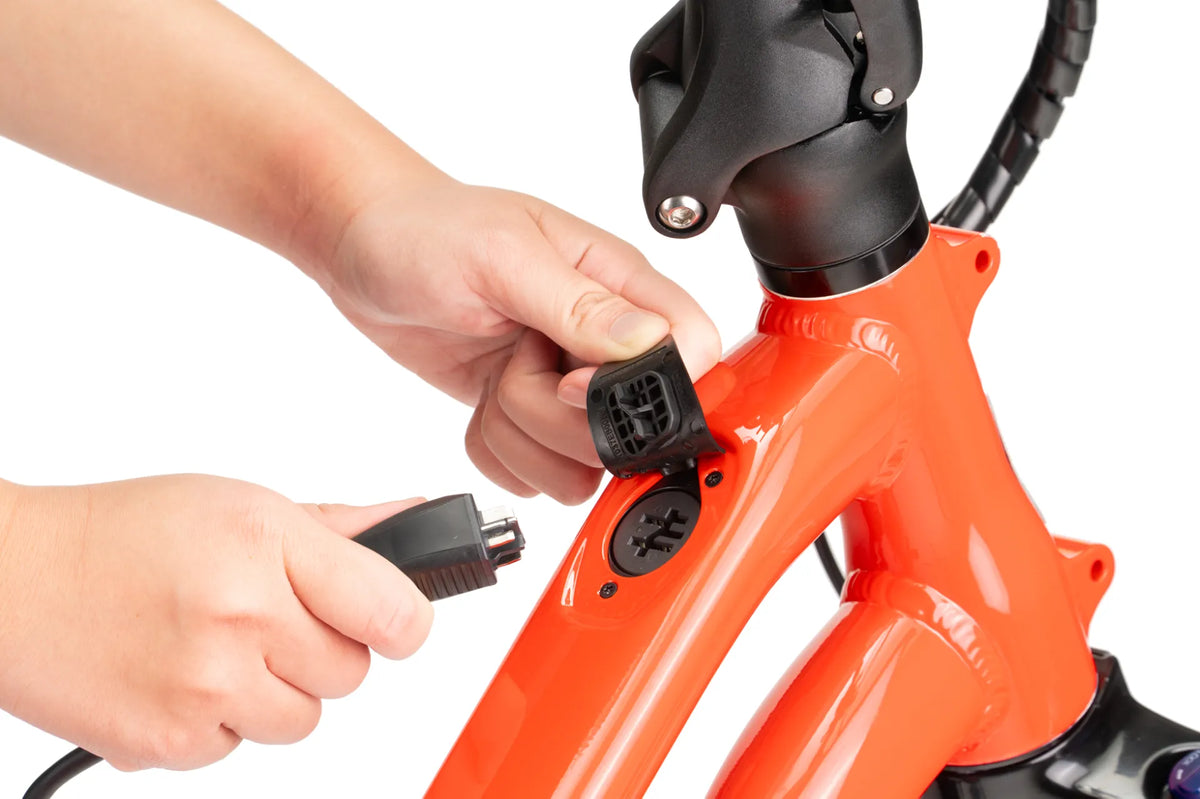

CHARGER 240V, 4A (AU/NZ)

BELLS & WHISTLES


BELL Pitch Plus, brass

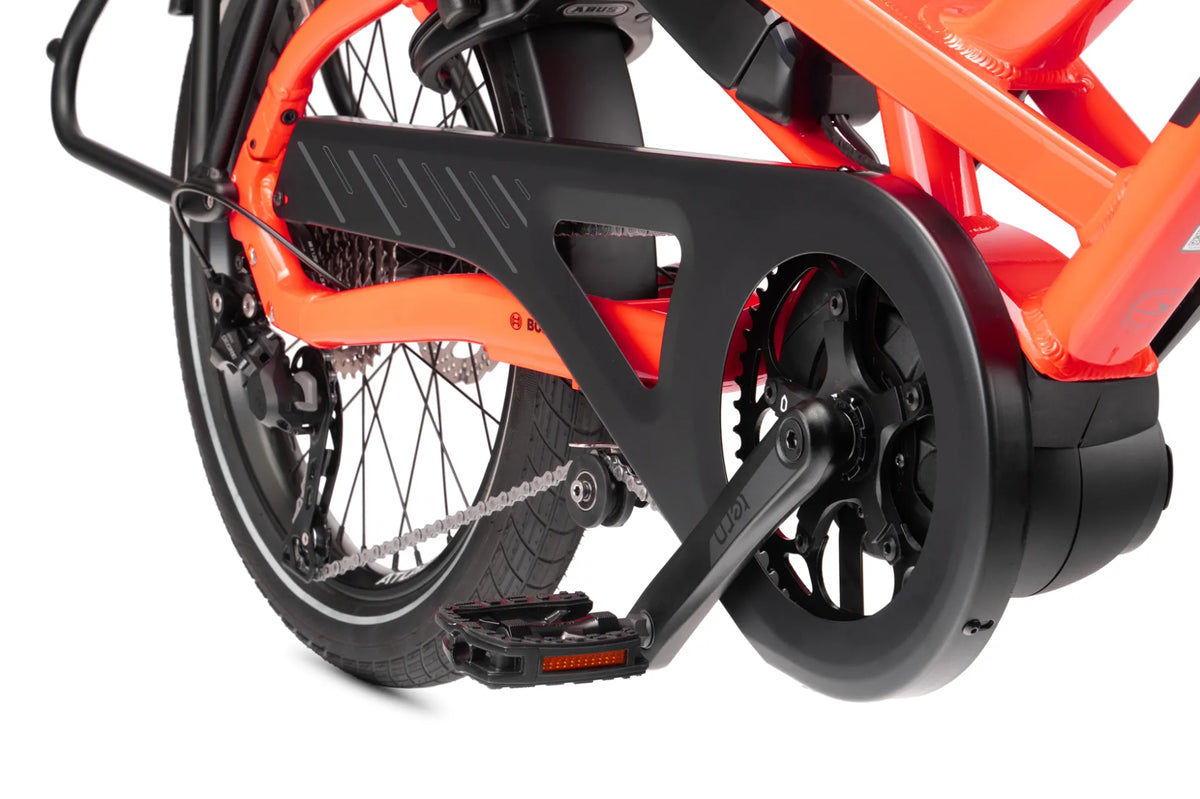

CHAINGUARD Tern Custom, full chain cover
KICKSTAND Ursus, rear mount
LUGGAGE SOCKET Combo Mount

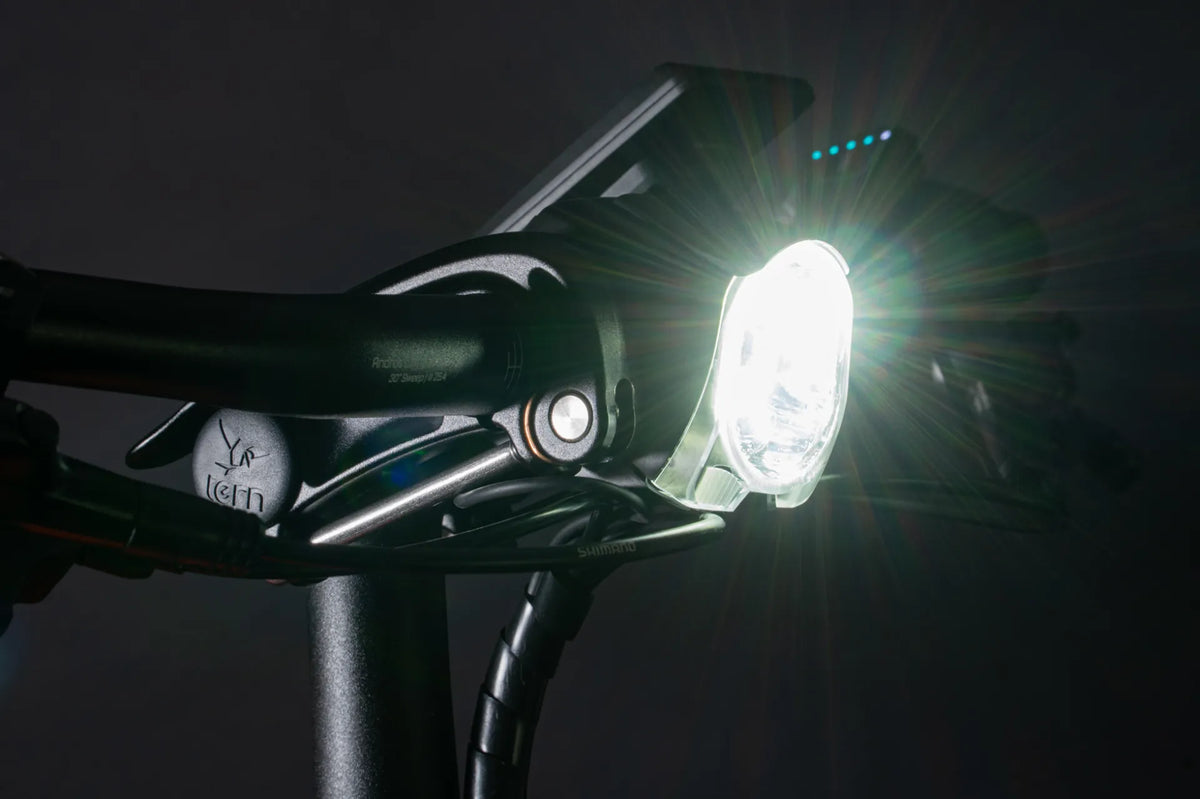

FRONT LIGHT Tern Valo Direct, 190 lumens
REAR LIGHT Herrmans H-Trace, for eBike
FENDERS SKS, stainless hardware
RACK(S) Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacity

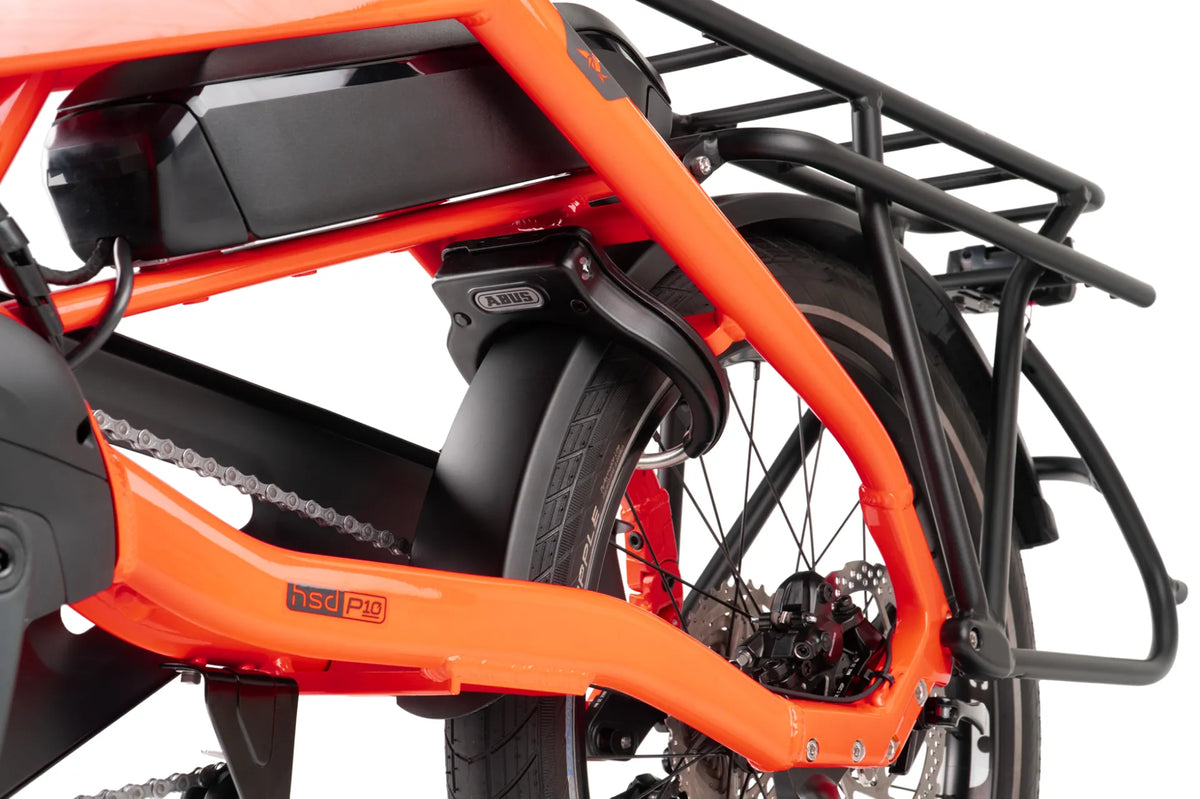

ACCESSORY ABUS, keyed-alike with Bosch battery



*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
