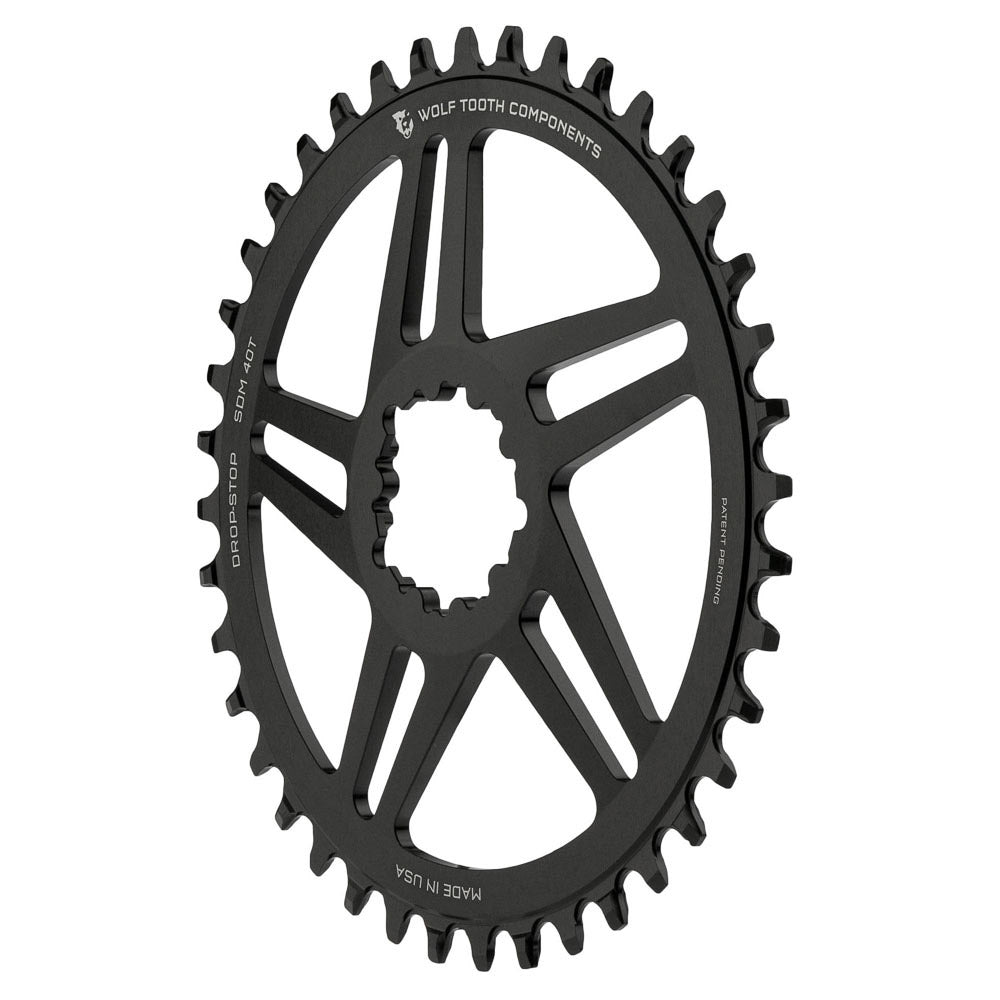

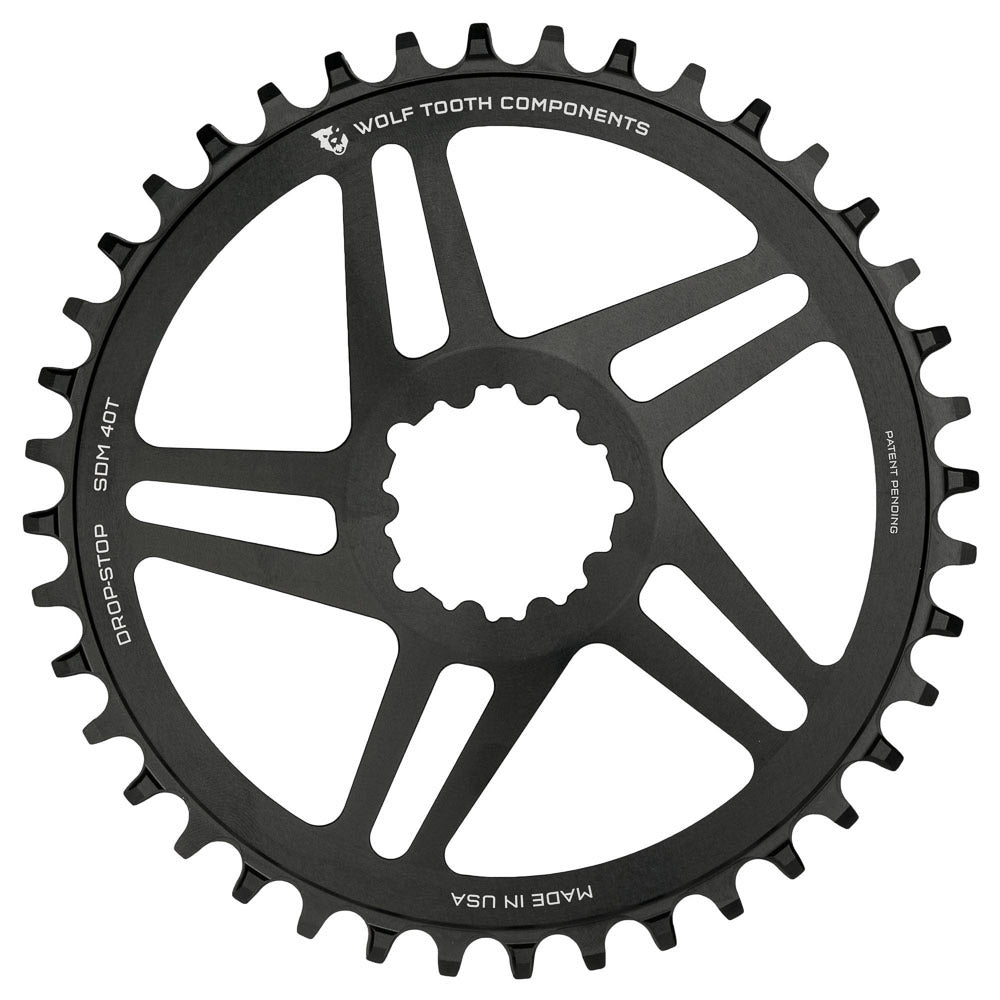

SRAM DM ROAD/GRAVEL (3-BOLT) DROP-STOP B CHAINRING

Our direct mount chainrings for SRAM cranksets replace your existing spider and chainring with one clean looking, lightweight, and stiff piece of machined billet. The direct mount chainrings for SRAM cranksets with the 3-bolt mounting interface.
They are available in the Drop-Stop B tooth profile, which is optimized for SRAM Flattop chain. It is also compatible with all other 9-, 10-, 11-, and 12-speed chains, except the Shimano HG+ 12-speed chain.


CHOOSE YOUR OFFSET

Standard Road/CX/Gravel: 6mm offset for cyclocross and road crank applications with 47mm chainline
Standard MTB: 6mm offset for non-Boost mountain bikes, GXP and long spindle BB30 cranks for 49mm chainline
Boost: 3mm offset for 52mm chainline
BB30: 0mm offset for BB30 short spindle cranks for 49mm chainline
Fat bikes: If your fat bike has a 170/177 rear hub spacing, use the standard 6mm offset
Praxis Works Road/CX cranks use the 6mm offset. Praxis Works mountain cranks use the 3mm offset for their DM-A and 0mm offset for their DM-B chainrings.


DROP-STOP TECHNOLOGY
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile delivers ultimate chain retention and mud shedding ability. Drop-Stop B is compatible with all chains except Shimano HG+ and Campagnolo 13-speed chains.

RECOMMENDATIONS

We recommend the use of a clutch style rear derailleur for the best chain security.
We recommend using a T25 L-Wrench or similar for removal and installation of the bolts. An L-wrench works best, since the crank spindle may contact a socket adapter and prevent it from engaging properly.
Use the same 3 bolts to attach the Wolf Tooth ring or we carry replacement bolts
For a longer lasting and more durable option, check out the CAMO System that offers stainless steel chainrings.



SPECIFICATIONS
Weights: 38T • 90g | 40T • 106g | 42T • 111g
Material: 7075-T6 aluminum
Made in the USA
