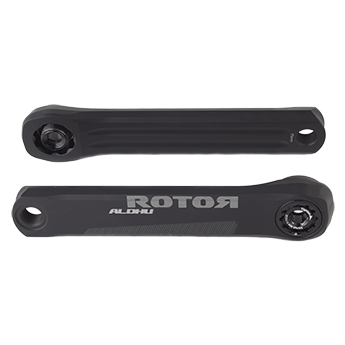

Rotor Aldhu Direct Mount Cranks

Rotor Aldhu Direct Mount Cranks

Regular price $549.90 NZD
Regular price Sale price $549.90 NZD
Rouleur Price Sold out
Taxes included. Shipping calculated at checkout.

In stock

ROTOR ALDHU® cranks. The innovative modular structure, together with axles and different chainring options, makes each component individually available to accommodate the current spectrum of riders and bike standards.

The ALDHU® incorporates OCP Mount technology, which enables the rider to fine-tune the orientation of ROTOR’s oval Q RINGS. The ALDHU® proprietary, patent-pending design is based on the modularity of each crankset component.

ROTOR ALDHU Cranks features:

Weight 347,8 g (175mm w/o chainrings & 30mm axle)
Sizes 155 mm | 160 mm | 165 mm | 167,5 mm | 170 mm | 172.5 mm | 175 mm
Q-Factor 147 mm (standard spindle) |152 mm (offset spindle)
Chainline (2X) 43.5 mm (standard spindle) | 46 mm (offset spindle)
Chainline (1X) 44.5 mm (standard spindle) | 47 mm (offset spindle)
Material 7055 aluminium
Compatibility BSA30, ITA30, BB30 bearing kit, PRESS FIT 4630, UBB4630, BB386, PRESS FIT 4130
