PROFILE DESIGN - ASC PRO 43 AEROBARS

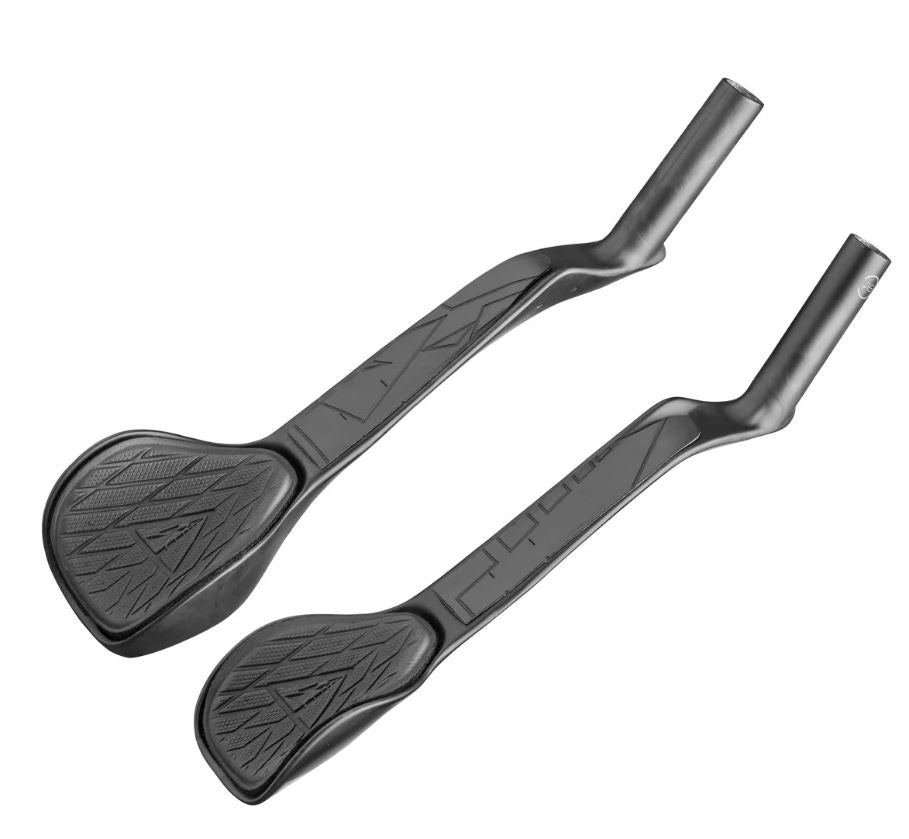

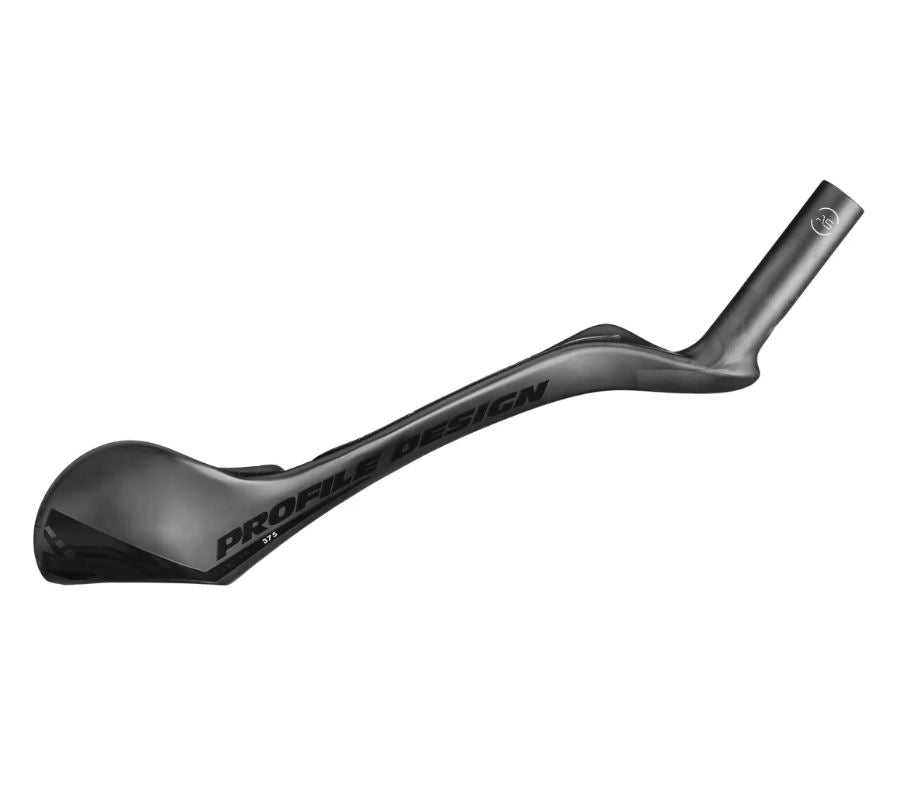

The ASC-Pro is the new, top level integrated extension from Profile Design. It has been carefully shaped to smooth airflow around the arm and minimise flat surfaces presented to the wind. The extension and grip are based on the 43ASC so will be familiar to any users of those extensions. The armcup is a highsided design to provide support for a narrow elbow position. Full carbon construction and a pared down bracket design work to improve both aerodynamics and the weight compared to standard brackets and extensions.
The ASC-Pro will be available in three sizes - 325mm, 350mm & 375mm. The natural angle of the extension is 15 degrees.
Tilt wedge kits can be purchased to alter this:
- Negative wedge kit: -1,-2,-3,-4,-5 as individual pieces
- Positive wedge kit: 1, 2, 3, 4, 5 as individual pieces.
They can be stacked to achieve a 25deg extension angle.

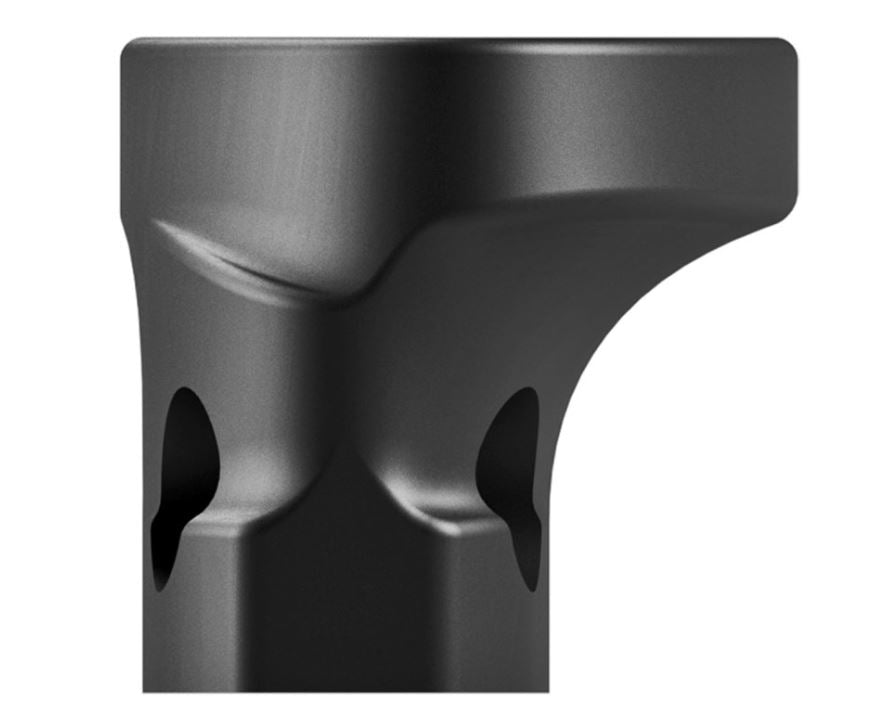

There are two bracket options:

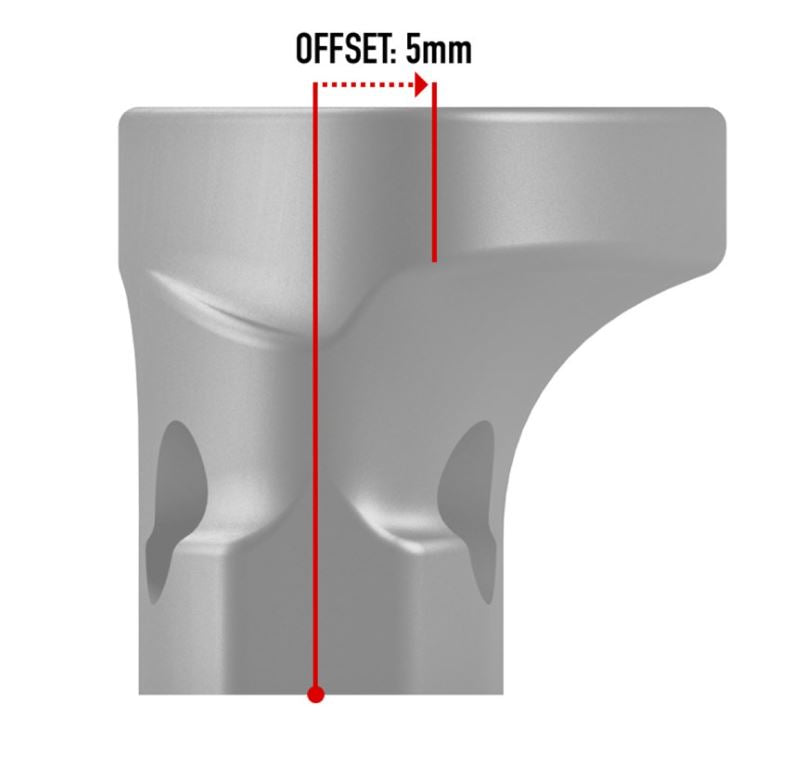

- 5mm offset - this gives the 170mm and 150mm armrest width positions
- 15mm offset, this gives the 190mm and 130mm armrest width positions

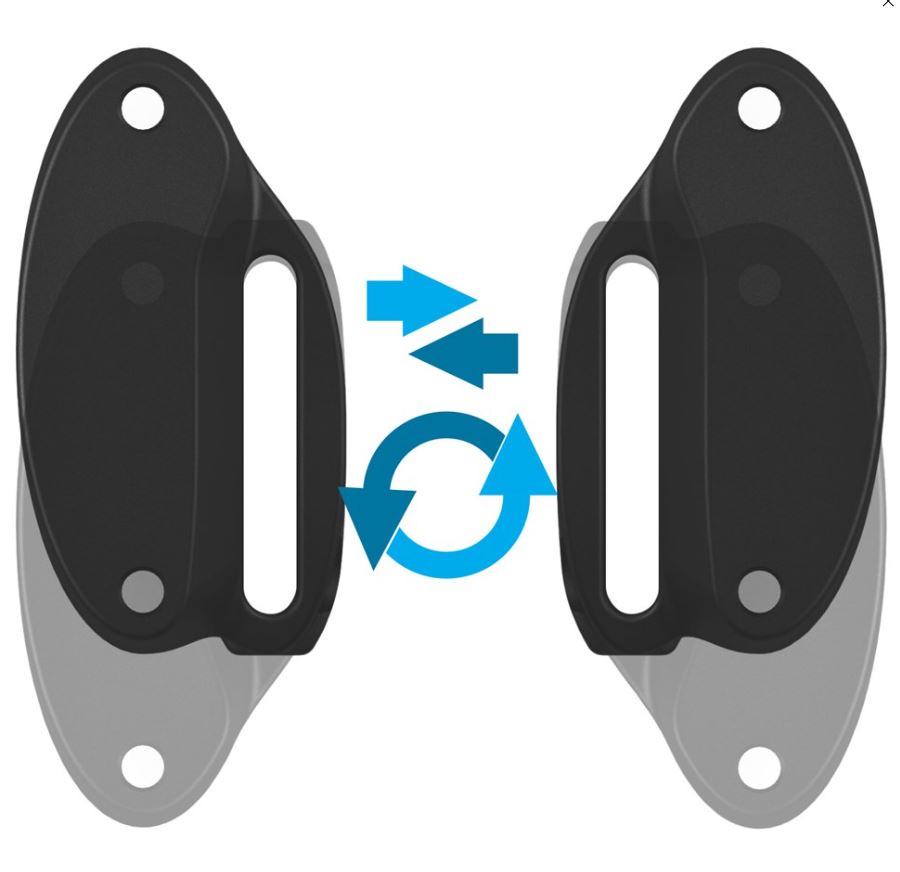

The brackets can also be flipped fore-aft to achieve a 20mm reduction in reach. If you use the rearward position you will also need a 10mm adaptor riser.
Compatibility
The ASC-Pro system is only compatible with bars that use the Profile Design A3 riser system, or the A2 system with an adaptor.
Please check here for the latest compatibility list: ASC Pro Compatibility Guide – Profile Design
A3 Platform Bars:
The ASC Pro brackets are part of the A3 riser system so they are natively compatible with any A3 components.
• Profile Design Wing20C+
• Profile Design Wing20C+ II
• Profile Design Wing Ultimate S
• BMC Speedmachine basebars
• Canyon CP0041
A2 Platform Bars:
Basebars that use the A2 riser system are also compatible, with the addition of an A2-A3 riser (note that this adds 15mm of riser stack).
• Profile Design Aeria Ultimate
• Canyon H30
• Cube Aerium C:68
• Orro Venturi Tri
• Scott Plasma 5 Creston IC TT
• Wilier Turbine and Turbine SL
Note that A2 platform bars require the A2-A3 adaptor which adds 15mm of stack
The bracket system does not match the bolt spacing of any other system and will not be able to be safely attached to any bar other than those listed above.
