PARK TOOL - IR-1.2 - INTERNAL CABLE ROUTING KIT

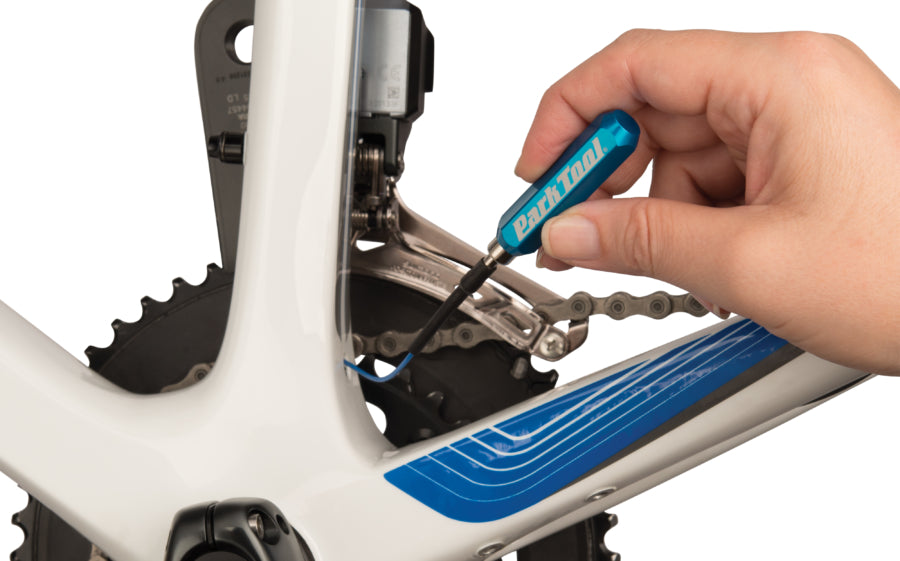

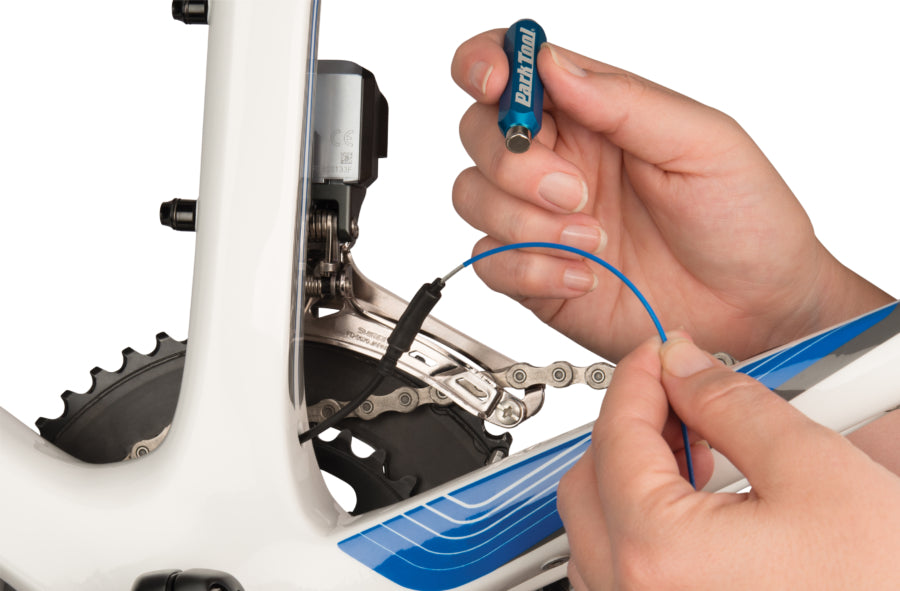

Take the guesswork out of installing cables, wires and housing inside the frame. The IR-1.2 speeds the internal frame routing of electric wires, shift cable/housing, brake cable/housing and hydraulic tubing on carbon fibre, titanium, and aluminium frames. Kit includes four plastic coated 250cm cables with attached magnets and unique fittings plus an external guide magnet to speed operation. Newly updated to include a dedicated E-tube Di2 cable connector that easily pulls through a 6mm frame hole. Opposite polarity magnets on cables seek and attach inside frame tubes, making it easy to route through frame entrances and exits. Works with any size frame including tandems. A true time and frustration saver!

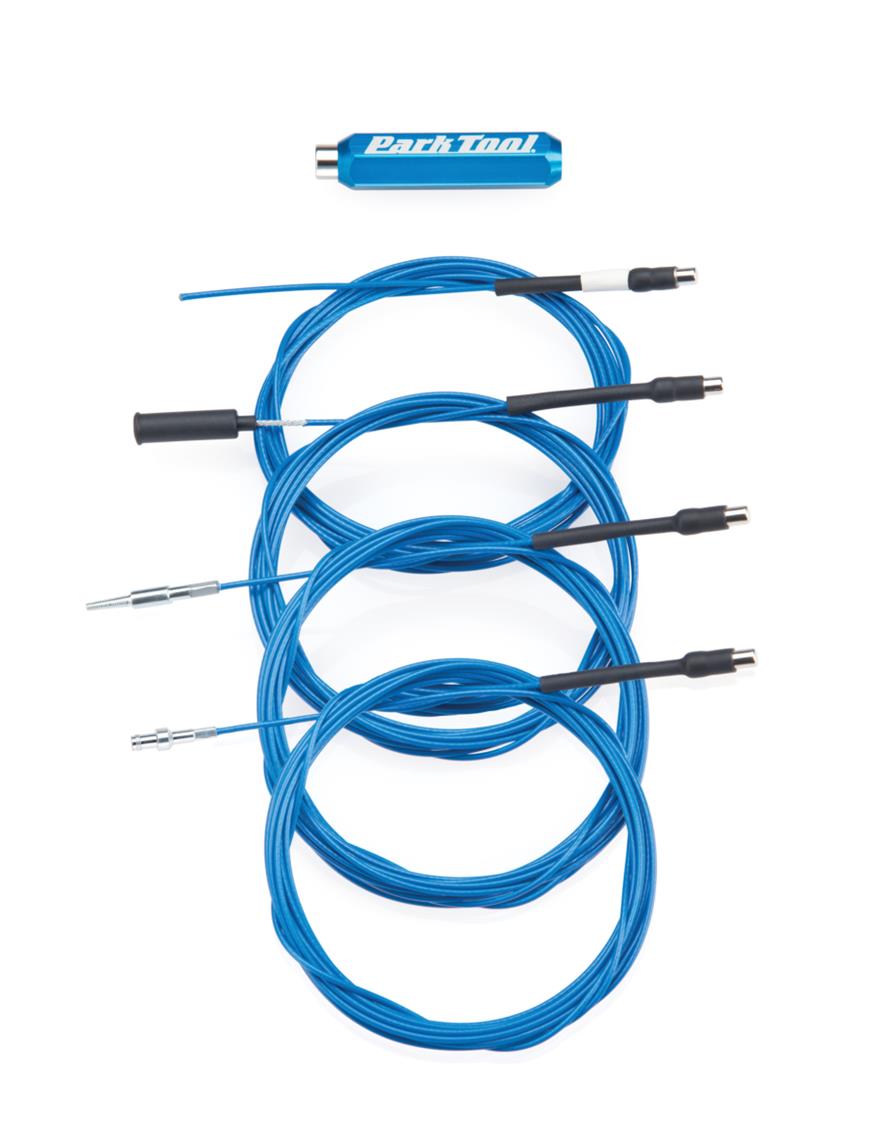

Includes four 250 cm (98") cables with attached magnets and unique fittings:
- Barbed adaptor — Threads into the end of brake & shift cable housing as well as hydraulic brake hose
- Rubber adaptor — Securely holds electronic shifting wire such as Shimano® Di2, SRAM® RED® eTAP®, FSA® K-Force® WE®, and Campagnolo® EPS
- Di2®-specific adaptor — Specially-designed connector clips into the end of the Shimano® E-tube® Di2® shift cable, and is perfectly sized to fit into frame holes as small as 6 mm
- Reverse-polarity magnet — Used in conjunction with any of the other guide cables - feeds into the opposite end and meets the leading cable in the middle, aiding in routing on frames with tricky interior shapes
