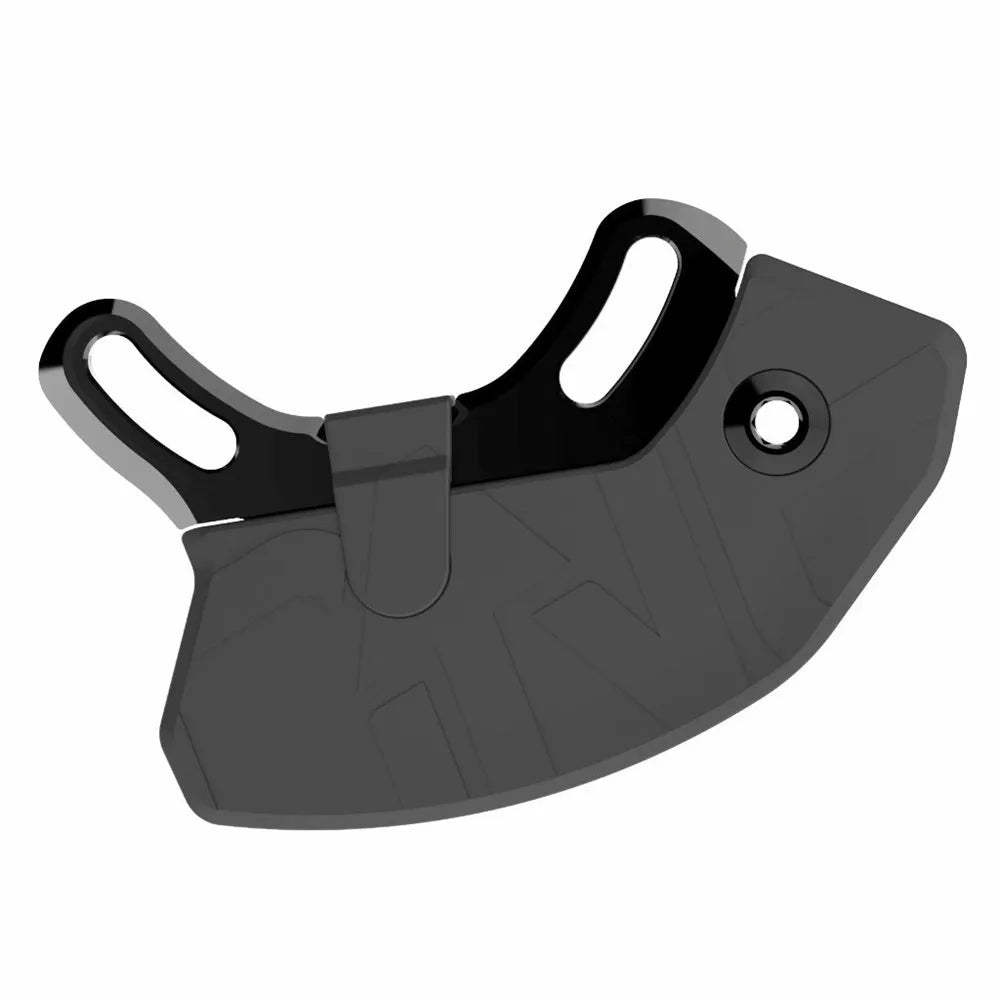

OneUp ISCG05 UNDERBASH

OneUp ISCG05 UNDERBASH

$89.99 NZD
$89.99 NZD
Rouleur Online Price Sold out
Taxes included. Shipping calculated at checkout.
Color: Black

Low stock

  • NZ Based
    NZ‑Based Support – Talk to real riders who understand your needs.
  • Secure Payments
    Secure Payments – Shop Pay, Google Pay, Apple Pay & major cards accepted.
  • Warranty Protection
    Warranty Protection – All bikes backed by manufacturer warranties.
  • Easy Returns
    Easy Returns – Hassle‑free returns on unused gear.

If you're not looking for chain retention or your bike has an integrated chain guide, you can still add some bash protection with the OneUp ISCG05 Underbash.

The Underbash includes 3 different sizes of bash plate for compatibility with chainrings from 28-36T. Designed for frames with 2 ISCG05 tabs only (Evil, Rocky Mountain, etc). If your bike has three ISCG05 tabs, check with the frame manufacturer to ensure the lower tabs are strong enough for a bash application. Failure to do so could result in frame damage.

FEATURES

  • Install without removing your crank
  • Single tool install and adjustment
  • Boost compatible
  • Oval Compatible
  • Stainless Steel hardware
  • Includes 3 bash plates (28-30T, 32-34T, 36T)

    SPECS

    Weight:  68g 32-34T
    Capacity: 28-36T
    Chainline: 2.5mm adjustment
    Mount: ISCG05 2-Bolt ONLY
    Color: Black
    Material: 7075 aluminum, glass reinforced thermoplastic

    COMPATIBILITY
    • Not compatible with E-bikes.



    UNDERBASH SETUP INSTRUCTIONS

    1. Hold backplate directly against ISCG05 tabs. Check for clearance between the back side of the bashplate and the bike frame (use included 2.5mm spacers if necessary to space the backplate away from the frame).
    2. Rotate backplate to desired location and torque bolts to 5Nm



    BASH REPLACEMENT INSTRUCTIONS

    1. Remove Underbash from bike
    2. Remove bolt retaining clip from rear bash plate bolt by pushing a 4mm hex through the bolt from the backside of the Underbash.
    3. Remove Bash bolts using a 5mm hex
    4. Select desired bash plate and reinstall bash bolts to 6Nm
    5. Reinstall bolt retaining clip on the rear bash plate bolt
    6. Reinstall Underbash onto bike
