Merida

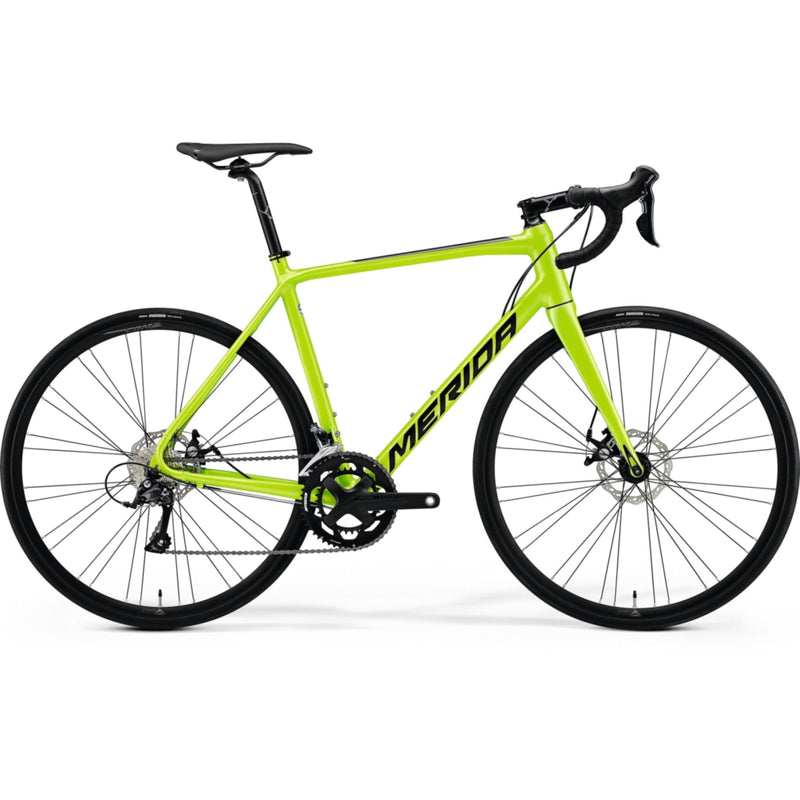

Merida Scultura 200 - Matt Green/Black

Merida Scultura 200 - Matt Green/Black

$1,419.00 NZD
$1,899.99 NZD $1,419.00 NZD
Rouleur Price Sold out
Taxes included. Shipping calculated at checkout.

Size

Low stock

KEY FEATURES

  • Lightweight 6066 triple butted aluminium frame
  • Full carbon tapered fork
  • Less aggressive geometry for lasting ride comfort
  • Shimano Sora 9-speed shifters and derailleurs
  • FSA Omega chainset
  • Promax mechanical disc brakes
  • Merida Comp SL wheels, 700 x 25c Maxxis tyres

The perfect marriage of lightweight, endurance enhancing comfort and aerodynamic performance, the new Scultura is Merida’s most rounded road bike ever. While building on its heritage as a lightweight climbing bike, design details from the award-winning Reacto aero bike have broadened its abilities even further. It combines outstanding comfort with whippet-like acceleration and class-leading climbing pedigree. The Scultura 200 model is ideal for riders who are getting into the sport as well as for those who prefer a slightly more upright position. Built around a lightweight triple butted aluminium frame that features a less aggressive geometry and seating position compared to the high-end Scultura models, for long and efficient miles on the road. Powerful and easy to modulate disc brakes deliver constant braking power even in wetter conditions, while the reliable Shimano/FSA drivetrain and proven Merida parts ensure the 200 will be your trusted companion for years to come.



Specifications

Axles: FRONT: MERIDA EXPERT SL / REAR: MERIDA EXPERT SL, including removable lever, 6/4mm allen key
Bottom bracket: FSA BB-AL86/Ø19
Brakes: Promax DSK-330R, Mechanical disc
Chain: KMC M99
Crankset: FSA Omega, 50-34T / 165 mm-XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
Derailleur rear: Shimano Sora, GS
Fork: SCULTURA CF2 disc, 700x28C Max Tyre Width
Frame: SCULTURA DISC LITE, Aluminium, 700x28C Max Tyre Width, 100x12/142x12, Pressfit Bottom Bracket
Freewheel: Microshift CS-9S, 11-28T, 9-speed Cassette
Grip: MERIDA ROAD Comp
Handlebar: MERIDA EXPERT SL, Aluminium, 380mm(XXS) , 400mm (XS-S) , 420mm (S/M-M/L) , 440mm (L-XL)
Handlebar stem: MERIDA COMP CC, 31.8, Aluminium, -6° Rise / 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
Headset: MERIDA M2339 Neck
Hubs: FRONT: Joytech D981-12, 100x12, 28H, 6 SBD / REAR: Joytech D982TSE-R, 142x12, 28H, 6 SBD
Rim: MERIDA COMP SL, 17mm Inner Width, 22mm Rim Height, Aluminium, Tubeless ready (tubeless tape and valves not included)
Rotor front: Promax 160G, 160mm
Rotor rear: Promax 160G, 160mm
Saddle: MERIDA COMP SL, V-mount
Season: 2022
Seat clamp: MERIDA EXPERT
Seat post: MERIDA COMP CC, MAT aluminium, 27.2mm, 5° Setback
Spokes: Black stainless
Tyre front: Maxxis Pursuer, 700x25C, fold
Tyre rear: Maxxis Pursuer, 700x25C, fold
Weight: 9.92kg / Max Load Weight: 120kg
Wheel size: 700c



Geometry

Frame Size XXS XS S S/M M/L L XL
Tyre Sizes 28" 28" 28" 28" 28" 28" 28"
ST seat tube [mm] 440 470 500 520 540 560 590
TT top tube [mm] 515 520 530 545 560 575 590
CS chain stay length [mm] 408 408 408 408 408 408 408
HTA head tube angle [°] 71 71 72 73 73 73 73.5
STA seat tube angle [°] 75 74.5 74 74 73.5 73 73
BD bottom bracked drop [mm] 66 66 66 66 66 66 66
HT head tube [mm] 120 130 140 150 170 190 215
FL fork length [mm] 374 374 374 374 374 374 374
R reach [mm] 376 373 375 386 390 394 401
S stack [mm] 519 529 542 555 574 593 619
WB wheel base [mm] 982 983 979 985 995 1005 1014
SH stand over height [mm] 697 720 744 762 779 798 826
