Enduro

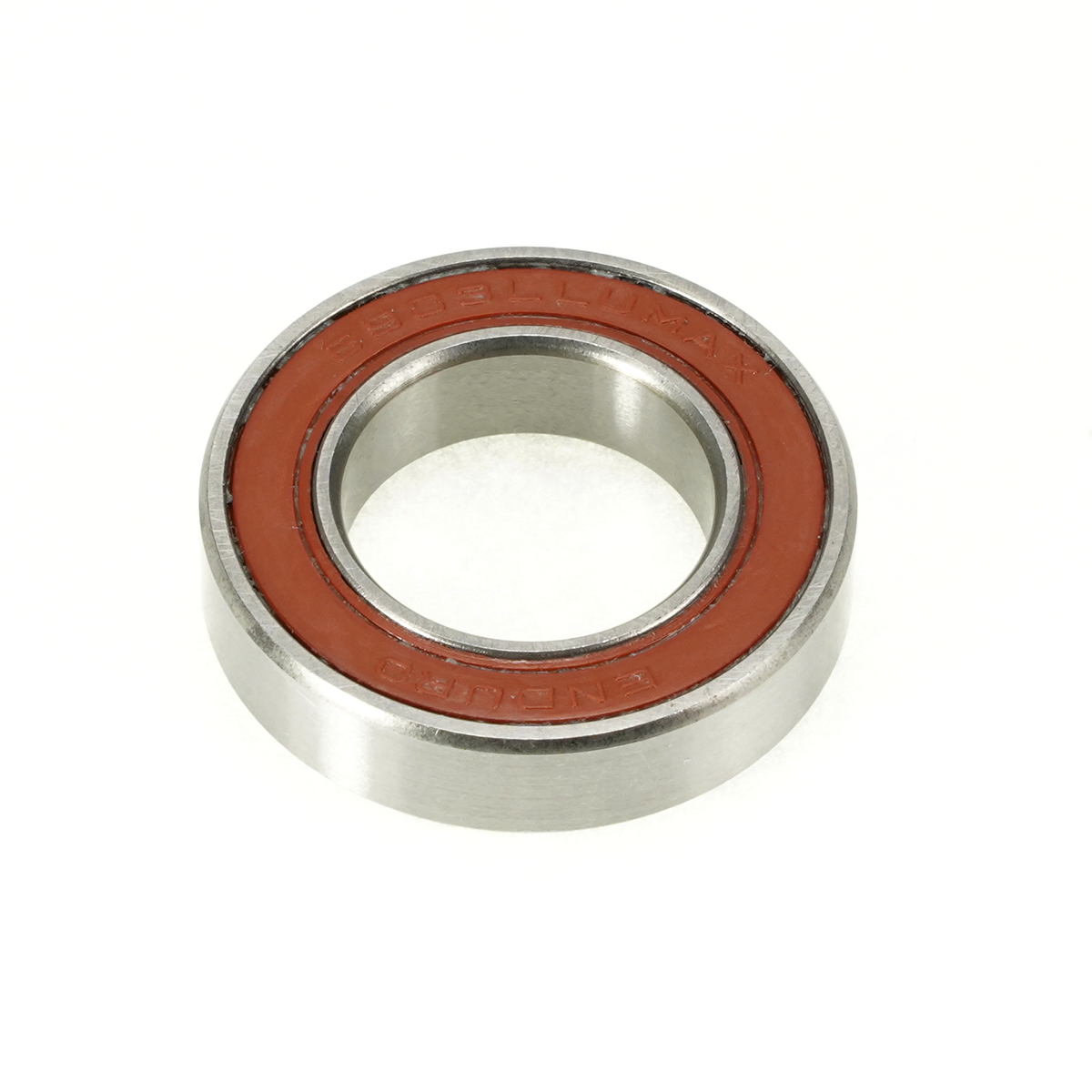

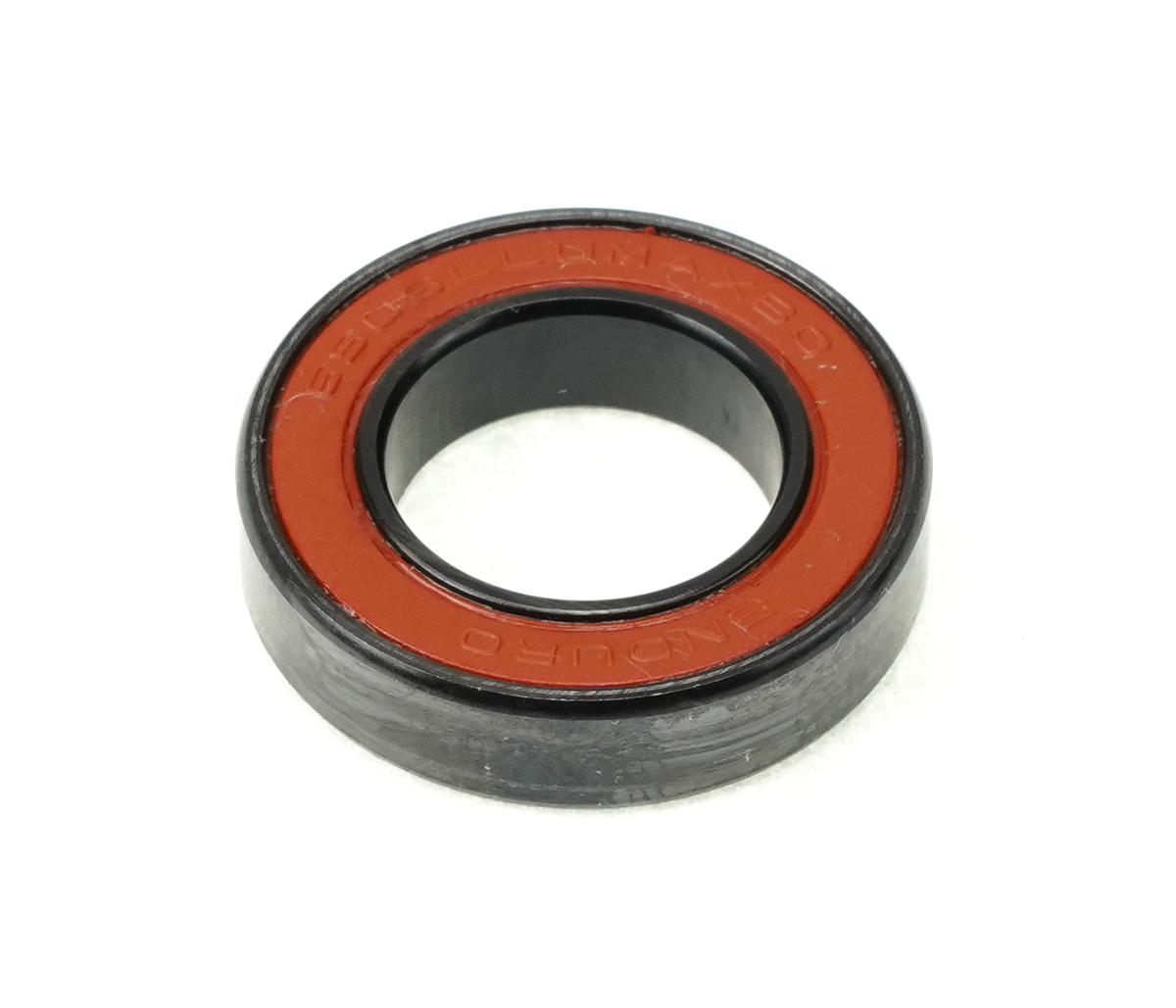

Enduro Max Radial Bearing 6903 17 x 30 x 7

Enduro Max Radial Bearing 6903 17 x 30 x 7

Regular price $18.00 NZD
Regular price $17.00 NZD Sale price $18.00 NZD
Rouleur Price Sold out
Taxes included. Shipping calculated at checkout.
Variant

In stock

698 LLU MAX BO - MAX-Design, radial suspension bearing - 8mm x 19mm x 6mm -

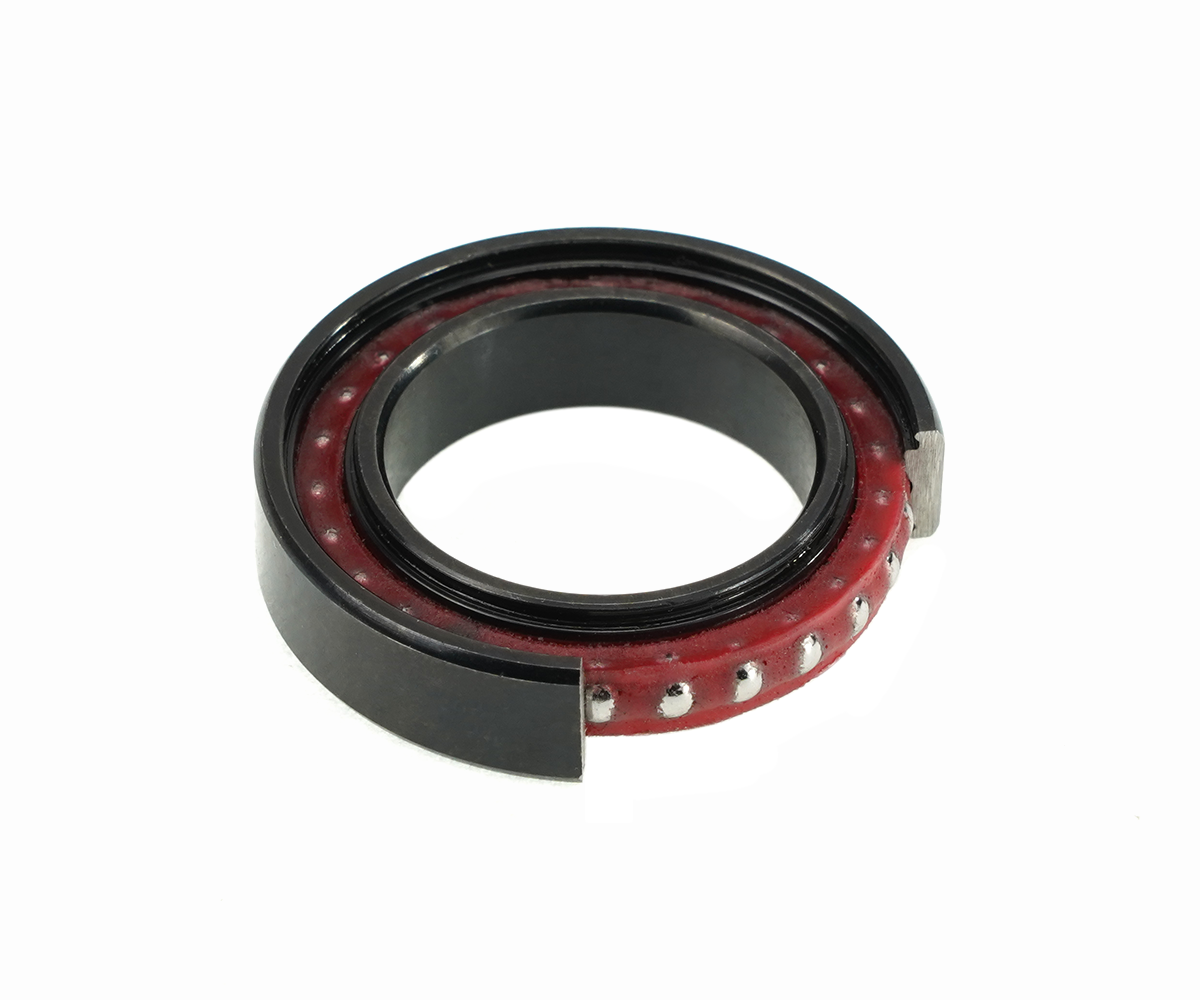

Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings provide greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This MAX-type, Black-Oxide, ABEC-3 bearing features deep-groove design races, with Grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside and Black-Oxide/Magnetite coating provides an extra level of corrosion resistance and extended worry-free performance.

This bearing has been used as a suspension pivot bearing by a number of bicycle brands including Ibis and Orbea.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Static load - 355lbf / 1.58kN
Weight - 7.12g
