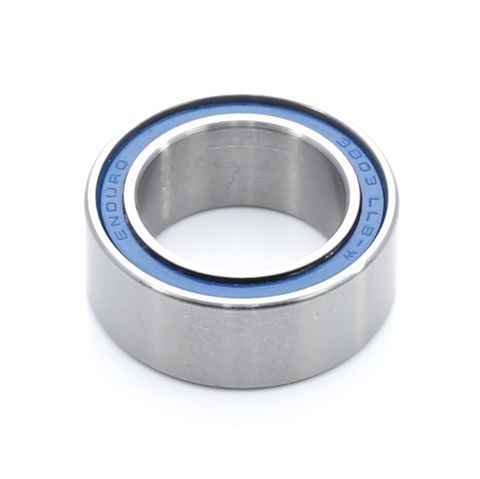

Enduro Double Row Bearing 3803 17 x 26 x 10

3803 LLB W - Extra-Wide, Double-Row, Radial Bearing ) - 17mm 26mm x 10mm -

ABEC3

Extra-Wide, Double-Row, ABEC-3, Radial Bearing with 52100 high-Carbon Chromium alloy races paired with grade 10 Balls. This bearing is used by Industry Nine in their rear hubs, and by Trek and Niner bike as a suspension pivot. The extra-wide double-row design greatly reduces flex in the axle of the rear hub or suspension linkage, while precisely filling the same space as two 6803 single-row bearings. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls, LLB seals and 90% fill with high pressure water proof grease to withstand daily abuse of use and the elements.

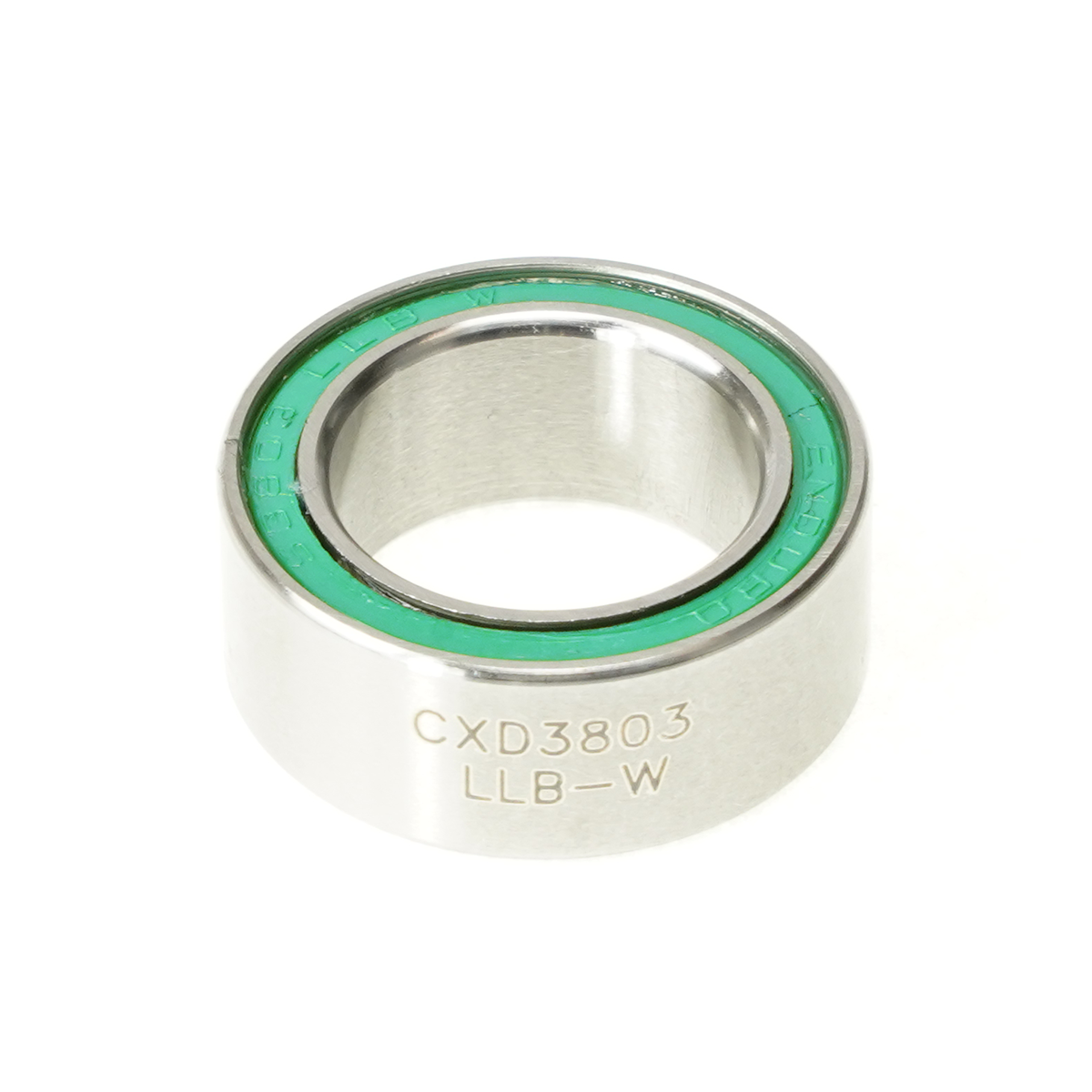

Carmic Hybrid

This extra-wide, double-row, ABEC-5, Ceramic-hybrid bearing features 52100 High-Carbon Chromium alloy races paired with grade 5 Silicon-Nitride Ceramic Balls with 90% fill, high-pressure, water-proof grease. Si3N4 ceramic balls reduce bearing wear and increase bearing life by eliminating steel on steel contact within the bearing. This bearing size is used by Industry Nine in their rear hubs, and by Trek and Niner bikes as a suspension pivot. The extra-wide double-row design greatly reduces flex in the axle of the rear hub or suspension linkage, while precisely filling the same spaces two 6803 single-row bearings.

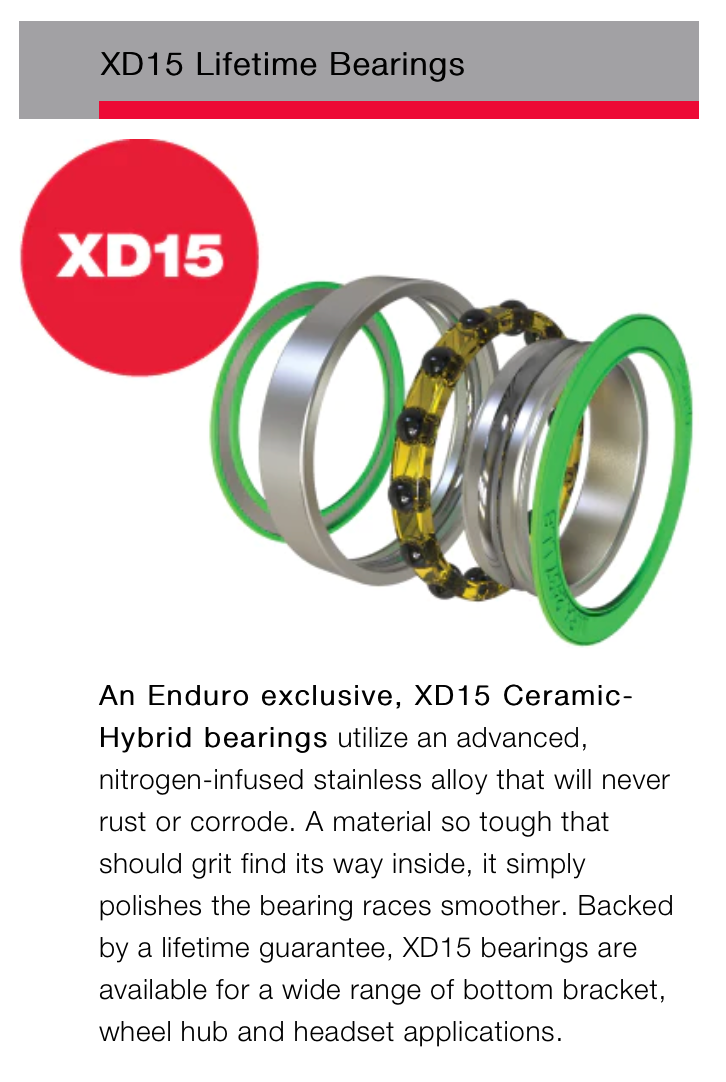

XD-15

The ultimate upgrade
An Enduro Bearings exclusive, our XD-15 Ceramic-Hybrid bearings combine corrosion-proof, cryogenically treated nitrogen steel races with Silicon Nitride Grade 3 ceramic balls in a proprietary process that results in the ultimate high performance bearing setup. The deep-groove design raceways allow for maximum sized Grade 3 Silicon Nitride ceramic balls for for increased contact area and improved performance and longevity. Dual-lip labyrinth (LLB) seals protect from the elements, and contain the 90% fill Kluber NBU52 grease that runs smoother with time and is highly resistant to being washed out.

The most impressive feature of XD-15 ceramic-hybrid bearings is, unlike other bearings, they only get better with time and use. As the bearings wear-in, the super-hard ceramic balls actually make the XD-15 races even smoother. So, when compared to other ceramic-hybrid bearings on the market that claim speed and power advantages on day one, Enduro XD-15 bearings not only provide the same initial advantages on day one, but will become faster and smoother with time and use, while the other ceramic-hybrid options will only get slower. We are so confident in the performance of XD-15 Ceramic-Hybrid bearings that we offer an unlimited lifetime bearing and race warranty.

This bearing is used primarily by Industry Nine in their rear hubs. The extra-wide double-row design greatly reduces flex in the axle of the rear hub, while precisely filling the same space as two 6803 single-row bearings.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Static load - 616lbf / 2.74kN
Weight - 15.5g
