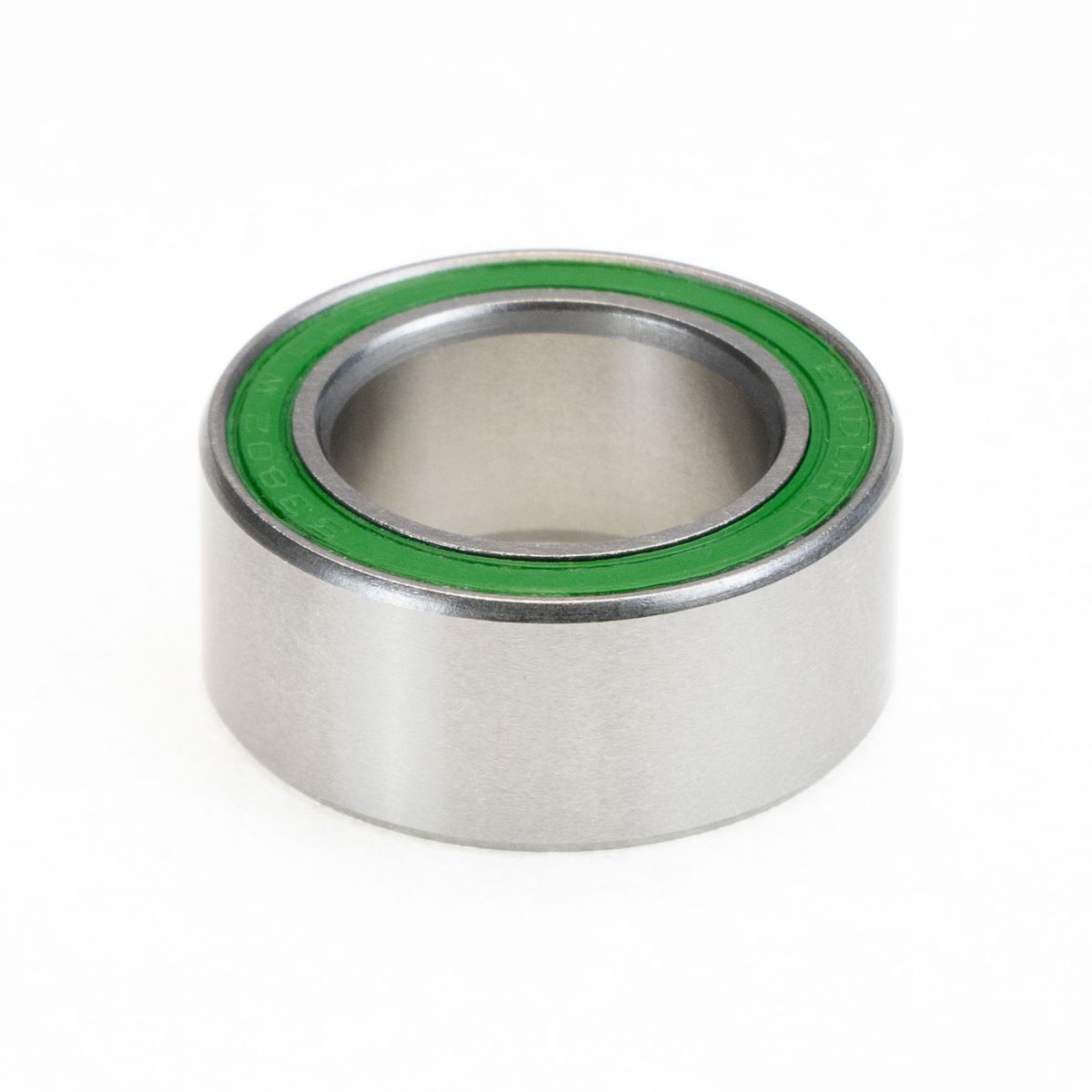

Enduro Double Row Bearing 3802W 15 x 24 x 10

3802 W LLB - ABEC-3, Double-Row, Radial Bearing (C3 Clearance) - 15mm x 24mm x 10mm -

ABEC3

Extra-Wide, Double-Row, ABEC-3, Radial Bearing with 52100 High-Carbon Chromium alloy races paired with grade 10 Balls. This bearing is used primarily by White Industries in their rear hubs. The extra-wide double-row design greatly reduces flex in the axle of the rear hub, while precisely filling the same space as two 6802 single-row bearings. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls, LLB seals and 90% fill with high pressure water proof grease to withstand daily abuse of use and the elements.

XD-15 The ultimate upgrade

An Enduro Bearings exclusive, our XD-15 Ceramic-Hybrid bearings combine corrosion-proof, cryogenically treated nitrogen steel races with Silicon Nitride Grade 3 ceramic balls in a proprietary process that results in the ultimate high performance bearing setup. The deep-groove design raceways allow for maximum sized Grade 3 Silicon Nitride ceramic balls for for increased contact area and improved performance and longevity. Dual-lip labyrinth (LLB) seals protect from the elements, and contain the 90% fill Kluber NBU52 grease that runs smoother with time and is highly resistant to being washed out.

The most impressive feature of XD-15 ceramic-hybrid bearings is, unlike other bearings, they only get better with time and use. As the bearings wear-in, the super-hard ceramic balls actually make the XD-15 races even smoother. So, when compared to other ceramic-hybrid bearings on the market that claim speed and power advantages on day one, Enduro XD-15 bearings not only provide the same initial advantages on day one, but will become faster and smoother with time and use, while the other ceramic-hybrid options will only get slower. We are so confident in the performance of XD-15 Ceramic-Hybrid bearings that we offer an unlimited lifetime bearing and race warranty.

This bearing is used primarily by White Industries in their rear hubs. The extra-wide double-row design greatly reduces flex in the axle of the rear hub, while precisely filling the same space as two 6802 single-row bearings.

The Enduro line of bearings are available in High-Carbon Chromium Steel, 440C Stainless Steel, Ceramic-Hybrid and XD-15 with Ceramic or Stainless Balls. Our bearings are always engineered with deep groove races to accommodate the largest balls possible. All of our standard bearings feature dual-lip seals that ride in a micro groove creating a full labyrinth to provide ultimate protection against the elements.

Static load - 564lbf / 2.51kN
Weight - 10.5g
