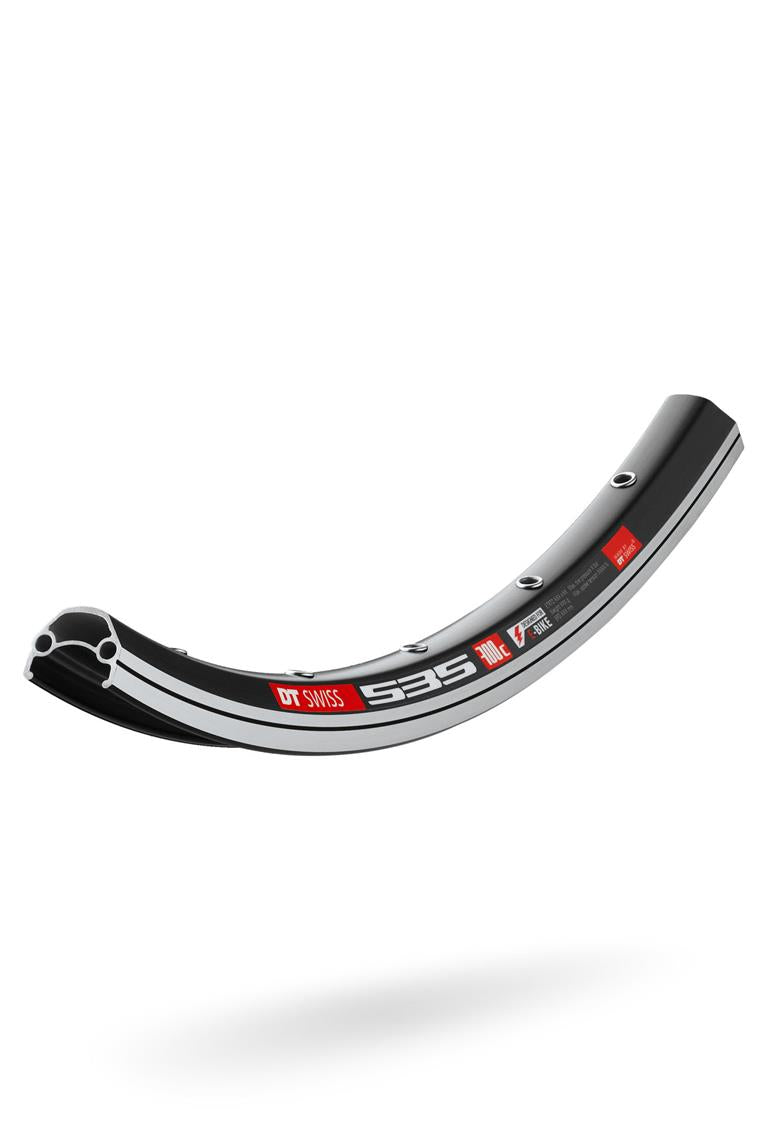

DT SWISS - TK 535 RIM

The extra power of e-Bikes calls for extra strong parts. E-Bike rims like the 535 are single eyeletted and feature a wide, reinforced profile. This ensures they are long-lasting and perfectly compatible with higher volume tyres.

  • Weight: 600 grams (Tolerance of the net weight indication +/- 5%)
  • Recommended system weight max.: 140kg
  • ASTM classification: 2
  • Material: Aluminium
  • Rim joint: Pin joint
  • Tyre interface: Hooked / Crotchet tube type
  • Brake interface: Non disc
  • Rim diameter: 29" / 700C
  • Reference diameter ERD: 603 mm

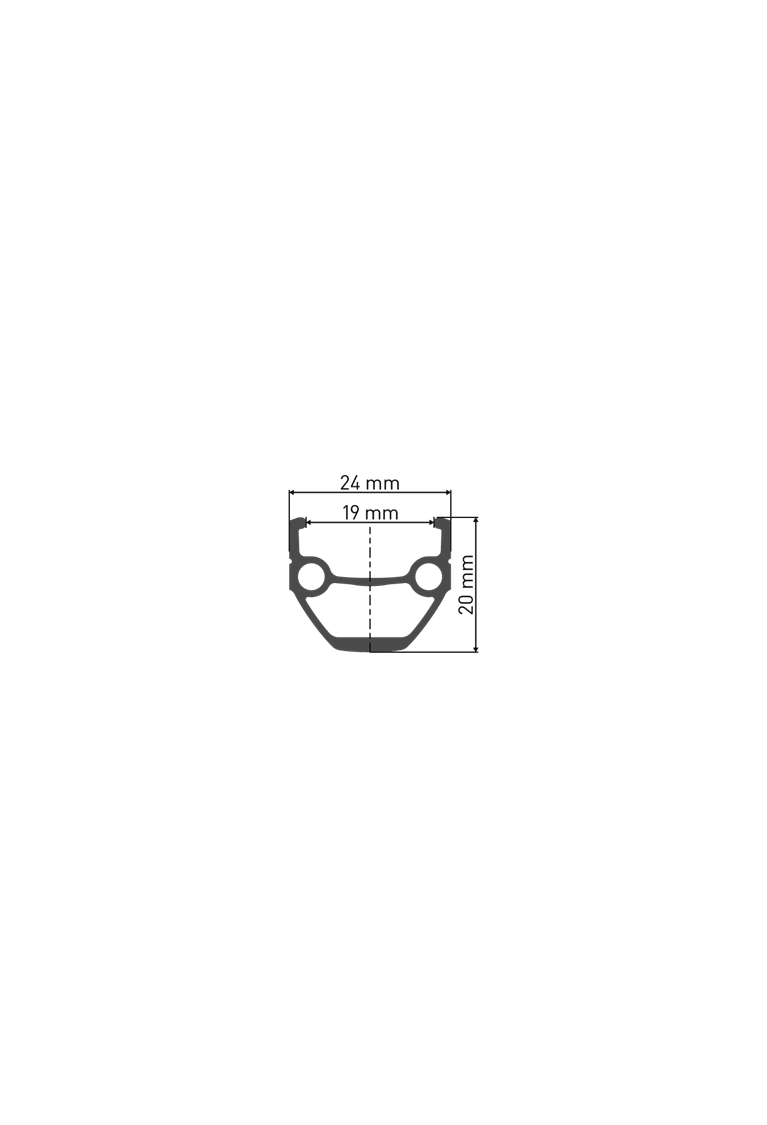

  • Inner width: 19mm
  • Outer width: 24mm
  • Rim height: 20mm
  • Spoke holes: 32 / 36
  • Spoke bore rim Silver eyelet
  • Valve hole: Schrader (plus Presta-adapter)
