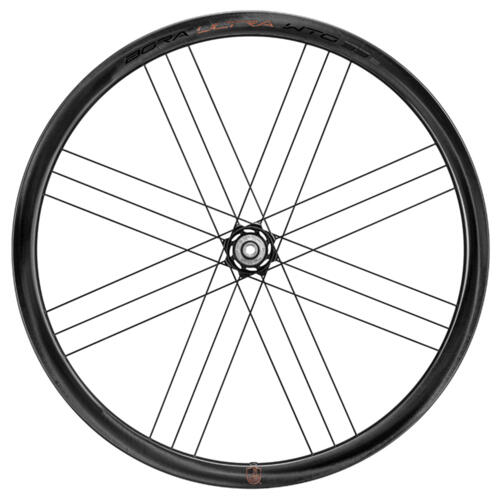

Campagnolo Bora Ultra WTO DB N3W Wheelset

  • Sale
  • Regular price $5,999.00
Tax included. Shipping calculated at checkout.


BORA ULTRA WTO 45 DISC BRAKE



Now even lighter, thanks in part to its Hand Made Ultra-Light Carbon (H.U.L.C.) construction, the Bora Ultra WTO has slimmer Aero Elliptical spokes and hidden nipples to help slice through the air. Campagnolo’s beautifully moulded carbon hub body is securely bonded to a light aluminium hub flange, and integrated radial spoke seats ensure perfect alignment. A uniquely stunning C-LUX finish and new, subtle Bora Ultra graphics ensure the new wheels have the show to match their go.



Campagnolo’s CULT ceramic bearings spin effortlessly within both the front aerodynamic carbon body and the rear aluminium shell of the disc hubs. The rear oversized 36 tooth ratchet system can be driven by N3W, XDR or HG freehub bodies.



The 2-Way Fit rims are ready for immediate tubeless use without rim tape, designed for tyre widths from 23mm, they’re aerodynamically optimised for 25mm tyres.



SPECIFICATIONS



SPOKES

Spokes: 24 Aero Elliptical, straight pull, double-butted

Spoke pattern G3

Nipples Aluminium Aero Mo-Mag, self-locking, internal



VERSIONS AND WEIGHTS

Campagnolo N3W FW body

HG FW body

XDR FW body





COMPATIBILITY

Campagnolo sprocket set 11/12/13

Shimano sprocket set 10/11 - SRAM 10/11

SRAM 12 sprocket set



HUB

Hub type: Bora Ultra, carbon body

Rear hub type: Aluminium body, 36 tooth ratchet freehub

Hub width: 100-142mm

Axle type: 12mm aluminium thru axle

Bearings: CULT ceramic, cup and cone

Brake interface: AFS disc

Freehub compatibility: N3W, XDR, HG



RIM

ASTM classification: 1

Material: H.U.L.C UD high-strength carbon fibre

Finish: C-LUX

Tyre interface: 2-Way Fit

Tyre compatibility: Tubeless, tubeless-ready, clincher

Recommended tyre size: 700c, from 23mm

Rim height: 45mm / 60mm

Internal width: 19mm

External width: 26.1mm

Decals: Water transfer DCS (Dark, copper shaded)



TYRES

Tubeless

Tubeless-ready

Clincher



ASSEMBLY

The Bora™ Ultra WTO™ Disc Brake wheel is entirely hand-assembled by a specialised Campagnolo® technician and is 100% checked by electronic instrumentation. This procedure ensures that every single Campagnolo® wheel offers maximum performance and reliability



COMES WITH

Aero Mo-Mag nipple maintenance kit

Tubeless valves

AFS lockrings

Campagnolo wheel bags

Campagnolo accessories bag

Tyre levers

Campagnolo N3W Z11 adapter (on Campy freehub version).



2-WAY FIT
