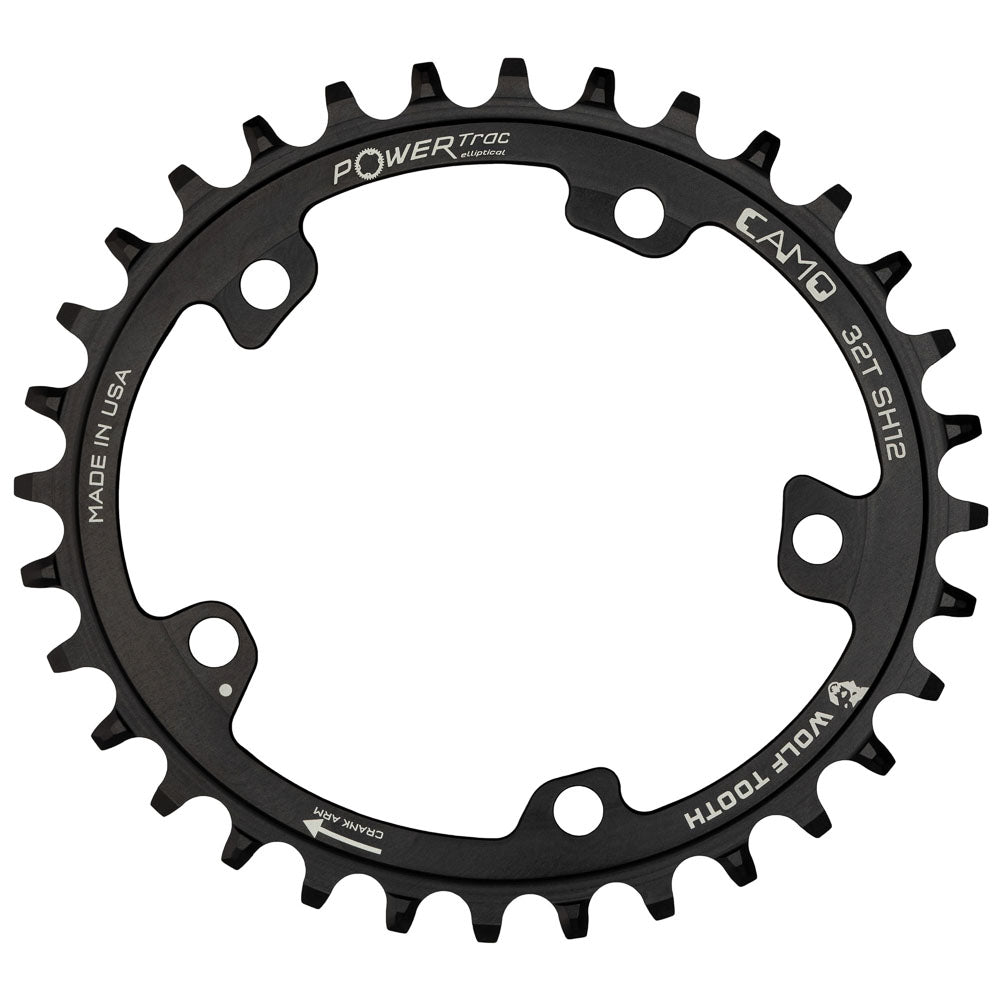

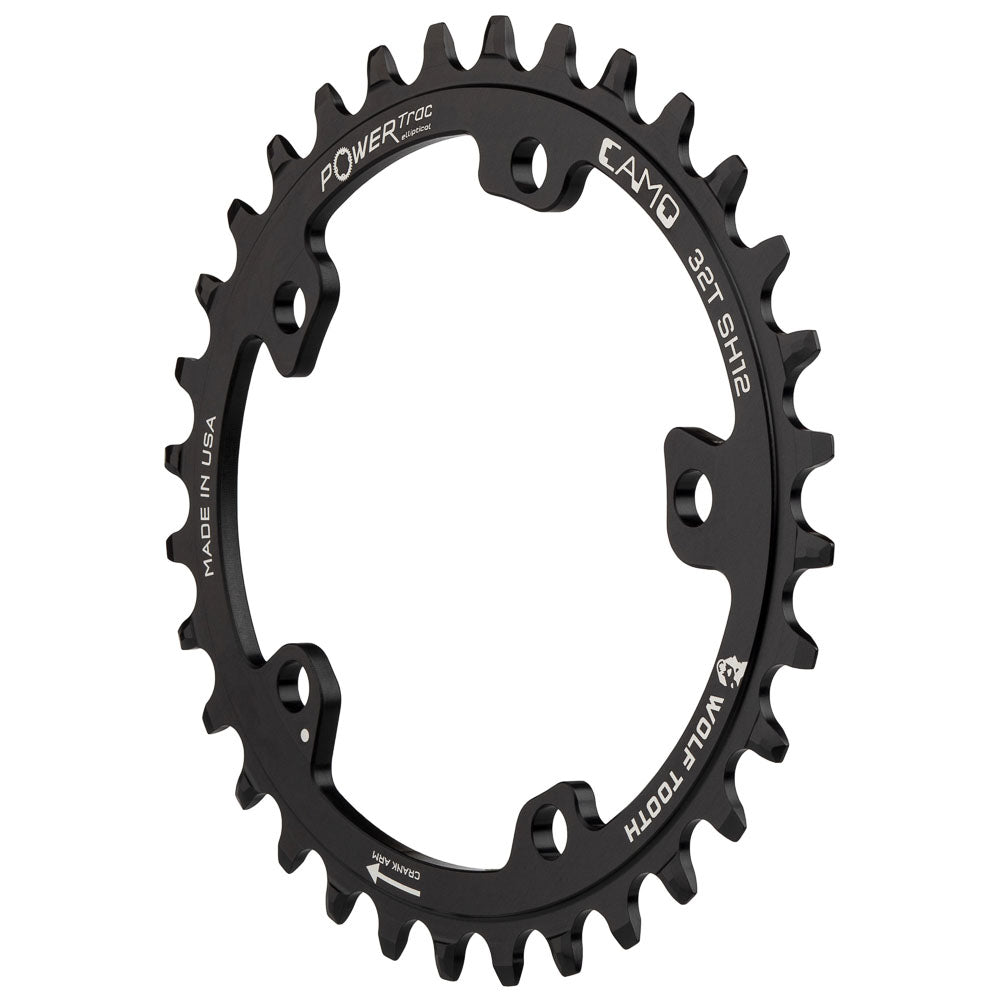

CAMO OVAL DROP-STOP CHAINRING - SHMANO HG+

We created CAMO (Chainline And Material Optimization) for direct mount style cranksets. Easily swap between chainrings on a whim and enjoy a variable selection of chainring options, all compatible with your selected CAMO spider or BashSpider. With no nuts or spacers involved, swapping chainrings takes less time than brewing a cup of your favorite beverage.
NOTE - This is an elliptical CAMO chainring only. A CAMO Spider is required to complete this system.
KEY ADVANTAGES

Perfect chainline for wear and shifting precision
Optimal material usage for weight, stiffness, and wear
Spend less for chainring swapping by buying only the chainring, compared to chainrings that have an integrated spider
Swapping chainrings is very fast with only five small bolts and no nuts
Availability, as Wolf Tooth has many direct mount options: round or oval, stainless or aluminum, for several cranksets.
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
CAMO mounting bolts are included with each spider.

POWERTRAC ELLIPTICAL
More power? Check. Better traction? Definitely. Less shifting? Yup. Funky uneven pedal stroke? Not with Wolf Tooth’s PowerTrac Elliptical™ (PTE) chainrings. Our proprietary design means a slightly less ovalized ring (10%) with less aggressive timing (112°) than competitors’ versions; any change to your pedal stroke is unnoticeable for most riders, but they still provide the power and traction benefits inherent to oval chainrings.
It’s like having two chainrings in one! With PowerTrac Elliptical rings, the larger-diameter section of the ring engages with the chain at the optimal point on the downstroke, or “Power Zone” – between 1-5 and 7-11 on a clock face – to take advantage of your body’s natural biomechanical power. For example, during this section a PTE 34t ring is equivalent to a 36t round ring. Similarly, in the “Recovery Zone” (11-1 and 5-7) the smaller section on the PTE ring engages, maximizing efficiency in the weakest part of the pedal stroke; here the PTE 34t ring is equivalent to a 32t round ring.
Additionally, the above provides a smoother, more efficient pedal rotation, which means better traction. Steadier torque on the rear wheel means less spinning out in the “Power Zone,” while pedaling is easier during the “Recovery Zone,” so you maintain momentum.
COMPATIBILITY

This is a chainring for Wolf Tooth CAMO spiders. It is NOT compatible with any other chainring mountings.
CAMO spiders come with Stainless Steel Bolts.
Chainline - varies by which spider you choose
Drop-Stop ST is for use with Shimano 12-speed Hyperglide+ and 12spd KMC chains only.

DROP-STOP TECHNOLOGY
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile delivers ultimate chain retention and mud shedding ability. See below for Drop-Stop ST compatibility.

RECOMMENDATIONS / INSTALLATION NOTES

We recommend the use of a clutch style rear derailleur for the best chain security.
If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur. Without these precautions, you may experience chaindrops and/or chainsuck.
You will be able to access all bolts without removing the spider
Line up the little dot on the ring with the dot on the spider. Don't worry, you cannot install the ring in the wrong rotational orientation.
Be sure the bosses on the spider "plug in" to the chainring.
Torque bolts only to 4-5 Nm and use blue Loctite threadlocker


SPECIFICATIONS
Weight: 30t • 32g | 32t • 38g | 34t • 46g
Material: 7075-T6 aluminum
Made in USA
