Focus

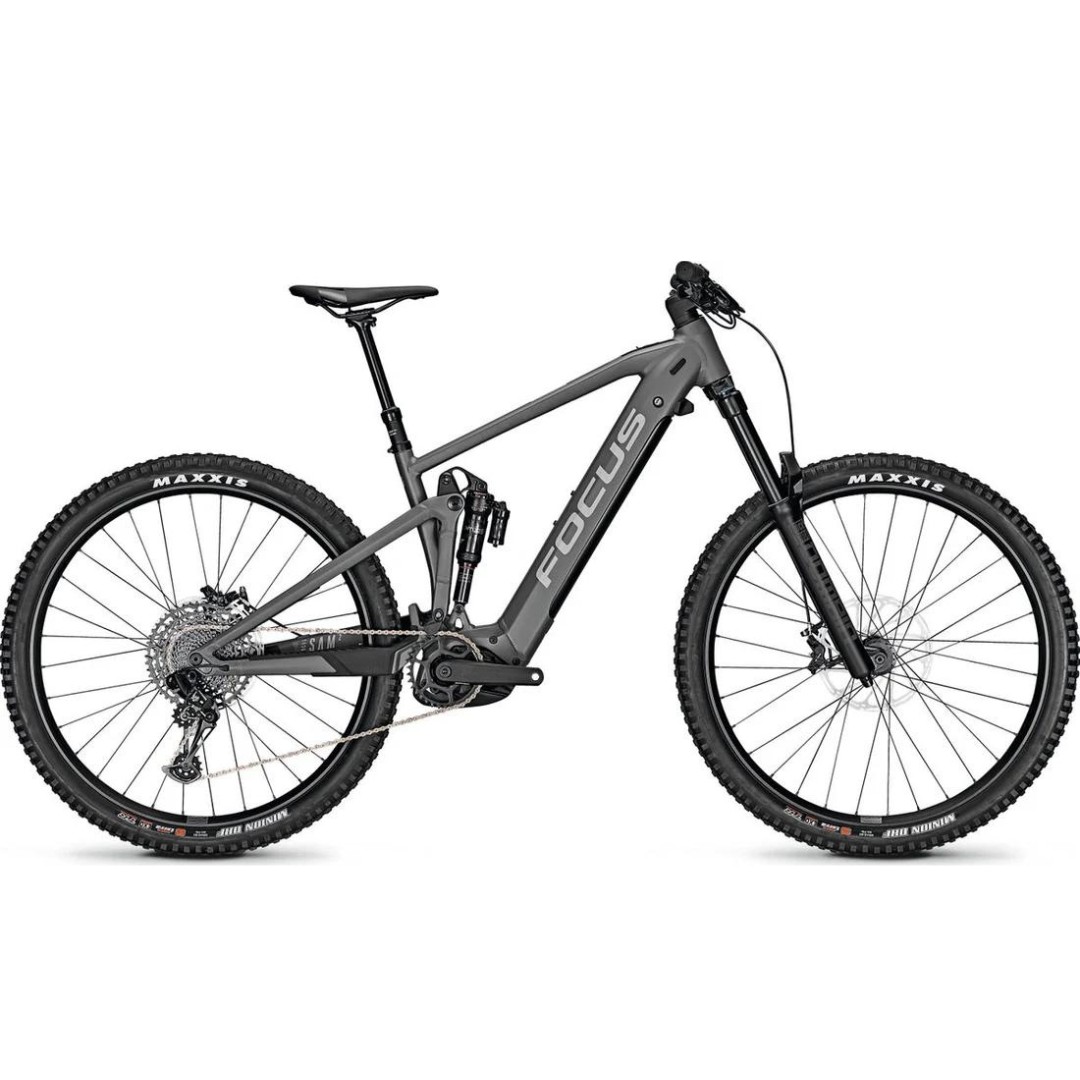

2022 Focus SAM2 6.7 BOSCH 625WH Slate Grey
2022 Focus SAM2 6.7 BOSCH 625WH Slate Grey
Low stock
Couldn't load pickup availability
2022 FOCUS SAM2 6.7 BOSCH 625WH
POWERFUL AND AGILE BOSCH PERFORMANCE CX E-DRIVE WITH PURION DISPLAY AND INTEGRATED, REMOVABLE 625 WH BATTERY
170 MM TRAVEL WITH F.O.L.D. KINEMATICS: ROCKSHOX DOMAIN SUSPENSION FORK WITH 38 MM STANCHION AND DELUXE REAR SHOCK
FULLY INTEGRATED C.I.S. CABLE ROUTING WITH TRAIL-READY SRAM NX EAGLE SHIFTING AND 220 MM ROTORS FOR SAFE BRAKING
DESIGNED FOR DOWN
SUPER POWERFUL AND DYNAMIC E-MOTOR
The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 32 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the SAM² rides agile and nimble. In eMTB mode, the motor support adjusts automatically to your riding power. Thanks to the integrated, removable 625 Wh battery, you can ride all your trails again and again.
OPTIMAL SUSPENSION PERFORMANCE IN ANY SITUATION
Our F.O.L.D. chassis has been specially designed to meet the increased demands placed on e-MTBs. This means that we can also guarantee the perfect mix for the e-Enduro FOCUS SAM²: F.O.L.D. is extremely sensitive while being progressive enough to prevent a harsh bottom out.
DESIGNED FOR DOWN
A modern, downhill-oriented geometry, 170 mm travel and fast 29" wheels make the FOCUS SAM² ready for the roughest trails. The downhill-oriented focus is enhanced by suspension forks with 38 mm stanchions. Additionally, the fully integrated C.I.S. cable routing ensures a clean cockpit and thanks to the FOCUS Flip Chip you have the option to also ride 27,5" wheels and super short chainstays (430 mm).
FRAME MATERIAL Aluminium
FRAME 7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. kinematics, 148x12 mm thru axle, internal cable routing, post mount 203 mm
FORK Rock Shox Domain R 29, 110x15 mm, 44 mm rake
TRAVEL FORK 170 mm
SHOCK Rock Shox Deluxe Select, 230/65 mm, hardware: 25.0 x 8.0 mm
MOTOR Bosch Performance CX Gen4, 85 Nm, 250 W
BATTERY WATT-HOURS 625 Wh
BATTERY AMPERE HOURS 16,7 Ah
DISPLAY Bosch Purion
SHIFTER SRAM SX Eagle, 12-speed
REAR DERAILLEUR SRAM NX Eagle, 12-speed
SPROCKET SRAM PG-1230 Eagle, 12-speed
CHAIN SRAM SX Eagle, 12-speed
CRANKSET Samox EC40 ISIS
BOTTOM BRACKET Integrated in Drive Unit
TRANSMISSION OF DRIVE Front: 34T, Rear: 11-50T
HANDLEBAR Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
STEM FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
HEADSET ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated
SADDLE FOCUS Trail SL
SEATPOST Post Moderne dropper post PM-MT171, 31.6 mm
BRAKES SRAM GUIDE T
BRAKE LEVER SRAM GUIDE T
BRAKE Disc
RIMS RODI TRYP30, 30-622
REAR HUB Novatec D462, 12x148 mm
FRONT HUB Novatec D041, 15x110 mm thru axle
TIRES Maxxis Minion DHF, EXO, 63-622
GEARS 12
BIKE WEIGHT INCL. BATTERY 25.30 kg
SIZE S, M, L, XL
SEATPOST TYPE Dropper seatpost
Speed limit for e-support in New Zealand is 32 km/h. Our e-bikes are adjusted accordingly.
* Subject to technical modification without notice. Errors and omissions excepted.
** Weight in size M, of standard specification and without pedals.
