2021 Focus PARALANE 8.9 GC OLIVE/ORANGE Apex 1x
2021 Focus PARALANE 8.9 GC OLIVE/ORANGE Apex 1x
Regular price
$2,499.00 NZD
Regular price
$4,299.00 NZD
Sale price
$2,499.00 NZD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Low stock
Couldn't load pickup availability
PARALANE 8.9 GC FEATURES
LIGHTWEIGHT ENDURANCE CARBON FRAME WITH COMFORT IMPROVING AREAS (C.I.A.), CURANA MUDGUARDS FOR CLEVER INSTALLATION AND R.A.T. FLOATING AXLE
SIMPLE AND RELIABLE IN EXTREME SITUATIONS: SRAM APEX 1X11 GEARSHIFT
RELIABLE, LIGHTWEIGHT MAVIC AKSIUM WHEELSET
TAKES YOU FURTHER
-
GREATER TYRE CLEARANCE FOR MORE FREEDOM
The maximum tyre clearance of up to 35 mm makes it possible for you to ride on all paths, regardless of whether they are asphalt roads or gravel tracks.
-
INCLUDES MUDGUARDS THAT CAN BE MOUNTED QUICKLY
Thanks to our sophisticated solutions, you can mount mudguards quickly and easily. The best thing is that mudguards are included with every PARALANE.
-
REDUCED FATIGUE THANKS TO INCREASED COMFORT
The endurance geometry, which has been designed for long rides, and the comfort-oriented frame design guarantee longer-lasting riding fun.

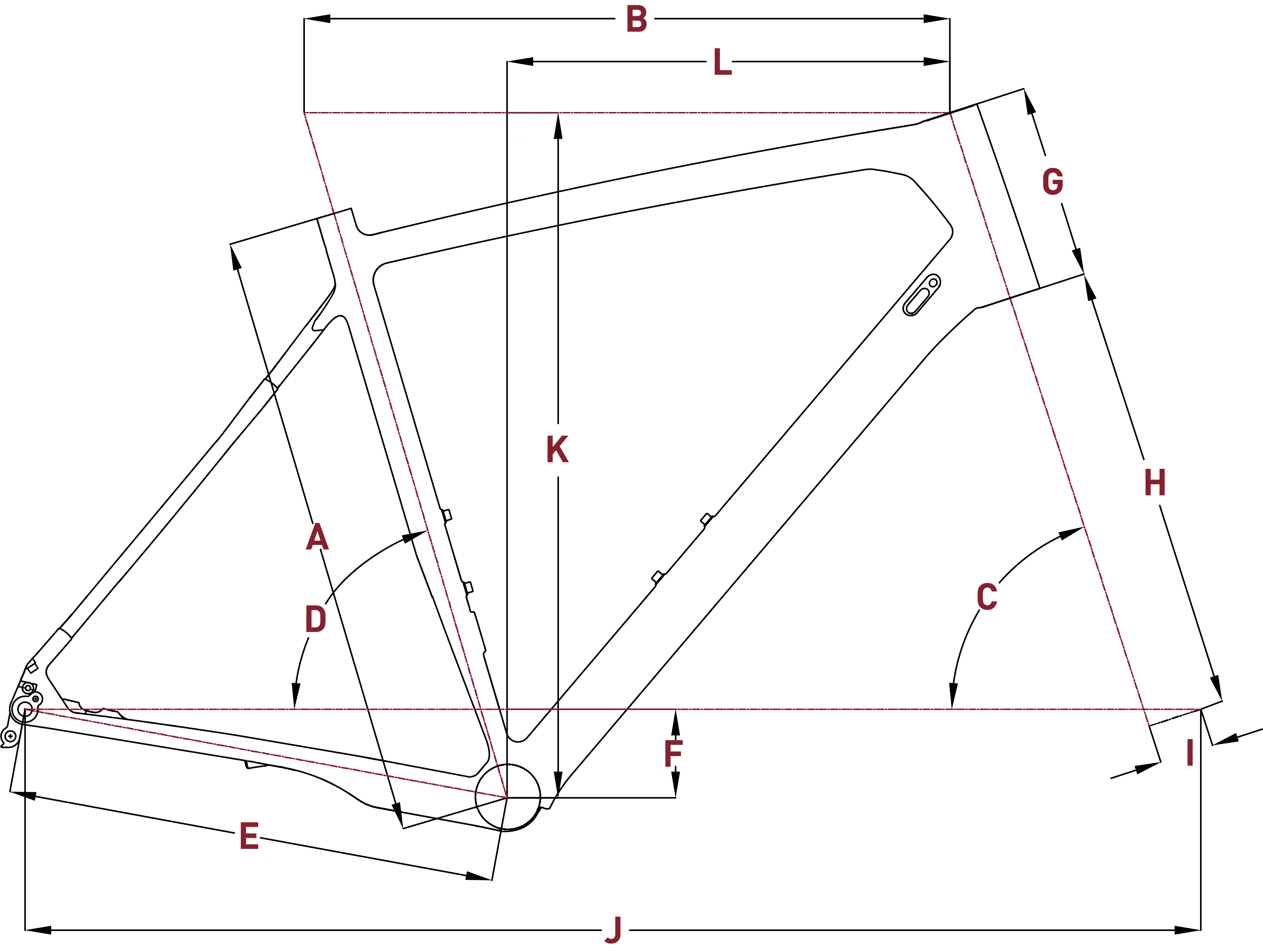

GEOMETRY
| XS | S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|---|
| SIZE | 48 | 51 | 54 | 56 | 58 | 61 | |
| SIZE (MM) | 455 | 485 | 515 | 535 | 555 | ||
| HANDLEBAR WIDTH | 400 | 400 | 420 | 420 | 440 | ||
| STEM LENGTH (MM) | 90 | 90 | 100 | 110 | 120 | ||
| CRANKARM LENGTH | 170 | 172,5 | 172,5 | 172,5 | 175 | ||
| A | SEAT TUBE LENGTH | ||||||
| B | EFFECTIVE TOP TUBE (MM) | 498 | 526 | 547 | 560 | 577 | |
| C | HEAD TUBE ANGLE (°) | 71 | 71.5 | 72 | 72 | 72.5 | |
| D | EFFECTIVE SEAT TUBE ANGLE (°) | 75.5 | 74.5 | 73.5 | 73.5 | 73.5 | |
| E | CHAINSTAY LENGTH (MM) | 415 | 415 | 415 | 415 | 415 | |
| F | BOTTOM BRACKET DROP (MM) | 75 | 75 | 75 | 75 | 75 | |
| G | HEAD TUBE LENGTH (MM) | 120 | 150 | 165 | 180 | 200 | |
| H | FORK CONSTRUCTION HEIGHT (MM) | 383 | 383 | 383 | 383 | 383 | |
| I | PRE-RAKED FORK (MM) | 46 | 46 | 46 | 46 | 46 | |
| J | WHEELBASE LENGTH (MM) | 974 | 990 | 996 | 1010 | 1021 | |
| K | STACK (MM) | 534 | 564 | 580 | 594 | 615 | |
| L | REACH (MM) | 359 | 369 | 375 | 384 | 394 |
SPECIFICATION
FRAME MATERIAL
Carbon
FRAME
Carbon SL, disc, Pressfit 86 BB, 142x12 mm thru axle, R.A.T Evo technology, flat mount 140 mm, internal brake & gear cable routing,7005 hydroformed aluminum, disc, BSA BB, 142x12 mm thru axle, R.A.T Evo technology, flat mount 140 mm, internal brake & gear cable routing
FORK
Carbon, disc, 100x12 mm R.A.T thru axle, R.A.T Evo Technology, flat mount 160/160 mm, internal cable routing
SHIFTER
SRAM Apex 1x
REAR DERAILLEUR
SRAM Apex
SPROCKET
SRAM PG-1130
CHAIN
SRAM PC-1130
CRANKSET
SRAM S350, 44T
BOTTOM BRACKET
Shimano Pressfit Road BB86
TRANSMISSION OF DRIVE
front: 44, rear: 11-36
HANDLEBAR
BBB Basic, aluminium, drop: 125 mm, reach: 70mm
GRIPS
FOCUS Bartape SL
STEM
BBB Basic, aluminium, 31.8mm, +/- 7 degree
HEADSET
1-1/8", tapered, IH 50/33
SADDLE
Prologo K3,Velo VL-1489 Steel Rail
SEATPOST
BBB Basic, Aluminium, 25,4mm, 350mm, set-back 20mm,BBB CPX Plus, Carbon, 25,4mm, 350mm, set-back: 20mm
BRAKES
SRAM Apex hydraulic disc, 160 / 160 mm
BRAKE LEVER
SRAM Apex
BRAKE
Disc
WHEELSET
Mavic Aksium Disc, disc center-lock, aluminium, 100x12/142x12 mm, 24/24 spokes, 17 mm inner rim width
TIRES
Continental Speedking CX, 700 x 32C, Folding,Continental Ultra Sport II, 700 x 28C, Folding
FENDER
Curana C-Lite
GEARS
11,22
SIZE
48,61,56,51,58,54
* Subject to technical modification without notice. Errors and omissions excepted.** Weight in size M, of standard specification and without pedals.
